Siemens Touch Panel TP1500

Application Fields

HMI for tasks with medium performance requirements, used on PROFINET networks, especially with SIMATIC S7-1200 controllers and other controllers. The TP1500 meets high requirements in terms of screen size and resolution.

Advantages

High resolution and suitable screen size at an attractive price.

Mountings compatible with same-sized interfaces and multi-interface products

Proven SIMATIC quality

Available worldwide in 32 configurable languages (5 of which can be switched online)

Design and functionality

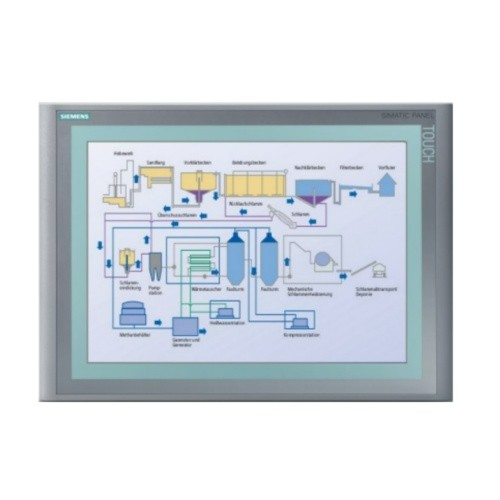

The TP1500 Basic color is equipped with a 15-inch TFT display available in 256 colors. 1024 x 768 pixel resolution allows complex operating screens to be displayed at the right size including color representation. The interface can be operated by means of a resistive analog touch screen. tP1500 Basic color is the ideal HMI component for medium to high level S7-1200 controller systems. It can be configured using WinCC flexible Compact or the HMI configuration software of the STEP7 Basic Engineering Configuration Software for S7-1200. The TP1500 provides basic HMI functionality (alarms, trend curves, recipes) for 500 variables. An entry-level package is also available, which, in addition to the WinCC flexible Compact configuration software, provides the SIMATIC HMI Manual Collection on DVD, an Ethernet cable, and a certificate for one year's software upgrade service, all at a significant price advantag

West

Technical data

Display: 15-inch TFT display, 256 colors

Resolution: 1024 x 768 pixels

Controls: Touch screen (analog/resistive)

User memory: 1 MB

Interfaces: 1 x RJ 45 Ethernet

Protection: IP 65 NEMA 4x front panel, if installed rear panel IP 20

Mounting opening: 367 x 289 mm (W x H)

Front panel: 400 x 310 mm (W x H)

Depth: 60 mm

Configuration software: WinCC flexible compact version
