HMI for tasks in the medium performance range, depending on the selected version for PROFIBUS or PROFINET networks; can be used in combination with SIMATIC S7-1200 controllers or other controllers. The KTP1000 fulfills higher requirements in terms of touch panel size and resolution.

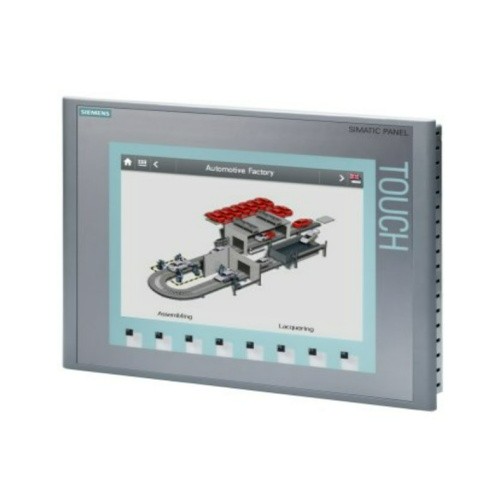

Siemens Touch Panel KTP1000
Fields of application
HMI for tasks in the medium performance range, depending on the selected version for PROFIBUS or PROFINET networks; can be used in combination with SIMATIC S7-1200 controllers or other controllers. The KTP1000 fulfills higher requirements in terms of touch panel size and resolution.
Advantages
High resolution and suitable screen size at an attractive price.
Operational flexibility due to key combination and touch screen operation
Mountings compatible with same-sized interfaces and multi-screen products
Proven SIMATIC quality
Available worldwide in 32 configurable languages (5 of which can be switched online)
Design and functionality
The TP1000 Basic color is equipped with a 10.4-inch TFT display available in 256 colors. 640 x 480 pixel resolution allows the display of complex operating screens at the right size including color representation, the panel can be operated with a resistive analog touch screen, and is equipped with 8 freely configurable function keys that provide haptic feedback when actuated. The KTP1000 Basic color is the ideal HMI component for medium to high level S7-1200 controller systems. It can be configured using WinCC flexible Compact or the HMI configuration software of the STEP7 Basic Engineering Configuration Software for S7-1200. The KTP1000 provides basic HMI functionality (alarms, trend curves, recipes) for 500 variables. We can also offer entry-level packages that, in addition to the WinCC flexible Compact configuration software unit, provide a compilation of SIMATIC HMI manuals on DVD, as well as an Ethernet cable, MPI cables, and certificates for one year of software upgrades, all at a significant price advantage.
Technical data
Display : 10.4-inch TFT display, 256 colors
Resolution: 640 x 480 pixels
Controls: resistive analog touch screen with 8 freely configurable tactile feedback keys
User memory: 1MB
Interfaces
1 x RS 485 / RS 422 for PROFIBUS DP version
1 x RJ 45 Ethernet for PROFINET version
Protection class: IP 65 (front panel, if installed), rear panel IP 20
Mounting opening: 310 x 248 mm (W x H)
Front panel: 335 x 275 mm (W x H)
Device depth: 61 mm
Configuration software: WinCC flexible compact version
