Siemens Touch Panel KTP400

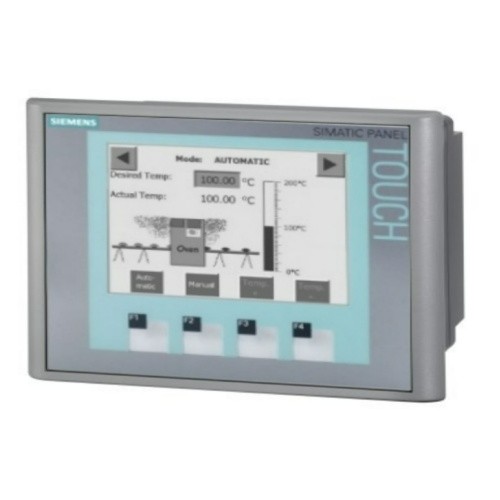

The Siemens Touch Panel KTP400 is equipped with a 3.8-inch STN display that provides 4 levels of gray scale. 320 x 240 pixel resolution allows the display of operational screens of low complexity in a suitable size. The panel can be operated as a resistive analog touch screen and is equipped with 4 freely configurable function keys that provide tactile feedback during actuation.

The KTP400 Basic mono is the ideal HMI component for small S7-1200 controller systems. It can be configured using WinCC flexible Compact or the HMI configuration software for the STEP7 Basic Engineering Configuration Software for S7-1200.The KTP400 can provide basic HMI functionality (alarms, trend curves, recipes) for 250 variables.

An entry-level package is also available, which, in addition to the WinCC flexible Compact configuration software, provides the SIMATIC HMI Manual Collection on DVD, an Ethernet cable, and a certificate for one year's software upgrades, all at a significant price advantage.

Areas of application

Panel for HMI tasks with limited complexity; on PROFINET networks; especially suitable for direct machine mounting in space-constrained conditions, in combination with SIMATIC S7-1200 controllers and other controllers.

Advantages

Basic HMI functionality

Basic panel at a low price

Compact and space-saving design

Available worldwide in 32 configurable languages (5 of which can be switched online)

Technical Data

Display: 3.8-inch STN display, 4-level gray scale

Resolution: 320 x 240 pixels

Controls: Resistive analog touchscreen with 4 freely configurable tactile feedback keys

User memory: 512 KB

Interfaces: 1 x RJ 45 Ethernet for PROFINET

Protection class: IP 65 NEMA 4x (front panel if installed), rear panel IP 20

Mounting opening: 122 x 98 mm (W x H)

Front panel: 140 x 116 mm (W x H)

Device depth: 40 mm

Configuration software: WinCC flexible compact version
