Siemens Keypad Panel KP8

SIMATIC HMI offers at a favorable price a compact keypad operator panel specifically designed for PROFINET environments. Eight larger, ergonomic keys are indicated by five different colors to form one unit. For the larger control panels, you can add additional devices without gaps and connect them electrically via an integrated Ethernet switch, creating a loop via 24 VDC. For the relevant applications, there is also a fail-safe version, the KP8F.

Areas of application

These robust key panels are designed for simple and straightforward machine operation. They can be used anywhere that HMI functions cannot be performed without keys and lamps, such as machine and factory consoles. The format of the keypads is optional so that they can also be installed in extensions to fully enclosed HMI devices.

Advantages

Save up to 90% of wiring time

Pushbuttons and fixtures have fewer digital input/output modules

No wiring errors as only one standard bus cable is connected

Integrated Ethernet switch for setting up bus and ring topologies

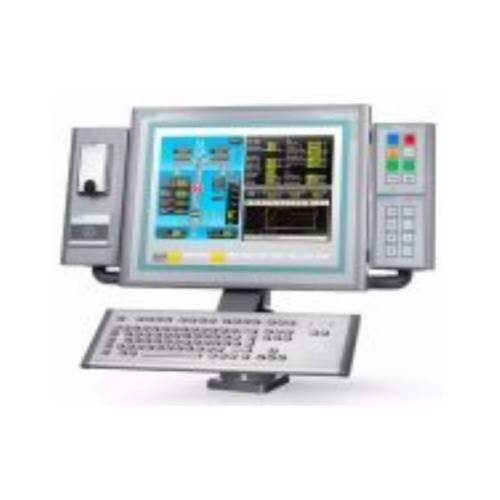

Can be mounted in an extension unit for fully enclosed HMI devices

Fail-safe version available

Design and functionality

The SIMATIC HMI KP8 can be supplied with eight large illuminated buttons, which can be easily labeled with label strips. The buttons feature haptic feedback, so they can be operated reliably even when wearing gloves. You can set five colors (blue, green, red, yellow, and white) and set the brightness of the buttons via STEP 7 hardware configuration. There are eight I/O pins on the back, which can be used to connect other controls. The keypads can be mounted together without gaps and, with the aid of an integrated Ethernet switch, the units can become part of a bus-type topology, even with a 24V DC circuit.

Pushbutton Panel KP8F - Fail-safe version

Thanks to the integrated PROFIsafe communication, this keypad panel can be used for fail-safe operation of simple emergency stop applications together with the SIMATIC S7-300F/400F. The two additional fail-safe inputs of the KP8F can be utilized with two Emergency Stop buttons to achieve SIL 2. If an Emergency Stop button is connected to only one of the inputs, SIL 3 can be achieved. The KP8F can be handled by two fail-safe controllers through the shared device PROFINET function.
