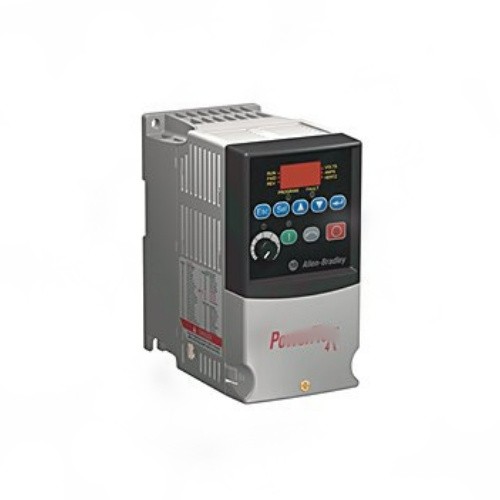

PowerFlex 4 AC Drives-Compact Low Voltage AC Drives

Overview

Power Ratings

100…120V: 0.2…1.1 kW / 0.25…1.5 Hp / 1.5…6 A

200…240V: 0.2…3.7 kW / 0.25…5 Hp / 1.4…17.5 A

380…480V: 0.4…3.7 kW / 0.5…5 Hp / 1.4…8.7 A

IP20 NEMA/UL Type Open, plate drive, flange mount, and DIN rail

Optional IP30 NEMA/UL Type 1 enclosure conversion kit

Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives

Zero Stacking™ Drives for ambient temperatures up to 40 °C (104 °F)

V/Hz control, slip compensation

Integral RS-485 communication

Optional serial converter module for use with any controller with DF1 messaging

Optional ControlNet, DeviceNet, EtherNet/IP, Profibus DP, BACnet, and LonWorks communication modules

Drive overload protection, ramp regulation, and flying start

Configuration and programming via integral LCD keypad or software

Premier Integration with PowerFlex AC drives uses the Logix control platform to simplify parameter and tag programming and reduce development time
