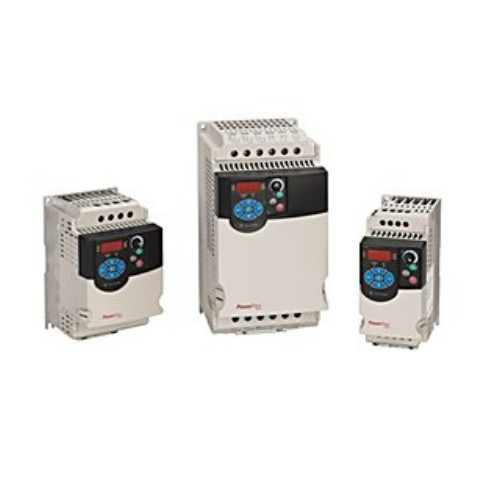

PowerFlex 4M AC Drives -Compact Low Voltage AC Drives

PowerFlex 4M AC Drives -Compact Low Voltage AC Drives

.Our PowerFlex 4M AC Drives are the smallest and most cost-effective members of the PowerFlex family of drives. Feed-through wiring and easy programming provide the flexibility to handle a broad range of applications.

EMAIL

Overview

  • Power ratings:

    • 100…120V: 0.2…1.1 kW / 0.25…1.5 Hp / 1.6…6 A

    • 200…240V: 0.2…7.5 kW / 0.25…10 Hp / 1.6…33 A

    • 380…480V: 0.4…11 kW / 0.5…15 Hp / 1.5…24 A

  • IP20, NEMA/UL open type enclosures V/Hz control, slip compensation

  • Integral RS-485 communications

  • Feed-through wiring

  • DIN rail mounting feature on A and B frame drives

  • Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives

  • Zero Stacking™ Drives for ambient temperatures up to 40 °C (104 °F)

  • Drive overload protection and ramp regulation

  • Configuration and programming via integral LCD keypad, remote keypad, or software

  • Premier Integration with PowerFlex AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time


Product Selection

Catalog Number                               Description
22F-A011N103PowerFlex4M AC Drive, 240VAC, 1PH, 11 Amps, 2.2 kW, 3 HP,Frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
22F-A011N113PowerFlex4M AC Drive, 240VAC, 1PH, 11 Amps, 2.2 kW, 3 HP,Frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter, No Brake Drive
22F-A1P6N103PowerFlex4M AC Drive, 240VAC, 1PH, 1.6 Amps, 0.2 kW, 0.25 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
22F-A1P6N113PowerFlex4M AC Drive, 240VAC, 1PH, 1.6 Amps, 0.2 kW, 0.25 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter, No Brake Drive
22F-A2P5N103PowerFlex4M AC Drive, 240VAC, 1PH, 2.5 Amps, 0.37 kW, 0.5 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
22F-A2P5N113PowerFlex4M AC Drive, 240VAC, 1PH, 2.5 Amps, 0.37 kW, 0.5 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter, No Brake Drive
22F-A4P2N103PowerFlex4M AC Drive, 240VAC, 1PH, 4.2 Amps, 0.75 kW, 1 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
22F-A4P2N113PowerFlex4M AC Drive, 240VAC, 1PH, 4.2 Amps, 0.75 kW, 1 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter, No Brake Drive
22F-A8P0N103PowerFlex4M AC Drive, 240VAC, 1PH, 8 Amps, 1.5 kW, 2 HP,Frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
22F-A8P0N113PowerFlex4M AC Drive, 240VAC, 1PH, 8 Amps, 1.5 kW, 2 HP,Frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter, No Brake Drive
22F-B012N103PowerFlex4M AC Drive, 240 (208)VAC, 3PH, 12 Amps, 2.2 kW, 3 HP,Frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
22F-B017N103PowerFlex4M AC Drive, 240 (208)VAC, 3PH, 17 Amps, 3.7 kW, 5 HP,Frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
22F-B025N104PowerFlex4M AC Drive, 240 (208)VAC, 3PH, 25 Amps, 5.5 kW, 7.5 HP,Frame Size C, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485
22F-B033N104PowerFlex4M AC Drive, 240 (208)VAC, 3PH, 33 Amps, 7.5 kW, 10 HP,Frame Size C, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485
22F-B1P6N103PowerFlex4M AC Drive, 240 (208)VAC, 3PH, 1.6 Amps, 0.2 kW, 0.25 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
22F-B2P5N103PowerFlex4M AC Drive, 240 (208)VAC, 3PH, 2.5 Amps, 0.37 kW, 0.5 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
22F-B4P2N103PowerFlex4M AC Drive, 240 (208)VAC, 3PH, 4.2 Amps, 0.75 kW, 1 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
22F-B8P0N103PowerFlex4M AC Drive, 240 (208)VAC, 3PH, 8 Amps, 1.5 kW, 2 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
22F-D013N104PowerFlex4M AC Drive, 480VAC, 3PH, 13 Amps, 5.5 kW, 7.5 HP,Frame Size C, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485
22F-D013N114PowerFlex4M AC Drive, 480VAC, 3PH, 13 Amps, 5.5 kW, 7.5 HP,Frame Size C, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter, RS485
22F-D018N104PowerFlex4M AC Drive, 480VAC, 3PH, 18 Amps, 7.5 kW, 10 HP,Frame Size C, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485
22F-D018N114PowerFlex4M AC Drive, 480VAC, 3PH, 18 Amps, 7.5 kW, 10 HP,Frame Size C, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter, RS485
22F-D024N104PowerFlex4M AC Drive, 480VAC, 3PH, 24 Amps, 11 kW, 15 HP,Frame Size C, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, RS485
22F-D024N114PowerFlex4M AC Drive, 480VAC, 3PH, 24 Amps, 11 kW, 15 HP,Frame Size C, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter, RS485
22F-D1P5N103PowerFlex4M AC Drive, 480VAC, 3PH, 1.5 Amps, 0.37 kW, 0.5 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
22F-D1P5N113PowerFlex4M AC Drive, 480VAC, 3PH, 1.5 Amps, 0.37 kW, 0.5 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter, No Brake Drive
22F-D2P5N103PowerFlex4M AC Drive, 480VAC, 3PH, 2.5 Amps, 0.75 kW, 1 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
22F-D2P5N113PowerFlex4M AC Drive, 480VAC, 3PH, 2.5 Amps, 0.75 kW, 1 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter, No Brake Drive
22F-D4P2N103PowerFlex4M AC Drive, 480VAC, 3PH, 4.2 Amps, 1.5 kW, 2 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
22F-D4P2N113PowerFlex4M AC Drive, 480VAC, 3PH, 4.2 Amps, 1.5 kW, 2 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter, No Brake Drive
22F-D6P0N103PowerFlex4M AC Drive, 480VAC, 3PH, 6 Amps, 2.2 kW, 3 HP,Frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
22F-D6P0N113PowerFlex4M AC Drive, 480VAC, 3PH, 6 Amps, 2.2 kW, 3 HP,Frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter, No Brake Drive
22F-D8P7N103PowerFlex4M AC Drive, 480VAC, 3PH, 8.7 Amps, 3.7 kW, 5 HP,Frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
22F-D8P7N113PowerFlex4M AC Drive, 480VAC, 3PH, 8.7 Amps, 3.7 kW, 5 HP,Frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, With Internal CE Compliant Filter, No Brake Drive
22F-V1P6N103PowerFlex4M AC Drive, 120VAC, 1PH, 1.6 Amps, 0.2 kW, 0.25 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
22F-V2P5N103PowerFlex4M AC Drive, 120VAC, 1PH, 2.5 Amps, 0.37 kW, 0.5 HP,Frame Size A, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
22F-V4P5N103PowerFlex4M AC Drive, 120VAC, 1PH, 4.5 Amps, 0.75 kW, 1 HP,Frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
22F-V6P0N103PowerFlex4M AC Drive, 120VAC, 1PH, 6 Amps, 1.1 kW, 1.5 HP,Frame Size B, IP20 (Open), LED Display, Fixed Digital Keypad, No CE Compliant Filter, No Brake Drive
