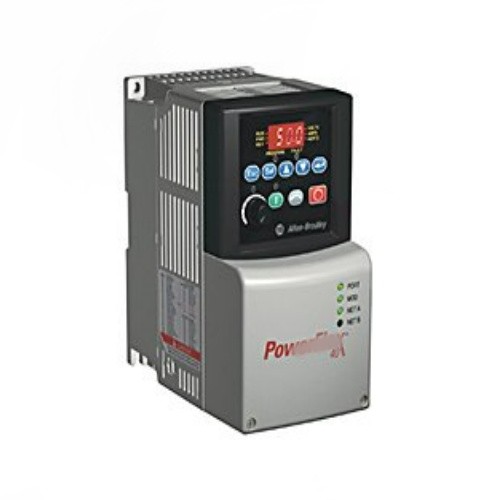

Our PowerFlex 40 AC Drives provide OEMs, machine builders, and end users with performance-enhancing motor control in an easy-to-use compact package. These drives feature sensorless vector control to meet low-speed torque demands. With flexible enclosure options, and simple programming, they can be installed and configured quickly. We also have packaged drives that provide additional control, power, and enclosure options in standardized designs.
PRODUCT DETAILS
Overview
Power ratings:
100...120V: 0.4...1.1 kW / 0.5...1.5 Hp / 2.3...6 A
200...240V: 0.4...7.5 kW / 0.5...10 Hp / 2.3...33 A
380...480V: 0.4...11 kW / 0.5...15 Hp / 1.4...24 A
500...600V: 0.75...11 kW / 1...15 Hp / 1.7...19 A
IP20 NEMA/UL Type Open, plate drive, flange mount, IP66 NEMA/UL Type 4X/12, and DIN rail
Optional IP30 NEMA/UL Type 1 conversion kit
Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives
Zero Stacking Drives for ambient temperatures up to 40 °C (104°F)
V/Hz and sensorless vector control, as well as process PID
Integral RS-485 communication
Optional serial converter module for use with any controller with DF1 messaging
Optional DeviceNet, ControlNet, and EtherNet/IP, Profibus DP, BACnet™, and LonWorks communication modules
Drive overload protection, ramp regulation, and flying start
StepLogic allows operation as an independent position controller
Configuration and programming via integral LCD keypad, remote keypad, or software
Premier Integration with PowerFlex AC drives uses the Logix control platform to simplify parameter and tag programming and reduce development time
Packaged Drive Options
Power options include circuit breaker, fused disconnect, bypass, and input fuses
Output relay and transformer control options
Door-mounted human interface module (HIM), hand/off/auto selector switch, status pilot lights, and speed potentiometer
Product Selection
| Catalog Number | Description |
| 22B-A012F104 | PowerFlex 40 AC Drive, 200...240V AC, 1PH, 12 Amps, 2.2 kW, 3 HP,Frame Size C, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-A012H204 | PowerFlex 40 AC Drive, 200...240V AC, 1PH, 12 Amps, 2.2 kW, 3 HP,Frame Size C, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-A2P3C104 | PowerFlex 40 AC Drive, 200...240V AC, 1PH, 2.3 Amps, 0.37 kW, 0.5 HP,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-A2P3F104 | PowerFlex 40 AC Drive, 200...240V AC, 1PH, 2.3 Amps, 0.37 kW, 0.5 HP,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-A2P3H204 | PowerFlex 40 AC Drive, 200...240V AC, 1PH, 2.3 Amps, 0.37 kW, 0.5 HP,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-A5P0C104 | PowerFlex 40 AC Drive, 200...240V AC, 1PH, 5 Amps, 0.75 kW, 1 HP,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-A5P0F104 | PowerFlex 40 AC Drive, 200...240V AC, 1PH, 5 Amps, 0.75 kW, 1 HP,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-A5P0H204 | PowerFlex 40 AC Drive, 200...240V AC, 1PH, 5 Amps, 0.75 kW, 1 HP,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-A8P0C104 | PowerFlex 40 AC Drive, 200...240V AC, 1PH, 8 Amps, 1.5 kW, 2 HP,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-A8P0F104 | PowerFlex 40 AC Drive, 200...240V AC, 1PH, 8 Amps, 1.5 kW, 2 HP,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-A8P0H204 | PowerFlex 40 AC Drive, 200...240V AC, 1PH, 8 Amps, 1.5 kW, 2 HP,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-B012C104 | PowerFlex 40 AC Drive, 200...240V AC, 3PH, 12 Amps, 2.2 kW, 3 HP,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-B012F104 | PowerFlex 40 AC Drive, 200...240V AC, 3PH, 12 Amps, 2.2 kW, 3 HP,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-B012H204 | PowerFlex 40 AC Drive, 200...240V AC, 3PH, 12 Amps, 2.2 kW, 3 HP,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-B017C104 | PowerFlex 40 AC Drive, 200...240V AC, 3PH, 17 Amps, 3.7 kW, 5 HP,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-B017F104 | PowerFlex 40 AC Drive, 200...240V AC, 3PH, 17 Amps, 3.7 kW, 5 HP,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-B017H204 | PowerFlex 40 AC Drive, 200...240V AC, 3PH, 17 Amps, 3.7 kW, 5 HP,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-B024F104 | PowerFlex 40 AC Drive, 200...240V AC, 3PH, 24 Amps, 5.5 kW, 7.5 HP,Frame Size C, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-B024H204 | PowerFlex 40 AC Drive, 200...240V AC, 3PH, 24 Amps, 5.5 kW, 7.5 HP,Frame Size C, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-B033F104 | PowerFlex 40 AC Drive, 200...240V AC, 3PH, 33 Amps, 7.5 kW, 10 HP,Frame Size C, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-B033H204 | PowerFlex 40 AC Drive, 200...240V AC, 3PH, 33 Amps, 7.5 kW, 10 HP,Frame Size C, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-B2P3C104 | PowerFlex 40 AC Drive, 200...240V AC, 3PH, 2.3 Amps, 0.37 kW, 0.5 HP,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-B2P3F104 | PowerFlex 40 AC Drive, 200...240V AC, 3PH, 2.3 Amps, 0.37 kW, 0.5 HP,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-B2P3H204 | PowerFlex 40 AC Drive, 200...240V AC, 3PH, 2.3 Amps, 0.37 kW, 0.5 HP,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-B5P0C104 | PowerFlex 40 AC Drive, 200...240V AC, 3PH, 5 Amps, 0.75 kW, 1 HP,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-B5P0F104 | PowerFlex 40 AC Drive, 200...240V AC, 3PH, 5 Amps, 0.75 kW, 1 HP,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-B5P0H204 | PowerFlex 40 AC Drive, 200...240V AC, 3PH, 5 Amps, 0.75 kW, 1 HP,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-B8P0C104 | PowerFlex 40 AC Drive, 200...240V AC, 3PH, 8 Amps, 1.5 kW, 2 HP,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-B8P0F104 | PowerFlex 40 AC Drive, 200...240V AC, 3PH, 8 Amps, 1.5 kW, 2 HP,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-B8P0H204 | PowerFlex 40 AC Drive, 200...240V AC, 3PH, 8 Amps, 1.5 kW, 2 HP,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D010C104 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 10 Amps, 4 kW, 5 HP,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D010F104 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 10 Amps, 4 kW, 5 HP,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D010H204 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 10 Amps, 4 kW, 5 HP,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D012F104 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 12 Amps, 5.5 kW, 7.5 HP,Frame Size C, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D012H204 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 12 Amps, 5.5 kW, 7.5 HP,Frame Size C, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D017F104 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 17 Amps, 7.5 kW, 10 HP,Frame Size C, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D017H204 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 17 Amps, 7.5 kW, 10 HP,Frame Size C, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D024F104 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 24 Amps, 11 kW, 15 HP,Frame Size C, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D024H204 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 24 Amps, 11 kW, 15 HP,Frame Size C, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D1P4C104 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 1.4 Amps, 0.37 kW, 0.5 HP,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D1P4F104 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 1.4 Amps, 0.37 kW, 0.5 HP,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D1P4H204 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 1.4 Amps, 0.37 kW, 0.5 HP,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D2P3C104 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 2.3 Amps, 0.75 kW, 1 HP,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D2P3F104 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 2.3 Amps, 0.75 kW, 1 HP,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D2P3H204 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 2.3 Amps, 0.75 kW, 1 HP,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D4P0C104 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 4 Amps, 1.5 kW, 2 HP,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D4P0F104 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 4 Amps, 1.5 kW, 2 HP,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D4P0H204 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 4 Amps, 1.5 kW, 2 HP,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D6P0C104 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 6 Amps, 2.2 kW, 3 HP,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D6P0F104 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 6 Amps, 2.2 kW, 3 HP,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-D6P0H204 | PowerFlex 40 AC Drive, 380...480V AC, 3PH, 6 Amps, 2.2 kW, 3 HP,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-E012F104 | PowerFlex 40 AC Drive, 460...600V AC, 3PH, 12.2 Amps, ,Frame Size C, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-E012H204 | PowerFlex 40 AC Drive, 460...600V AC, 3PH, 12.2 Amps, ,Frame Size C, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-E019F104 | PowerFlex 40 AC Drive, 460...600V AC, 3PH, 19 Amps, ,Frame Size C, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-E019H204 | PowerFlex 40 AC Drive, 460...600V AC, 3PH, 19 Amps, ,Frame Size C, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-E1P7C104 | PowerFlex 40 AC Drive, 460...600V AC, 3PH, 1.7 Amps, ,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-E1P7F104 | PowerFlex 40 AC Drive, 460...600V AC, 3PH, 1.7 Amps, ,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-E1P7H204 | PowerFlex 40 AC Drive, 460...600V AC, 3PH, 1.7 Amps, ,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-E3P0C104 | PowerFlex 40 AC Drive, 460...600V AC, 3PH, 3.0 Amps, ,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-E3P0F104 | PowerFlex 40 AC Drive, 460...600V AC, 3PH, 3.0 Amps, ,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-E3P0H204 | PowerFlex 40 AC Drive, 460...600V AC, 3PH, 3.0 Amps, ,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-E4P2C104 | PowerFlex 40 AC Drive, 460...600V AC, 3PH, 4.2 Amps, ,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-E4P2F104 | PowerFlex 40 AC Drive, 460...600V AC, 3PH, 4.2 Amps, ,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-E4P2H204 | PowerFlex 40 AC Drive, 460...600V AC, 3PH, 4.2 Amps, ,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-E6P6C104 | PowerFlex 40 AC Drive, 460...600V AC, 3PH, 6.6 Amps, ,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-E6P6F104 | PowerFlex 40 AC Drive, 460...600V AC, 3PH, 6.6 Amps, ,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-E6P6H204 | PowerFlex 40 AC Drive, 460...600V AC, 3PH, 6.6 Amps, ,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-E9P9F104 | PowerFlex 40 AC Drive, 460...600V AC, 3PH, 9.9 Amps, ,Frame Size C, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-E9P9H204 | PowerFlex 40 AC Drive, 460...600V AC, 3PH, 9.9 Amps, ,Frame Size C, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-V2P3C104 | PowerFlex 40 AC Drive, 100...120V AC, 1PH, 2.3 Amps, 0.37 kW, 0.5 HP,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-V2P3F104 | PowerFlex 40 AC Drive, 100...120V AC, 1PH, 2.3 Amps, 0.37 kW, 0.5 HP,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-V2P3H204 | PowerFlex 40 AC Drive, 100...120V AC, 1PH, 2.3 Amps, 0.37 kW, 0.5 HP,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-V5P0C104 | PowerFlex 40 AC Drive, 100...120V AC, 1PH, 5 Amps, 0.75 kW, 1 HP,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-V5P0F104 | PowerFlex 40 AC Drive, 100...120V AC, 1PH, 5 Amps, 0.75 kW, 1 HP,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-V5P0H204 | PowerFlex 40 AC Drive, 100...120V AC, 1PH, 5 Amps, 0.75 kW, 1 HP,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-V6P0C104 | PowerFlex 40 AC Drive, 100...120V AC, 1PH, 6 Amps, 1.1 kW, 1.5 HP,Frame Size B, IP66, NEMA/UL Type 4X, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-V6P0F104 | PowerFlex 40 AC Drive, 100...120V AC, 1PH, 6 Amps, 1.1 kW, 1.5 HP,Frame Size B, Flange Mount - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
| 22B-V6P0H204 | PowerFlex 40 AC Drive, 100...120V AC, 1PH, 6 Amps, 1.1 kW, 1.5 HP,Frame Size B, Replacement Plate Drive - IP20, NEMA/UL Type Open, LED Display, Digital Keypad, No CE Compliant Filter, RS485 |
