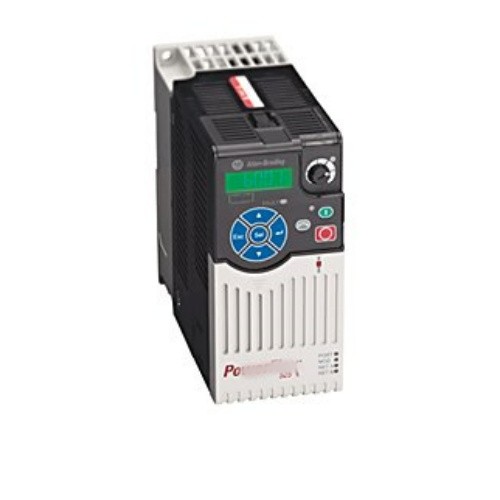

PowerFlex 525 AC Drives-Compact Low Voltage AC Drives

Our PowerFlex 525 AC Drives feature an innovative, modular design to support fast and easy installation and configuration. This next generation of compact drives offers embedded EtherNet/IP communications, USB programming, and standard safety features. PowerFlex 525 drives, which offer a power rating of 0.4...22 kW (0.5...30 Hp) with global voltage classes of 100...600V, provide a variety of motor control and flexible mounting options. PowerFlex 525 AC drives operate at temperatures as high as 70 °C (158 °F), and they are ideal for applications such as conveyors, fans, pumps, and mixers.

Overview

Power ratings of 0.4…22 kW / 0.5…30 Hp in global voltages from 100...600V
Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration
Offers a wide range of motor control, including volts per hertz, sensorless vector control, and closed loop velocity vector control
Supports seamless integration into the Logix environment and EtherNet/IP networks with built-in EtherNet/IP™
Operates in high ambient temperatures up to 70 °C (158 °F) with current derating and a control module fan kit
Offers compact footprint relative to its power range and Zero Stacking™ mounting with 50 mm airflow gap
Provides permanent magnet motor control to help improve energy efficiency and reduce related costs
Features Safe Torque-off which is certified at PLd/SIL2 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system.

Product Selection

Catalog Number	Description
25B-A011N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200...240V AC, 1 Phase, 11 Amps, 3 Hp, 2.2 kW Normal Duty; 3 Hp, 2.2 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25B-A011N114	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200...240V AC, 1 Phase, 11 Amps, 3 Hp, 2.2 kW Normal Duty; 3 Hp, 2.2 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter
25B-A2P5N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200...240V AC, 1 Phase, 2.5 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-A2P5N114	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200...240V AC, 1 Phase, 2.5 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25B-A4P8N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200...240V AC, 1 Phase, 4.8 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-A4P8N114	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200...240V AC, 1 Phase, 4.8 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25B-A8P0N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200...240V AC, 1 Phase, 8 Amps, 2 Hp, 1.5 kW Normal Duty; 2 Hp, 1.5 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25B-A8P0N114	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200...240V AC, 1 Phase, 8 Amps, 2 Hp, 1.5 kW Normal Duty; 2 Hp, 1.5 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter
25B-B011N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200...240V AC, 3 Phase, 11 Amps, 3 Hp, 2.2 kW Normal Duty; 3 Hp, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-B017N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200...240V AC, 3 Phase, 17.5 Amps, 5 Hp, 4 kW Normal Duty; 5 Hp, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25B-B024N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200...240V AC, 3 Phase, 24 Amps, 7.5 Hp, 5.5 kW Normal Duty; 7.5 Hp, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25B-B032N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200...240V AC, 3 Phase, 32 Amps, 10 Hp, 7.5 kW Normal Duty; 10 Hp, 7.5 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25B-B048N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200...240V AC, 3 Phase, 48.3 Amps, 15 Hp, 11 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25B-B062N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200...240V AC, 3 Phase, 62.1 Amps, 20 Hp, 15 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25B-B2P5N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200...240V AC, 3 Phase, 2.5 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-B5P0N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200...240V AC, 3 Phase, 5.0 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-B8P0N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 200...240V AC, 3 Phase, 8.0 Amps, 2 Hp, 1.5 kW Normal Duty; 2 Hp, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-D010N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380...480V AC, 3 Phase, 10.5 Amps, 5 Hp, 4 kW Normal Duty; 5 Hp, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25B-D010N114	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380...480V AC, 3 Phase, 10.5 Amps, 5 Hp, 4 kW Normal Duty; 5 Hp, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter
25B-D013N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380...480V AC, 3 Phase, 13 Amps, 7.5 Hp, 5.5 kW Normal Duty; 7.5 Hp, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25B-D013N114	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380...480V AC, 3 Phase, 13 Amps, 7.5 Hp, 5.5 kW Normal Duty; 7.5 Hp, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, Filter
25B-D017N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380...480V AC, 3 Phase, 17 Amps, 10 Hp, 7.5 kW Normal Duty; 10 Hp, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25B-D017N114	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380...480V AC, 3 Phase, 17 Amps, 10 Hp, 7.5 kW Normal Duty; 10 Hp, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, Filter
25B-D024N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380...480V AC, 3 Phase, 24 Amps, 15 Hp, 11 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25B-D024N114	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380...480V AC, 3 Phase, 24 Amps, 15 Hp, 11 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, Filter
25B-D030N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380...480V AC, 3 Phase, 30 Amps, 20 Hp, 15 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25B-D030N114	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380...480V AC, 3 Phase, 30 Amps, 20 Hp, 15 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, Filter
25B-D037N114	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380...480V AC, 3 Phase, 37 Amps, 25 Hp, 18.5 kW Normal Duty; 20 Hp, 15 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, Filter
25B-D043N114	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380...480V AC, 3 Phase, 43 Amps, 30 Hp, 22 kW Normal Duty; 25 Hp, 18.5 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, Filter
25B-D1P4N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380...480V AC, 3 Phase, 1.4 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-D1P4N114	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380...480V AC, 3 Phase, 1.4 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25B-D2P3N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380...480V AC, 3 Phase, 2.3 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-D2P3N114	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380...480V AC, 3 Phase, 2.3 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25B-D4P0N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380...480V AC, 3 Phase, 4 Amps, 2 Hp, 1.5 kW Normal Duty; 2 Hp, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-D4P0N114	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380...480V AC, 3 Phase, 4 Amps, 2 Hp, 1.5 kW Normal Duty; 2 Hp, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25B-D6P0N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380...480V AC, 3 Phase, 6 Amps, 3 Hp, 2.2 kW Normal Duty; 3 Hp, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-D6P0N114	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380...480V AC, 3 Phase, 6 Amps, 3 Hp, 2.2 kW Normal Duty; 3 Hp, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25B-E012N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525...600V AC, 3 Phase, 12 Amps, 10 Hp, 7.5 kW Normal Duty; 10 Hp, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25B-E019N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525...600V AC, 3 Phase, 19 Amps, 15 Hp, 11 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25B-E022N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525...600V AC, 3 Phase, 22 Amps, 20 Hp, 15 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25B-E027N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525...600V AC, 3 Phase, 27 Amps, 25 Hp, 18.5 kW Normal Duty; 20 Hp, 15 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25B-E032N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525...600V AC, 3 Phase, 32 Amps, 30 Hp, 22 kW Normal Duty; 25 Hp, 18.5 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25B-E0P9N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525...600V AC, 3 Phase, 0.9 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-E1P7N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525...600V AC, 3 Phase, 1.7 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-E3P0N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525...600V AC, 3 Phase, 3 Amps, 2 Hp, 1.5 kW Normal Duty; 2 Hp, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-E4P2N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525...600V AC, 3 Phase, 4.2 Amps, 3 Hp, 2.2 kW Normal Duty; 3 Hp, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-E6P6N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525...600V AC, 3 Phase, 6.6 Amps, 5 Hp, 4 kW Normal Duty; 5 Hp, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25B-E9P9N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 525...600V AC, 3 Phase, 9.9 Amps, 7.5 Hp, 5.5 kW Normal Duty; 7.5 Hp, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25B-V2P5N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 100...120V AC, 1 Phase, 2.5 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25B-V4P8N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 100...120V AC, 1 Phase, 4.8 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25B-V6P0N104	PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 100...120V AC, 1 Phase, 6 Amps, 1.5 Hp, 1.1 kW Normal Duty; 1.5 Hp, 1.1 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
