SIMATIC S7-1500 CPU

The new Siemens S7-1500 PLC controller sets new standards in addition to a wide range of innovative technologies, Siemens S7-1500 PLC greatly improves productivity. Whether it is small equipment or complex equipment devices that require high speed and accuracy, they are all applicable.SIMATIC S7-1500 seamlessly integrated into TIA Broadway, which greatly improves the efficiency of engineering configuration. Siemens S7-1500 PLC adopts modularized structure, which makes all kinds of functions expandable.

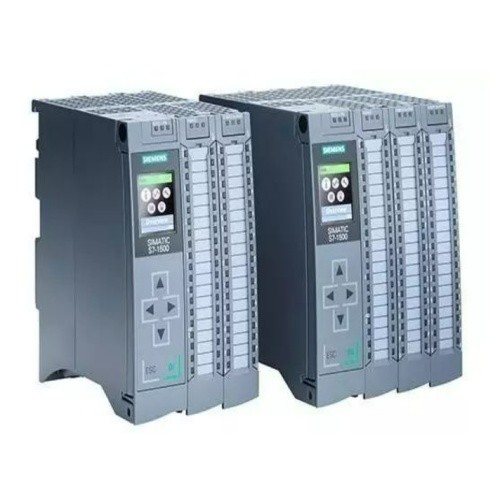

The newly released two compact controllers, CPU 1511C and CPU 1512C, further expand the SIMATIC S7-1500 controller family lineup. With its compact industrial design, the performance of the space-critical applications, especially OEM machine manufacturing and other areas to provide cost-effective solutions. 1500C controller based on the standard controller, integrated discrete, analog inputs and outputs and up to 400 KHz (4x) speed counting function. The 1511C and 1512C can also be extended with 25mm and 35mm IO modules as standard.

The 1511C and 1512C also have the following highlights as standard controllers:

- Integration of a PROFINET port with switch function, which can be used as an IO controller with up to 128 IO devices and supports functions such as iDevice, IRT, MRP, PROFIenergy, Option handing, and more.

- Supports open Ethernet communication (TCP/IP, UDP, ISO-on-TCP).

- Integrated Web server

- Integration of Trace, Motion Control, Closed Loop Control, etc.

- Integration of information functions for maximum protection of intellectual property and investment.

The new S7-1500 brings together standard, compact, distributed and open CPU modules. With fast response times, integrated CPU display panels, and corresponding debugging and diagnostic mechanisms, the CPUs of the SIMATIC S7-1500 greatly increase productivity and reduce production costs.

- Reduced response times for increased productivity

- Reduced program scanning cycles

- CPU bit instruction processing time is as short as 1ns.

- Integrated motion control for up to 128 axes

- Harmonized plain text diagnostic messages reduce downtime/diagnostic time

- Plug and play, no programming required

- Operator passwords can be set

- Long service life, up to 50,000 hours of operation

- Supports customized start-up displays

- PN IRT ensures response time and precision operation of plant equipment

- Integration of standard Ethernet and PROFINET ports with different IP addresses

- Integrated web server for quick access to diagnostic information via web browser

- Flexible memory card mechanism for all project sizes

- Large storage space: up to 2 GB of memory card support for storing project data, archives, recipes and related documentation.

- Optimized storage of program blocks for faster access to the processor

- Unified data display in STEP7, HMI, Web server, CPU display panel for efficient fault analysis

- Integrated system diagnostics, module-based system diagnostics in plug-and-play mode

- No loss of system fault/alarm messages even when the CPU is in stop mode
