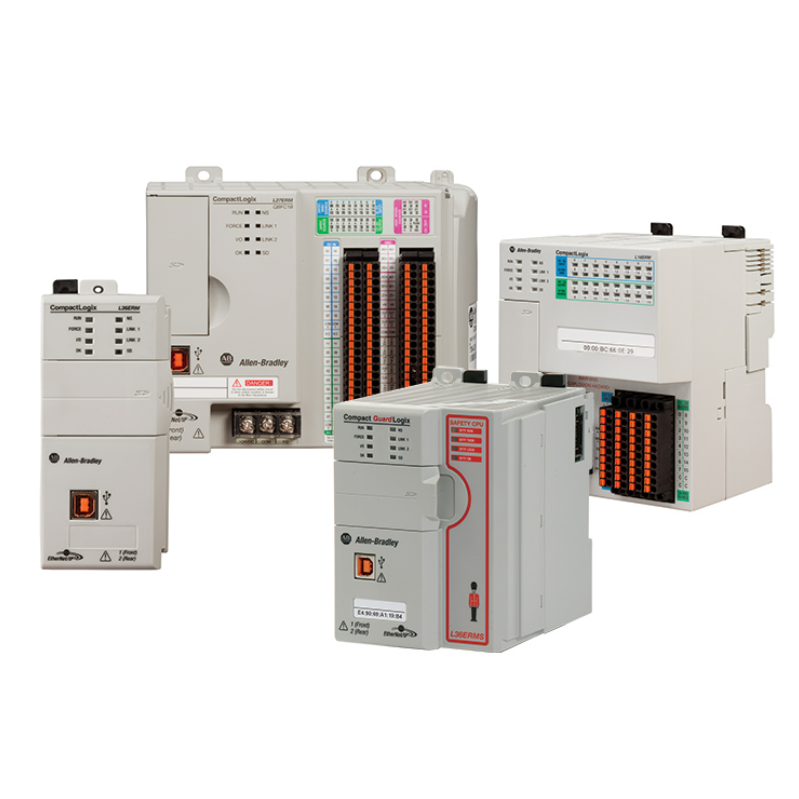

5370 Controllers are part of the Integrated Architecture system. These controllers include integrated safety, and use the same programming software, network protocol, and information capabilities as all Logix controllers. This provides a common development environment for all control disciplines. Consistent tools and features help users to lower engineering investment costs, ease diagnostics and troubleshooting, and speed up time to market for small to mid-size applications.
Product Comparison
Feature | 5580 Controllers | 5570 Controllers |
Performance | 5x…20x (Compared to a ControlLogix 5570 controller) | 2x (Compared to a ControlLogix 5560 controller) |
| Embedded Ethernet Port | 1 gigabit (Gb) | No |
| Local Programming Port | USB | USB |
| Energy Storage Module (ESM) Included | Yes | Yes |
| Onboard Display Included | Yes | Yes |
Supported in Studio 5000 Automation Engineering & Design Environment | Yes | Yes |
| Non-volatile Memory | Secure Digital (SD) card | Secure Digital (SD) card |
| User Memory, Max | 40 MB | 32 MB |
| I/O Points, Max | 128,000 digital; 4,000 analog | 128,000 digital; 4,000 analog |
Overview
Ideal for small, to mid-size applications that require low axis motion and I/O point counts
Offers support for Integrated Motion over EtherNet/IP for maximized scalability
Provides support for Device Level Ring (DLR) network topologies to help increase network resiliency
Removes the need for lithium batteries with built-in energy storage
Includes up to a 2-GB secure digital (SD) card for fast program save and restore
Offers a smaller form factor for maximized cabinet space
Supports up to 2 axes Kinematics for simple articulated robotics
Offers open socket capability that allows support for Modbus TCP as well as devices such as printers, barcode readers and servers
Provides ability to connect with scaled HMI options from the PanelView Plus portfolio to PanelView 800 graphic terminals for simple features Available with conformal coating
Provides integrated safety and integrated motion in a single controller
Supports integrated safety up to SIL 3, PLe CAT 4
On-Machine Controllers
Delivers standard, safety and motion control for On-Machine applications
Provides up to 16 axes of Integrated Motion over EtherNet/IP
Minimizes hardware in the control cabinet with placement directly on the machine
Helps protect against dust and water with IP67-rated wash down protection
Offers integrated safety control up to SIL 3, PLe, CAT 4 in an On-Machine version
Product Comparison
Controller Series | Max. UserMemory | Max. I/OPoints | I/O Module Integration | Max. Motion Pos. Axes | Additional Features |
| 5370 L3 | 3 MB | 960 | 1769 Compact I/O | 16 | Offer additional features for hazardous environments in No Stored Energy (NSE) model |
| 5370 L2 | 1 MB | 160 | 1769 Compact I/O | 4 | Provide embedded power supply and I/O Support universal analog I/O |
| 5370 L1 | 1 MB | 96 | 1734 POINT I/O | 2 | Provide embedded power supply and I/O |
| 5370 | Standard: 1, 2, or 3 MB Safety: 0.5, 1, or 1.5 MB | 960 | 1769 Compact I/O | 4, 8, or 16 | Up to 30 expansion modules |
Product Selection
<td valign="center" style="border-width: 1
<tr class="ue-table-interl
| Catalog Number | Description |
1768-CNB | ControlNet Bridge Module |
1768-CNBR | ControlNet Redundant Bridge Module |
| 1768-EWEB | Ethernet/IP Enhanced Web Server Module |
1769-ADN | CompactLogix DeviceNet Adaptor Module |
| 1769-AENTR | 1769 Network Adaptor,Ethernet,69-I/O,24.0V DC, Dual Port |
1769-AENTRK | 1769 Network Adaptor,Ethernet,69-I/O,24.0V DC, Dual Port, Conformal Coating |
| 1769-ARM | Address Reserve Module |
1769-BA | Replacement Battery |
| 1769-BOOLEAN | 24VDC Input/Output Boolean Control Module |
1769-ECRK | Right End Cap/Terminator - Conformally Coated |
| 1769-HSC | 2/4 Channel High Speed Counter/Encoder Module |
1769-IA16 | 16 Point 120 VAC Input Module |
| 1769-IA16K | 16 Point 120 VAC Input Module - Conformally Coated |
1769-IA8I | 8 Point 120 VAC Individually Isolated Input Module |
| 1769-IF16C | 16 Channel Compact High- density Analog Current Input Module |
1769-IF16CK | 16 Channel Compact High- density Analog Current Input Module- Conformally Coated |
| 1769-IF16V | 16 Channel Compact High- density Analog Voltage Input Module |
1769-IF16VK | 16 Channel Compact High- density Analog Voltage Input Module- Conformally Coated |
| 1769-IF4 | 4 Channel Analog Current/Voltage Input Module |
1769-IF4K | 4 Channnel Analog Current/Voltage Input Module - Conformally Coated |
| 1769-IF4FXOF2F | High Resolution, High Speed 4 In/2 Out Analog Combination Module |
1769-IF4I | 4 Channel Analog Current/Voltage Isolated Input Module |
| 1769-IF4IK | 4 Channel Analog Current/Voltage Isolated Input Module- Conformally Coated |
1769-IF4XOF2 | 8 Bit Resolution, High Speed 4 In/2 Out Anlg. Comb |
| 1769-IF8 | 8 Channel Analog Current/Voltage Input Module |
1769-IF8K | 8 Channel Analog Current/Voltage Input Module - Conformally Coated |
| 1769-IG16 | 16 Point 5 VDC TTL Input Module |
1769-IM12 | 12 Point 240 VAC Input Module |
| 1769-IQ16 | 16 Point 24 VDC Sinking/Sourcing Input Module |
1769-IQ16F | 16 Point High Speed 24VDC Input Module |
| 1769-IQ16K | 16 Point 24 VDC Sinking/Sourcing Input Module - Conformally Coated |
1769-IQ32 | 32 Point 24VDC Input Module |
| 1769-IQ32K | 32 Point 24VDC Input Module - Conformally Coated |
1769-IQ32T | 32 Point 24VDC Input Module - Single Wide |
| 1769-IQ6XOW4 | Combo 6Pt 24 VDC Snk/Src In, 4Pt VAC/VDC Relay Out |
1769-IR6 | 6 Channel RTD/Resistance Input Module |
| 1769-IR6K | 6 Channel RTD/Resistance Input Module - Conformally Coated |
1769-IT6 | 6 Channel Thermocouple/Mv Input Module |
| 1769-IT6K | 6 Channel Thermocouple/Mv Input Module - Conformally Coated |
1769-L16ER-BB1B | CompactLogix L16 Controller, 24 VDC Only, Up to 6 Modules Expansion, POINT Bus Backplane, 16 DI (Sink), 16 DO (Source), 2 Ethernet Port (DLR), Up to 4 Ethernet/IP nodes, 384KB User Memory, 1GB SD Card Inbox |
| 1769-L18ERM-BB1BK | 5370 L3 Controllers, Dual Ethernet w/DLR capability, 2MB standard + 1MB safety memory, 16 I/O Expansion, 32 Ethernet IP Nodes, 8 Axis CIP motion, Kinematics with Integrated Safety function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. - Conformally Coated |
| 1769-L36ERM | 5370 L3 Controllers, Dual Ethernet w/DLR capability, 3MB memory, 30 I/O Expansion, 48 Ethernet IP Nodes, 16 Axis CIP motion with Kinematics function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. |
| 1769-L30ERMK | 5370 L3 Controllers, Dual Ethernet w/DLR capability, 1MB Memory, 8 I/O Expansion, 16 Ethernet IP Nodes, 4 Axis CIP motion with Kinematics function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. - Conformally Coated |
1769-L30ERMS | 5370 L3 Controllers, Dual Ethernet w/DLR capability, 1MB standard + 0.5MB Safety Memory, 8 I/O Expansion, 16 Ethernet IP Nodes, 4 Axis CIP motion, Kinematics with Integrated Safety function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. |
| 1769-L36ERMO | Armor 5370 On Machine Controller, 3MB Memory, 30 I/O Expansion, 48 Ethernet/IP notes, 16 Axis CIP motion with Kinematics function, IP67, Controllers are shipped with 1GB SD card and support up to 2GB SD card. |
1769-L36ERMOS | Armor Compact GuardLogix 5370 On Machine safety Controller, 3MB/1.5MB Memory, 30 I/O Expansion, 48 Ethernet/IP notes, 16 Axis CIP motion with Kinematics function, IP67, Controllers are shipped with 1GB SD card and support up to 2GB SD card. |
| 1769-L36ERMS | 5370 L3 Controllers, Dual Ethernet w/DLR capability, 3MB standard + 1.5MB safety memory, 30 I/O Expansion, 48 Ethernet IP Nodes, 16 Axis CIP motion, Kinematics with Integrated Safety function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. |
1769-L37ERM | 5370 L3 Controllers, Dual Ethernet w/DLR capability, 4MB memory, 30 I/O Expansion, 64 Ethernet IP Nodes, 16 Axis CIP motion with Kinematics function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. |
| 1769-L37ERMK | 5370 L3 Controllers, Dual Ethernet w/DLR capability, 4MB memory, 30 I/O Expansion, 64 Ethernet IP Nodes, 16 Axis CIP motion with Kinematics function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. - Conformally Coated |
| 1769-L37ERMO | Armor 5370 On Machine Controller, 4MB Memory, 30 I/O Expansion, 64 Ethernet/IP notes, 16 Axis CIP motion with Kinematics function, IP67, Controllers are shipped with 1GB SD card and support up to 2GB SD card. |
| 1769-L37ERMOS | Armor Compact GuardLogix 5370 On Machine safety Controller, 3MB/1.5MB Memory, 30 I/O Expansion, 64 Ethernet/IP notes, 16 Axis CIP motion with Kinematics function, IP67, Controllers are shipped with 1GB SD card and support up to 2GB SD card. |
| 1769-L37ERMS | 5370 L3 Controllers, Dual Ethernet w/DLR capability, 4MB standard + 1.5MB safety memory, 30 I/O Expansion, 64 Ethernet IP Nodes, 16 Axis CIP motion, Kinematics with Integrated Safety function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. |
| 1769-L37ERMSK | 5370 L3 Controllers, Dual Ethernet w/DLR capability, 4MB standard + 1.5MB safety memory, 30 I/O Expansion, 64 Ethernet IP Nodes, 16 Axis CIP motion, Kinematics with Integrated Safety function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. - Conformally Coated |
| 1769-L38ERM | 5370 L3 Controllers, Dual Ethernet w/DLR capability, 5MB memory, 30 I/O Expansion, 80 Ethernet IP Nodes, 16 Axis CIP motion with Kinematics function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. |
1769-L38ERMK | 5370 L3 Controllers, Dual Ethernet w/DLR capability, 5MB memory, 30 I/O Expansion, 80 Ethernet IP Nodes, 16 Axis CIP motion with Kinematics function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. - Conformally Coated |
| 1769-L38ERMO | Armor 5370 On Machine Controller, 5MB Memory, 30 I/O Expansion, 80 Ethernet/IP notes, 16 Axis CIP motion with Kinematics function, IP67, Controllers are shipped with 1GB SD card and support up to 2GB SD card. |
1769-L38ERMOS | Armor Compact GuardLogix 5370 On Machine safety Controller, 5MB/1.5MB Memory, 30 I/O Expansion, 80 Ethernet/IP notes, 16 Axis CIP motion with Kinematics function, IP67, Controllers are shipped with 1GB SD card and support up to 2GB SD card. |
| 1769-L38ERMS | 5370 L3 Controllers, Dual Ethernet w/DLR capability, 5MB standard + 1.5MB safety memory, 30 I/O Expansion, 80 Ethernet IP Nodes, 16 Axis CIP motion, Kinematics with Integrated Safety function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. |
1769-L38ERMSK | 5370 L3 Controllers, Dual Ethernet w/DLR capability, 5MB standard + 1.5MB safety memory, 30 I/O Expansion, 80 Ethernet IP Nodes, 16 Axis CIP motion, Kinematics with Integrated Safety function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. - Conformally Coated |
| 1769-ECLK | Left End Cap/Terminator- Conformally Coated |
| 1769-IA8IK | 8 Point 120 VAC Individually Isolated Input Module- Conformally Coated |
| 1769-IF4XOF2K | 8 Bit Resolution, High Speed 4 In/2 Out Anlg. Comb- Conformally Coated |
| 1769-OA16 | 16 Point 120/240 VAC Output Module |
| 1769-OA16K | 16 Point 120/240 VAC Output Module - Conformally Coated |
| 1769-OA8 | 8 Point 120/240 VAC Output Module |
| 1769-OB16 | 16 Point 24 VDC Sourcing Output Module |
1769-OB16K | 16 Point 24 VDC Sourcing Output Module - Conformally Coated |
| 1769-OB16P | 16 Point 24 VDC Electronically Fused Sourcing Output Module |
1769-OB32 | 32 Point 24VDC Output Module |
| 1769-OB32K | 32 Point 24VDC Output Module - Conformally Coated |
1769-OB32T | 32 Point Terminated 24VDC Output Module |
| 1769-OB8 | 8 Point High Power 24VDC Output Module |
| 1769-OB8K | 8 Point High Power 24VDC Output Module - Conformally Coated |
| 1769-OF2 | 2 Channel Analog Current/Voltage Output Module |
| 1769-OF2K | 2 Channel Analog Current/Voltage Output Module - Conformally Coated 1769-OF44 Channel Analog Current/Voltage Output Module |
| 1769-OF4CI | 4 Channel Analog Current Isolated Output Module |
| 1769-OF4CIK | 4 Channel Analog Current Isolated Output Module- Conformally Coated |
