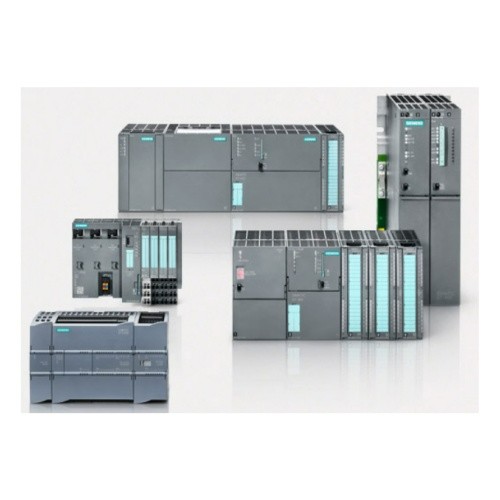

Siemens S7-300 Signal Module

Siemens S7-300 Signal Module,300 PLC Module Agent,Signal Module is the interface to Siemens S7-300 PLC Module for process operations.The versatility of the S7-300 module range allows modular customization to Siemens S7-300 PLC,300 PLC Signal Module,300 PLC Module Agent for versatile tasks.The S7-300 supports The S7-300 supports multifaceted technical tasks and offers exhaustive communication options. In addition to CPUs with integrated functions and interfaces, there are various technology- and communication-specific special modules in the S7-300 design.

Easy installation Sensors/actuators are connected via front connectors. The following connection types are available:

- Screw-type terminal blocks

- Spring-loaded terminal blocks

- Quick connection (insulation piercing) After replacing the module, the connector is simply plugged into the new module of the same type and the original wiring is retained. The coding of the front connectors prevents errors from occurring.

- Quick Connections Connecting SIMATIC TOP is easier and faster (not the on-board I/O of a compact CPU). Pre-assembled front-end connectors with individual cable cores and complete plug-in modular systems with front-end connector modules, connecting cables and terminal boxes are available.

- The large number of channels in the assembly density modules enables space-saving design of the S7-300. Modules with 8 to 64 channels per module (digital) or 2 to 8 channels per module (analog) can be used.

- Simple parameterization The modules are configured and parameterized using STEP 7 and do not require inconvenient conversion settings. The data is stored centrally, and if a module is changed, the data is automatically transferred to the new module, avoiding any setup errors. No software upgrade is required when using a new module. Configuration information can be copied as needed, such as for standard machines. Return to top of page

Design and Functionality

Many different digital and analog modules provide inputs/outputs exactly according to the requirements of each task. Digital and analog modules differ in terms of the number of channels, voltage and current ranges, electrical isolation, diagnostics and alarm functions. In all module ranges mentioned here, SIPLUS components are available for the extended temperature range -25... 60°C and hazardous air/condensation.

Diagnostics, interrupts

Many modules also monitor the signal acquisition (diagnostics) and the signals coming back from the process (process interruptions). This makes it possible to react immediately to errors in the process (e.g. broken wires or short circuits) as well as to any process events (e.g. rising or falling edges on digital inputs). The response of the controller can be easily programmed using STEP 7.

Specialized modules

For testing and simulation, an analog module can be inserted into the S7-300, which simulates the encoder signals by converting and indicating the output signals with LEDs.

The module can be inserted anywhere (slot rules do not have to be observed). The virtual module reserves a slot for an unconfigured signaling module. When the module is installed later, neither the mechanical configuration nor the address assignment of the entire configuration is changed.

S7-300

- Modular, compact PLC system for low- and medium-range performance requirements

- Modules with a wide range of capabilities are optimally adapted to automation tasks.

- Simple and practical distributed structure and multi-interface network capability, the application is very flexible

- User-friendly operation and fanless design

- Freedom of expansion as control tasks increase

- Extremely powerful thanks to a large number of integrated functions

S7-300F

- Fault-based automation system that meets the increasing demands of the plant.

- Based on the S7-300

- Additional ET 200S and ET 200M Distributed I/O stations based on the S7-300 can be connected with equipped modules.

I/O stations

- Communication via PROFIsafe profile or PROFINET

- In addition, standard modules can be used in the system

SIPLUS S7-300

- Controllers for use in harsh environmental conditions

- Extended temperature range from -40/-25 °C to +60/70 °C

- Suitable for use in media-exposed environments (hazardous gas environments)

- Can be used under conditions of condensation and increased mechanical pressure

- Utilizes proven S7-300 PLC technology

- Easy handling, programming, maintenance and repair

- Suitable for
