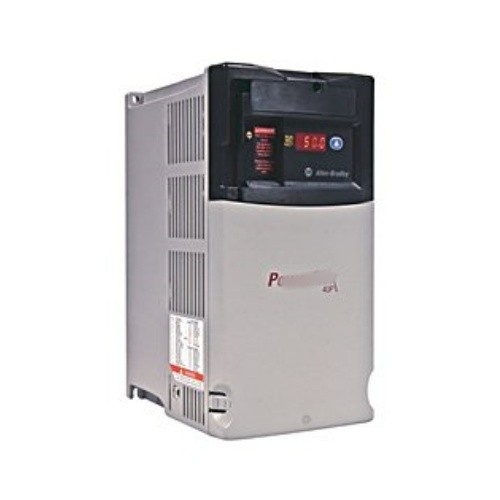

PowerFlex 40P AC Drives -Compact Low Voltage AC Drives

PowerFlex 40P AC Drives -Compact Low Voltage AC Drives

Our PowerFlex 40P AC Drives provide closed-loop control with an option for Category 3 Safe Torque-off in a compact and cost-effective design. This drive is designed to meet global OEM and end-user demands for flexibility, space savings and ease of use. It is a cost-effective solution for speed or basic position control of applications such as diverters, smart conveyors, packaging machines, and fiber-spinning machines.

EMAIL

Overview

  • Power ratings:

    • 200…240V: 0.4…7.5 kW / 0.5…10 Hp / 2.3…33 A

    • 380…480V: 0.4…11 kW / 0.5…15 Hp / 1.4…24 A

    • 500…600V: 0.75…11 kW / 1…15 Hp / 1.7…19 A

  • IP20 NEMA/UL Type Open, plate drive, flange mount

  • Optional IP30 NEMA/UL Type 1 conversion kit

  • V/Hz control, sensorless vector control, as well as process PID

  • Internal RS-485 and Common Industrial Protocol (CIP) communication

  • 4-digit display, 3 additional status indicators and scroll/reset button

  • Optional Remote Human Interface Modules (HIM) or PC interface for programming

  • Speed control with and without encoder feedback

  • Drive overload protection, ramp regulation, and flying start

  • Fiber application-specific features

  • StepLogic® allows operation as an independent position controller

  • Configuration and programming via integral LCD keypad, remote keypad, or software

  • Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time


Product Selection

Catalog Number                               Description
22D-B012F104PowerFlex 40P AC Drive, 240 (208)VAC, 3PH, 12 Amps, 3 HP,Frame Size B, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-B012H204PowerFlex 40P AC Drive, 240 (208)VAC, 3PH, 12 Amps, 3 HP,Frame Size B, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-B017F104PowerFlex 40P AC Drive, 240 (208)VAC, 3PH, 17.5 Amps, 5 HP,Frame Size B, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-B017H204PowerFlex 40P AC Drive, 240 (208)VAC, 3PH, 17.5 Amps, 5 HP,Frame Size B, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-B024F104PowerFlex 40P AC Drive, 240 (208)VAC, 3PH, 24 Amps, 7.5 HP,Frame Size C, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-B024H204PowerFlex 40P AC Drive, 240 (208)VAC, 3PH, 24 Amps, 7.5 HP,Frame Size C, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-B033F104PowerFlex 40P AC Drive, 240 (208)VAC, 3PH, 33 Amps, 10 HP,Frame Size C, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-B033H204PowerFlex 40P AC Drive, 240 (208)VAC, 3PH, 33 Amps, 10 HP,Frame Size C, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-B2P3F104PowerFlex 40P AC Drive, 240 (208)VAC, 3PH, 2.3 Amps, 0.5 HP,Frame Size B, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-B2P3H204PowerFlex 40P AC Drive, 240 (208)VAC, 3PH, 2.3 Amps, 0.5 HP,Frame Size B, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-B5P0F104PowerFlex 40P AC Drive, 240 (208)VAC, 3PH, 5 Amps, 1 HP,Frame Size B, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-B5P0H204PowerFlex 40P AC Drive, 240 (208)VAC, 3PH, 5 Amps, 1 HP,Frame Size B, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-B8P0F104PowerFlex 40P AC Drive, 240 (208)VAC, 3PH, 8 Amps, 2 HP,Frame Size B, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-B8P0H204PowerFlex 40P AC Drive, 240 (208)VAC, 3PH, 8 Amps, 2 HP,Frame Size B, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-D010F104PowerFlex 40P AC Drive, 480VAC, 3PH, 10.5 Amps, 5 HP,Frame Size B, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-D010H204PowerFlex 40P AC Drive, 480VAC, 3PH, 10.5 Amps, 5 HP,Frame Size B, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-D012F104PowerFlex 40P AC Drive, 480VAC, 3PH, 12 Amps, 7.5 HP,Frame Size C, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-D012H204PowerFlex 40P AC Drive, 480VAC, 3PH, 12 Amps, 7.5 HP,Frame Size C, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-D017F104PowerFlex 40P AC Drive, 480VAC, 3PH, 17 Amps, 10 HP,Frame Size C, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-D017H204PowerFlex 40P AC Drive, 480VAC, 3PH, 17 Amps, 10 HP,Frame Size C, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-D024F104PowerFlex 40P AC Drive, 480VAC, 3PH, 24 Amps, 15 HP,Frame Size C, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-D024H204PowerFlex 40P AC Drive, 480VAC, 3PH, 24 Amps, 15 HP,Frame Size C, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-D1P4F104PowerFlex 40P AC Drive, 480VAC, 3PH, 1.4 Amps, 0.5 HP,Frame Size B, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-D1P4H204PowerFlex 40P AC Drive, 480VAC, 3PH, 1.4 Amps, 0.5 HP,Frame Size B, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-D2P3F104PowerFlex 40P AC Drive, 480VAC, 3PH, 2.3 Amps, 1 HP,Frame Size B, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-D2P3H204PowerFlex 40P AC Drive, 480VAC, 3PH, 2.3 Amps, 1 HP,Frame Size B, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-D4P0F104PowerFlex 40P AC Drive, 480VAC, 3PH, 4 Amps, 2 HP,Frame Size B, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-D4P0H204PowerFlex 40P AC Drive, 480VAC, 3PH, 4 Amps, 2 HP,Frame Size B, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-D6P0F104PowerFlex 40P AC Drive, 480VAC, 3PH, 6 Amps, 3 HP,Frame Size B, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-D6P0H204PowerFlex 40P AC Drive, 480VAC, 3PH, 6 Amps, 3 HP,Frame Size B, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-E012F104PowerFlex 40P AC Drive, 600VAC, 3PH, 12 Amps, 10 HP,Frame Size C, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-E012H204PowerFlex 40P AC Drive, 600VAC, 3PH, 12 Amps, 10 HP,Frame Size C, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-E019F104PowerFlex 40P AC Drive, 600VAC, 3PH, 19 Amps, 15 HP,Frame Size C, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-E019H204PowerFlex 40P AC Drive, 600VAC, 3PH, 19 Amps, 15 HP,Frame Size C, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-E1P7F104PowerFlex 40P AC Drive, 600VAC, 3PH, 1.7 Amps, 1 HP,Frame Size B, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-E1P7H204PowerFlex 40P AC Drive, 600VAC, 3PH, 1.7 Amps, 1 HP,Frame Size B, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-E3P0F104PowerFlex 40P AC Drive, 600VAC, 3PH, 3 Amps, 2 HP,Frame Size B, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-E3P0H204PowerFlex 40P AC Drive, 600VAC, 3PH, 3 Amps, 2 HP,Frame Size B, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-E4P2F104PowerFlex 40P AC Drive, 600VAC, 3PH, 4.2 Amps, 3 HP,Frame Size B, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-E4P2H204PowerFlex 40P AC Drive, 600VAC, 3PH, 4.2 Amps, 3 HP,Frame Size B, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-E6P6F104PowerFlex 40P AC Drive, 600VAC, 3PH, 6.6 Amps, 5 HP,Frame Size B, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-E6P6H204PowerFlex 40P AC Drive, 600VAC, 3PH, 6.6 Amps, 5 HP,Frame Size B, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
22D-E9P9F104PowerFlex 40P AC Drive, 600VAC, 3PH, 9.9 Amps, 7.5 HP,Frame Size C, Flange Mount IP20 (NEMA Type Open), Display w/ Reset Only, Without CE compliant filter, Standard
22D-E9P9H204PowerFlex 40P AC Drive, 600VAC, 3PH, 9.9 Amps, 7.5 HP,Frame Size C, Plate Drive IP20 (NEMA Type Open), Display w/ Reset Only (plate drive), Without CE compliant filter, Standard
