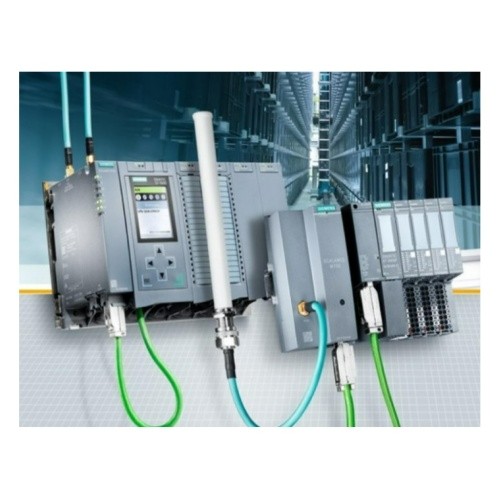

Siemens S7-1500 PLC interface module

Siemens S7-1500 PLC interface module over interface module for distributed I/O expansion, and S7-1500 racks using the same I/O modules to provide better expansion performance for the entire system. - Improved hardware design, function combinations, easier selection SIMATIC ET 200MP Simple to use, modular design, expandable, SIMATIC S7-1500 I/O modules in a distributed configuration. High channel density and fewer component types. Thus greatly simplifying ordering, logistics and spare parts inventory.

A beautiful addition to the class of controllers

The IP20-rated ET 200MP I/O system is scalable, either as centralized I/O for the S7-1500 or in a distributed configuration with PROFINET or PROFIBUS. Each workstation can accommodate up to 30 I/O modules. The modules are available in a small number of different parts and all 35 mm wide modules are equipped with front connectors. As a result, ordering, logistics and spare parts inventory are greatly simplified.

A new benchmark for usability

The SIMATIC ET 200MP is a modular, distributed I/O system that can be used in a wide range of applications. the SIMATIC ET 200MP is IP 20 rated and is intended to be installed in a control cabinet.

Distributed station configuration with IO modules from SIMATIC S7-1500

Small number of part numbers and uniform front connectors for all 35 mm wide modules

Pre-mating positions of the front connectors allow easy pre-wiring

Channel-by-channel diagnostics allow quick and clear identification of process errors and reduce plant downtime

The SIMATIC ET 200MP is extremely compact due to its high channel density. The small footprint increases the utilization of the control cabinet space. Uniform 40-pin front-end connectors simplify ordering and spare parts inventory.

The I/O system can be organized in a scalable and versatile way using a self-assembling backplane bus.

Workstations can be expanded with 30 I/O modules each consisting of 32 channels by assigning modules and diagnostic LEDs one-to-one to terminals and labels for clear alignment “Expandable cable storage” ensures a uniform appearance of workstations in the control cabinet.

The IO system of the S7-1500 class controllers sets new performance standards and makes them the ultimate control system: PROFINET IRT synchronization mode with clock rates of up to 250 μs.

The high-performance backplane bus of the SIMATIC ET 200MP supports fast response times.

Integrated shielding design increases the workstation's immunity to external EMC interference

Digital input modules with very short input delays (50 μs)

Analog module with conversion time of 62.5 µs rsp. 125 µs, 8 channels

SIMATIC ET 200MP - Interface modules

The main modules of the IO workstation and the interface module (IM) for connection to the PLC connect the SIMATIC ET 200MP to PROFINET or PROFIBUS and exchange data between higher-level controllers and I/O modules.

The ET 200MP is particularly suitable for devices with large and very large configuration limits. The connection to PROFINET and PROFIBUS allows the ET 200MP to be mounted in the center of a control cabinet or distributed in devices covering a large area. 30 modules can be operated after the PROFINET modules (up to 12 with PROFIBUS).
