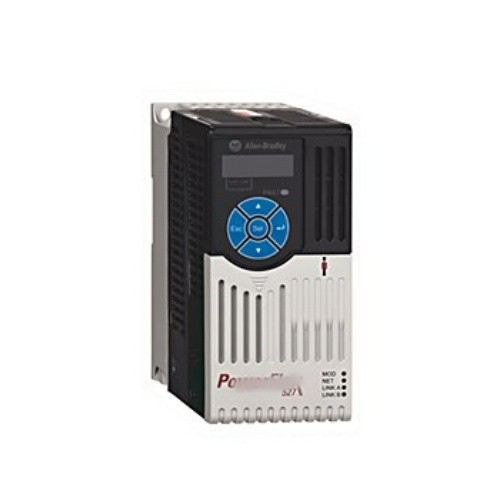

PowerFlex 527 AC Drives -Compact Low Voltage AC Drives

Overview

• Power ratings of 0.4…22 kW / 0.5…30 Hp in global voltages from 100...600V

• Offers built-in dual-port EtherNet/IP  to support a variety of topologies as well as Device Level Ring (DLR) functionality

• Features Safe Torque-off as a standard feature that can be applied through either hardwired safety or Integrated Safety. Both are certified to SIL 3 / PLe Cat 3

• Offers low-cost solution for machine parts, applications such as pumps, fans, in-feed and out-feed conveyors, that need simple speed control for induction motors

• Provides the ability to transfer drive configuration files to a new machine

• Reduces downtime and minimizes manual reconfiguration by using Logix PACs to detect a replaced drive and download all configuration settings over EtherNet/IP

• Offers a new level of AC drive integration to help deliver a coordinated and synchronized machine

Product Selection
