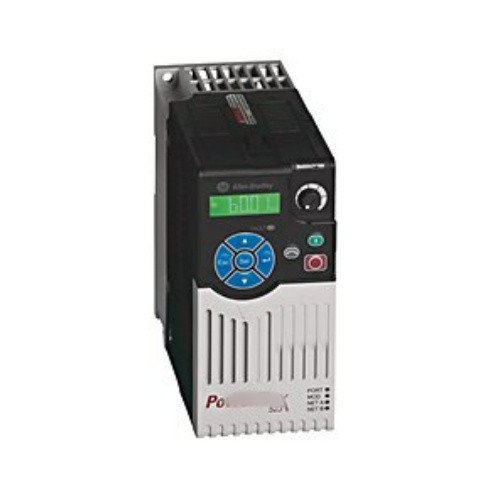

PowerFlex 523 AC Drives -Compact Low Voltage AC Drives

PowerFlex 523 AC Drives -Compact Low Voltage AC Drives

.Our PowerFlex 523 AC Drives are cost-effective and ideal for standalone machines. These drives provide an innovative, modular design that supports fast and easy installation and configuration. In addition, they offer USB programming, application-specific configuration, and flexible mounting options. PowerFlex 523 AC drives offer a power rating of 0.2...22 kW (0.25...30 Hp) with global voltage classes of 100...600V. They support a wide range of motor control, offer a compact footprint, and operate at temperatures as high as 70 °C (158 °F).

EMAIL

Overview

  • Power ratings of 0.2…22 kW / 0.25…30 Hp in global voltages from 100...600V

  • Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration

  • Offers a wide range of motor control, including volts per hertz, sensorless vector control, and sensorless vector control with Economizer mode

  • Operates in ambient temperature range up to 70 °C (158 °F) with current derating and a control module fan kit

  • Offers side-by-side mounting with 50 mm (1.96 in.) air-flow gap at the top and bottom of the drive

  • Supports low-cost networking through an integrated RS485/DSI port


Product Selection

Catalog Number                               Description
25A-A011N104PowerFlex 523 AC Drive, 200...240V AC, 1 Phase, 11 Amps, 3 Hp, 2.2 kW Normal Duty; 3 Hp, 2.2 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25A-A011N114PowerFlex 523 AC Drive, 200...240V AC, 1 Phase, 11 Amps, 3 Hp, 2.2 kW Normal Duty; 3 Hp, 2.2 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter
25A-A1P6N104PowerFlex 523 AC Drive, 200...240V AC, 1 Phase, 1.6 Amps, 0.25 Hp, 0.2 kW Normal Duty; 0.25 Hp, 0.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-A1P6N114PowerFlex 523 AC Drive, 200...240V AC, 1 Phase, 1.6 Amps, 0.25 Hp, 0.2 kW Normal Duty; 0.25 Hp, 0.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25A-A2P5N104PowerFlex 523 AC Drive, 200...240V AC, 1 Phase, 2.5 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-A2P5N114PowerFlex 523 AC Drive, 200...240V AC, 1 Phase, 2.5 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25A-A4P8N104PowerFlex 523 AC Drive, 200...240V AC, 1 Phase, 4.8 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-A4P8N114PowerFlex 523 AC Drive, 200...240V AC, 1 Phase, 4.8 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25A-A8P0N104PowerFlex 523 AC Drive, 200...240V AC, 1 Phase, 8 Amps, 2 Hp, 1.5 kW Normal Duty; 2 Hp, 1.5 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25A-A8P0N114PowerFlex 523 AC Drive, 200...240V AC, 1 Phase, 8 Amps, 2 Hp, 1.5 kW Normal Duty; 2 Hp, 1.5 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter
25A-B011N104PowerFlex 523 AC Drive, 200...240V AC, 3 Phase, 11 Amps, 3 Hp, 2.2 kW Normal Duty; 3 Hp, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-B017N104PowerFlex 523 AC Drive, 200...240V AC, 3 Phase, 17.5 Amps, 5 Hp, 4 kW Normal Duty; 5 Hp, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25A-B024N104PowerFlex 523 AC Drive, 200...240V AC, 3 Phase, 24 Amps, 7.5 Hp, 5.5 kW Normal Duty; 7.5 Hp, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25A-B032N104PowerFlex 523 AC Drive, 200...240V AC, 3 Phase, 32 Amps, 10 Hp, 7.5 kW Normal Duty; 10 Hp, 7.5 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25A-B048N104PowerFlex 523 AC Drive, 200...240V AC, 3 Phase, 48.3 Amps, 15 Hp, 11 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25A-B062N104PowerFlex 523 AC Drive, 200...240V AC, 3 Phase, 62.1 Amps, 20 Hp, 15 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25A-B1P6N104PowerFlex 523 AC Drive, 200...240V AC, 3 Phase, 1.6 Amps, 0.25 Hp, 0.2 kW Normal Duty; 0.25 Hp, 0.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-B2P5N104PowerFlex 523 AC Drive, 200...240V AC, 3 Phase, 2.5 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-B5P0N104PowerFlex 523 AC Drive, 200...240V AC, 3 Phase, 5.0 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-B8P0N104PowerFlex 523 AC Drive, 200...240V AC, 3 Phase, 8.0 Amps, 2 Hp, 1.5 kW Normal Duty; 2 Hp, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-D010N104PowerFlex 523 AC Drive, 380...480V AC, 3 Phase, 10.5 Amps, 5 Hp, 4 kW Normal Duty; 5 Hp, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25A-D010N114PowerFlex 523 AC Drive, 380...480V AC, 3 Phase, 10.5 Amps, 5 Hp, 4 kW Normal Duty; 5 Hp, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, Filter
25A-D013N104PowerFlex 523 AC Drive, 380...480V AC, 3 Phase, 13 Amps, 7.5 Hp, 5.5 kW Normal Duty; 7.5 Hp, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25A-D013N114PowerFlex 523 AC Drive, 380...480V AC, 3 Phase, 13 Amps, 7.5 Hp, 5.5 kW Normal Duty; 7.5 Hp, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, Filter
25A-D017N104PowerFlex 523 AC Drive, 380...480V AC, 3 Phase, 17 Amps, 10 Hp, 7.5 kW Normal Duty; 10 Hp, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25A-D017N114PowerFlex 523 AC Drive, 380...480V AC, 3 Phase, 17 Amps, 10 Hp, 7.5 kW Normal Duty; 10 Hp, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, Filter
25A-D024N104PowerFlex 523 AC Drive, 380...480V AC, 3 Phase, 24 Amps, 15 Hp, 11 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25A-D024N114PowerFlex 523 AC Drive, 380...480V AC, 3 Phase, 24 Amps, 15 Hp, 11 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, Filter
25A-D030N104PowerFlex 523 AC Drive, 380...480V AC, 3 Phase, 30 Amps, 20 Hp, 15 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25A-D030N114PowerFlex 523 AC Drive, 380...480V AC, 3 Phase, 30 Amps, 20 Hp, 15 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, Filter
25A-D037N114PowerFlex 523 AC Drive, 380...480V AC, 3 Phase, 37 Amps, 25 Hp, 18.5 kW Normal Duty; 20 Hp, 15 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, Filter
25A-D043N114PowerFlex 523 AC Drive, 380...480V AC, 3 Phase, 43 Amps, 30 Hp, 22 kW Normal Duty; 25 Hp, 18.5 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, Filter
25A-D1P4N104PowerFlex 523 AC Drive, 380...480V AC, 3 Phase, 1.4 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-D1P4N114PowerFlex 523 AC Drive, 380...480V AC, 3 Phase, 1.4 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25A-D2P3N104PowerFlex 523 AC Drive, 380...480V AC, 3 Phase, 2.3 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-D2P3N114PowerFlex 523 AC Drive, 380...480V AC, 3 Phase, 2.3 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25A-D4P0N104PowerFlex 523 AC Drive, 380...480V AC, 3 Phase, 4 Amps, 2 Hp, 1.5 kW Normal Duty; 2 Hp, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-D4P0N114PowerFlex 523 AC Drive, 380...480V AC, 3 Phase, 4 Amps, 2 Hp, 1.5 kW Normal Duty; 2 Hp, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25A-D6P0N104PowerFlex 523 AC Drive, 380...480V AC, 3 Phase, 6 Amps, 3 Hp, 2.2 kW Normal Duty; 3 Hp, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-D6P0N114PowerFlex 523 AC Drive, 380...480V AC, 3 Phase, 6 Amps, 3 Hp, 2.2 kW Normal Duty; 3 Hp, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, Filter
25A-E012N104PowerFlex 523 AC Drive, 525...600V AC, 3 Phase, 12 Amps, 10 Hp, 7.5 kW Normal Duty; 10 Hp, 7.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25A-E019N104PowerFlex 523 AC Drive, 525...600V AC, 3 Phase, 19 Amps, 15 Hp, 11 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25A-E022N104PowerFlex 523 AC Drive, 525...600V AC, 3 Phase, 22 Amps, 20 Hp, 15 kW Normal Duty; 15 Hp, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, No Filter
25A-E027N104PowerFlex 523 AC Drive, 525...600V AC, 3 Phase, 27 Amps, 25 Hp, 18.5 kW Normal Duty; 20 Hp, 15 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25A-E032N104PowerFlex 523 AC Drive, 525...600V AC, 3 Phase, 32 Amps, 30 Hp, 22 kW Normal Duty; 25 Hp, 18.5 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
25A-E0P9N104PowerFlex 523 AC Drive, 525...600V AC, 3 Phase, 0.9 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-E1P7N104PowerFlex 523 AC Drive, 525...600V AC, 3 Phase, 1.7 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-E3P0N104PowerFlex 523 AC Drive, 525...600V AC, 3 Phase, 3 Amps, 2 Hp, 1.5 kW Normal Duty; 2 Hp, 1.5 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-E4P2N104PowerFlex 523 AC Drive, 525...600V AC, 3 Phase, 4.2 Amps, 3 Hp, 2.2 kW Normal Duty; 3 Hp, 2.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-E6P6N104PowerFlex 523 AC Drive, 525...600V AC, 3 Phase, 6.6 Amps, 5 Hp, 4 kW Normal Duty; 5 Hp, 4 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25A-E9P9N104PowerFlex 523 AC Drive, 525...600V AC, 3 Phase, 9.9 Amps, 7.5 Hp, 5.5 kW Normal Duty; 7.5 Hp, 5.5 kW Heavy Duty, Frame C, IP20 NEMA / Open Type, No Filter
25A-V1P6N104PowerFlex 523 AC Drive, 100...120V AC, 1 Phase, 1.6 Amps, 0.25 Hp, 0.2 kW Normal Duty; 0.25 Hp, 0.2 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-V2P5N104PowerFlex 523 AC Drive, 100...120V AC, 1 Phase, 2.5 Amps, 0.5 Hp, 0.4 kW Normal Duty; 0.5 Hp, 0.4 kW Heavy Duty, Frame A, IP20 NEMA / Open Type, No Filter
25A-V4P8N104PowerFlex 523 AC Drive, 100...120V AC, 1 Phase, 4.8 Amps, 1 Hp, 0.75 kW Normal Duty; 1 Hp, 0.75 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
25A-V6P0N104PowerFlex 523 AC Drive, 100...120V AC, 1 Phase, 6 Amps, 1.5 Hp, 1.1 kW Normal Duty; 1.5 Hp, 1.1 kW Heavy Duty, Frame B, IP20 NEMA / Open Type, No Filter
