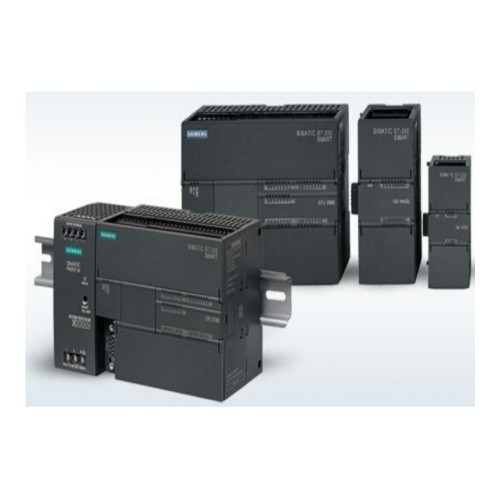

Siemens S7-200 smart expansion module

Siemens S7-200 smart expansion module integrated speed processor chip, bit instruction execution time of up to 0.15μs through the signal board can be extended communication port, analog channels, digital channels and clock hold function CPU module body integrated Ethernet interface and RS485 serial port, support for Ethernet interface to download the program support Modbus RTU, USS. PROFIBUS-DP, free port communication, etc. The body more integrated 3 100KHz speed pulse outputs support universal Micro SD card to download the program and update the PLC firmware and restore the factory settings, PROFIBUS-DP, free-port communication, etc. The body integrates three 100KHz speed pulse outputs to support the universal Micro SD card to download programs, update PLC firmware and restore factory settings New version of the programming software, incorporating a number of user-friendly design, project development more efficient PM207 for the entire system to provide the quality of DC power supply Wide 7-inch, 10-inch two sizes, support for the horizontal and vertical Installation

CPU module with 20I/O, 30I/O, 40I/O, 60I/O four kinds of configurations, provide standard and economic type.

- Integrated high-speed processor chip, bit instruction execution time up to 0.15μs.

- Expandable communication ports, analog channels, digital channels, and clock-holding functions via signal boards

- CPU module body integrated Ethernet interface and RS485 serial port, support Ethernet interface to download programs.

- Supports Modbus RTU, USS, PROFIBUS-DP, free port communication, etc.

- Integrates 3 100KHz pulse outputs.

- Supports downloading programs from Micro SD card, updating PLC firmware and restoring factory settings.

- New version of programming software, incorporating a number of humanized design, more efficient project development.

- PM207 provides quality DC power supply for the whole system Wide screen 7“ and 10” sizes, supports horizontal and vertical installation.

- 800x400 (7-inch), 1024x600 (10-inch) resolution, 64K colors, LED backlight.

- Integrated Ethernet port for communication with S7-200 series PLCs and Logo! (up to 4 units)

- Isolated serial port (RS422/485 adaptive switching), can be connected to Siemens, Mitsubishi, Schneider, Omron and Delta part of the series of PLCs

- Support Modbus RTU protocol

- Support hardware real-time clock function

- Integrated USB2.0 host interface, can be connected to the mouse, keyboard, Hub and USB memory.

- Support for data and alarm archiving

- Recipe management, trend display, alarm function

- Easy project update and maintenance of servo drives and motors through the Pack&Go function.

- 1/3-phase 220 V supply covering power range from 0.05 kW to 2 kW

- 3-phase 380 V supply covering the power range from 0.4 kW to 7 kW

- One drive system for external pulse position control, internal setpoint position control, speed control and torque control.

- Integrated USS, Modbus RTU communication.

- Standard braking resistors for all powers

- Real-time automation and harmonic suppression

- Supports speed pulse input up to 1 MHz

- 20 bit degree encoder

- Convenient commissioning software, user-friendly design, extensive commissioning functions, development of frequency converters

- Single-phase 230 V power range from 0.12 to 3 kW, three-phase 400 V power range from 0.37 to 30 kW, integrated V/f, V2/f, FCC control modes

- ECO energy saving mode, energy savings visible in real time through parameters

- Integrated USS, Modbus RTU communication.

- Built-in connection macros and application macros

- Parameter cloning and version upgrading without power supply.

- Special features such as frost protection, hibernation, capture restart, automatic restart, etc.

- 7.5 ~ 30 kW Integrated brake module, brake option available for other wattages.

- V20s of the same power level can be connected to a common DC busbar and share the same power.
