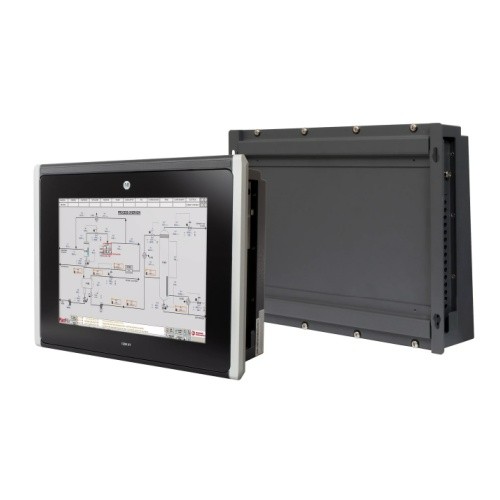

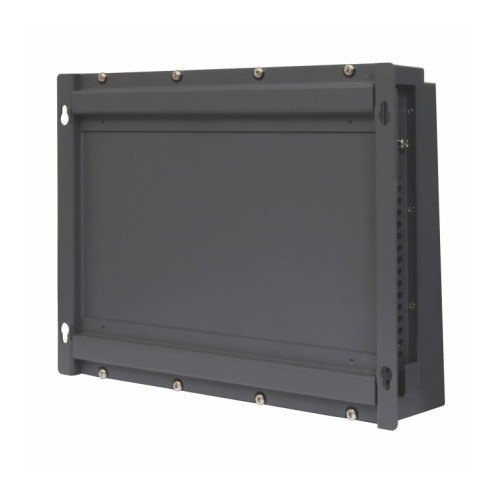

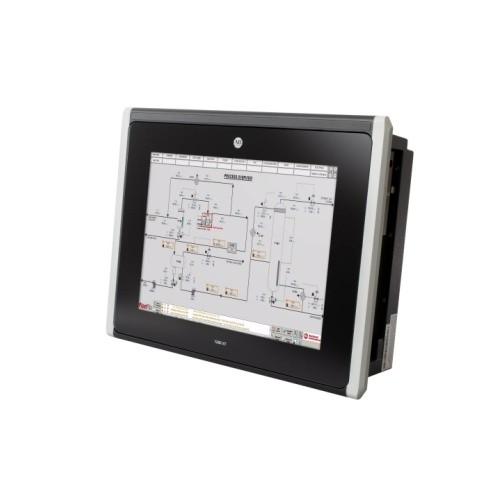

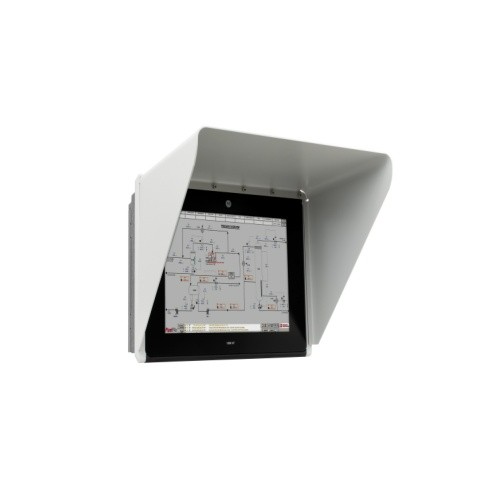

6181X Hazardous Location Integrated Display Computers and Thin Clients

Overview

• Certified for hazardous location use by cUL Class 1 Division 2 & Class 1 Zone 2, ATEX, UKEx, CCC Ex, and INMETRO

• Intel i3-1115GRE Dual Core, 2.2GHz, 11th Generation Tiger Lake

• Ships with a 256 GB, 512 GB or 1 TB solid state drive

• Includes one CompactFlash Type II card slot and one half-length PCIe x1 expansion slot

• DRAM options include 16GB, 32GB or 64GB

• Connectivity: 2x COM ports, 4x USB 3 ports, 2x 1 GB Ethernet Ports, 1 Display ports,  1 DVI port

• Includes cloning utility for system backup and restore

• Includes diagnostic utility for hardware analysis and system troubleshooting

• Available with Windows® 10 IoT Enterprise operating system and compatible with Windows 11 IoT Enterprise

• Trusted Platform Module (TPM) options include: hardware, firmware or none

• ThinManager-ready BIOS

• Operates in -20...55 °C (-4...131 °F) temperature range outside the cabinet (display side) and -20...70 °C (-4...158 °F) temperature range inside the cabinet (back side panel mount version and non-display versions)

• DC-powered (18 to 32 VDC)

• 6181X Projected Capacitive (PCAP) Additional Features

• Meets INMETRO certification standards in addition to IECEx, ATEX, and UL certifications

• Delivers a clean, intuitive multi-touch screen experience with projected capacitive display

• Incorporates settings for both thin and thick glove operation

• Provides 1300-nit 12.1” ultrabright LCD display with 100,000 hour service life at 25oC

• Offers dry to damp screen operation for indoor and outdoor use

• Ingress Protection ratings (Panel PC):  UL TYPE 1, 4, 4X, 12, 13 & IP66

• 6181X Thin Client Additional Features

• Dedicated thin client appliance

• No solid state drive or operating system for cost savings and easier administration

Product Selection

Catalog Number
