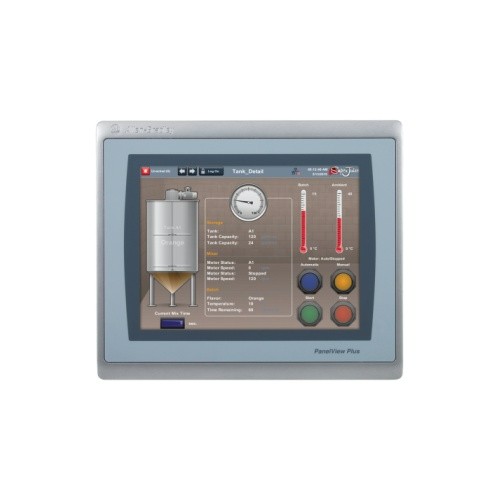

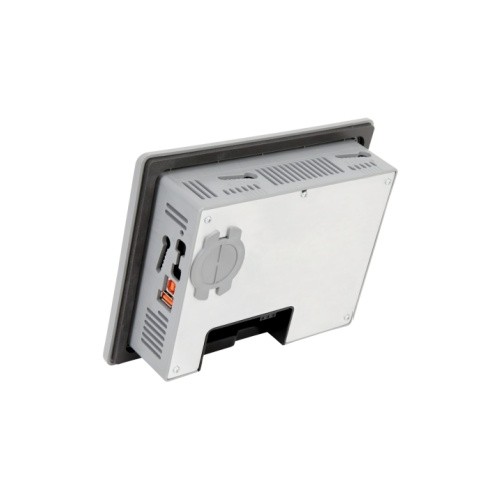

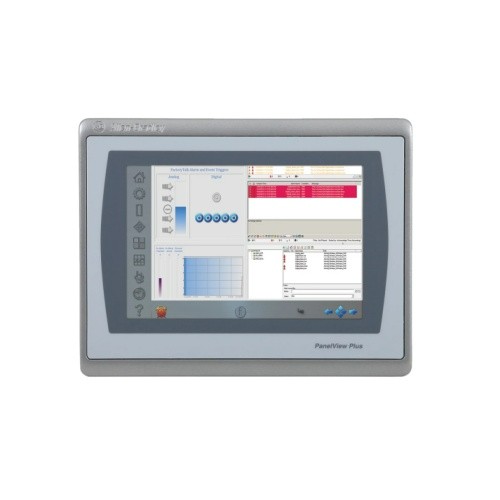

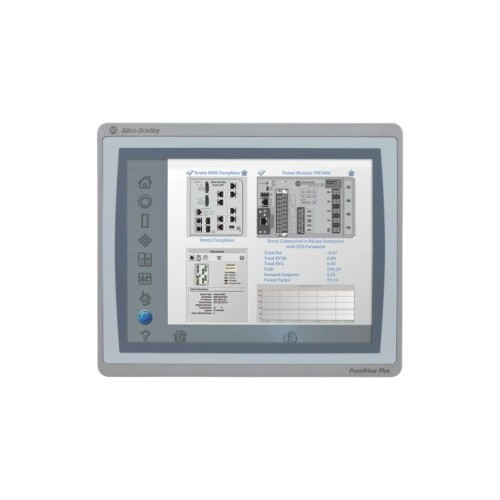

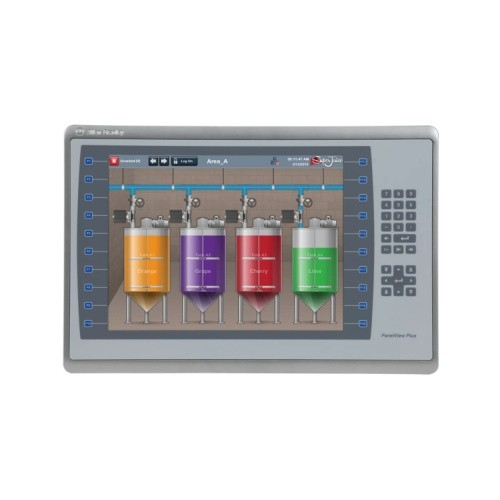

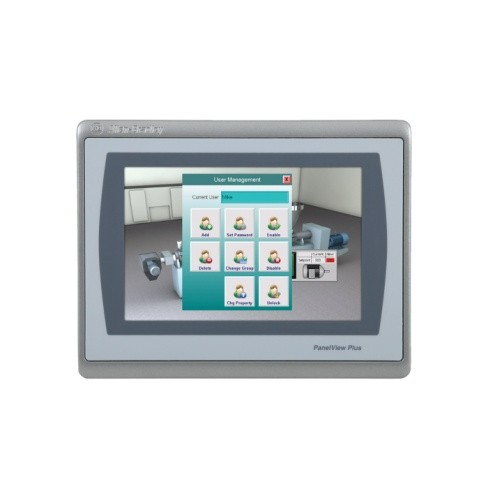

PanelView Plus 7

Overview

• PanelView Plus 7 Standard

•


• Includes Windows CE 6.0 standard features and color TFT LCD, 18-bit color graphics

• Offers display sizes from 4...15 in. with wide screen and keypad options

• Monitors applications from a remote location with VNC connectivity and FactoryTalk ViewPoint

• Uses an SD card or USB drive to quickly copy and restore the operator interface

• Includes email and texting notification capabilities

• Includes 512 MB RAM and 512 MB nonvolatile memory (approximately 80 MB free user memory)

• Offers 100 screens and 500 alarms when used with FactoryTalk Machine Edition software with connection to one controller

• Offers Ethernet 1 x RJ45 10/100 MB Auto-MDI/MDI-X with IEEE 1588 support

• Features single or DLR Ethernet ports for network connectivity

• Includes option for Allen‑Bradley® branded and brandless terminals

• PanelView Plus 7 Performance

•


• Includes Windows 10 IoT Core (LTSC) operating system and color TFT LCD, 18-bit color graphics

• Offers display sizes from 7...19 in. with wide screen and keypad options

• Includes video playback support, which provides advanced user help capabilities

• Monitors applications from a remote location with VNC connectivity and FactoryTalk ViewPoint

• Uses an SD card or USB drive to quickly copy and restore the operator interface

• Includes email and texting notification capabilities

• Includes 4GB RAM and 20GB nonvolatile memory (approximately 2GB free user memory)

• Features two Ethernet ports that support DLR, linear, or star network topologies

• Includes option for Allen‑Bradley branded and brandless terminals

• Conformally Coated Version

Available on all touch-only displays and 15 in. Keypad display

Severity Level GX per ANSI/ISA 71.04-2013

Stainless Steel Version

Offers brandless display in 9, 10, 12, and 15 in. sizes

Features stainless steel 316 bezel

Includes replaceable blue food-grade silicone gasket

Includes conformal coating

Features NSF certification

UL IP69 rated and tested to IP69K according to ISO 20653

ArmorView Plus 7 Version

Offers 12 in. display size in a fully enclosed panel

Features IP66 protection for a cabinet-free HMI solution

Offers sixteen standard button plate configurations

Includes option to individually customize buttons and switches

Features options to increase flexibility, including orientation mount options from either a swing arm, pedestal, or fixed surface
