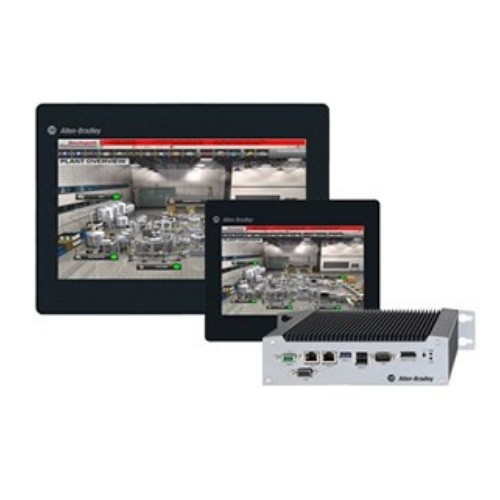

6200 VersaView 5400 Industrial Computer

Overview

Includes quad core Intel Atom E3845 CPU, 4 GB of RAM and a 128 GB solid-state drive
Supports Windows 7, WES 7, and Windows 10 operating systems
Non-Display
Includes Hazardous Location rated, UL Class 1 Div II, and ATEX 2/22 certifications
Provides dual external display output ports
Operates in environments that range from -20…60 °C
Mounting options include wall, VESA mount, DIN Rail, bookshelf and machine
Integrated Display
Display size and resolutions are:

12 in. widescreen: 1280x800
15 in. and 19 in. widescreen: 1366x768
22 in. widescreen: 1920x1080

Provides single external display output port
Operates in environments that range from 0…50 °C
Mounting options include panel and VESA mount
Includes edgeless glass design with ten-point, capacitive multi-touch screens

Product Selection

VersaView 5400 Panel PC

Catalog Number	Description	Accessories
6200P-12WS3A1	Industrial Computer, 12.1-inch Widescreen Display, Projected Capacitive Multi-Touch Screen, 128GB SSD, Dual Port Ethernet , Windows 7 Professional SP1 (64-bit), Single Display Output, No Pre-Installed Software, 24 VDC
6200P-12WS3B1	Industrial Computer, 12.1-inch Widescreen Display, Projected Capacitive Multi-Touch Screen, 128GB SSD, Dual Port Ethernet , Windows Embedded Standard 7 (64-bit), Single Display Output, No Pre-Installed Software, 24 VDC
6200P-12WS3C1	Industrial Computer, 12.1-inch Widescreen Display, Projected Capacitive Multi-Touch Screen, 128GB SSD, Dual Port Ethernet , Windows 10 IoT Enterprise (64-bit), Single Display Output, No Pre-Installed Software, 24 VDC
6200P-15WS3A1	Industrial Computer, 15.6-inch Widescreen Display, Projected Capacitive Multi-Touch Screen, 128GB SSD, Dual Port Ethernet , Windows 7 Professional SP1 (64-bit), Single Display Output, No Pre-Installed Software, 24 VDC
6200P-15WS3B1	Industrial Computer, 15.6-inch Widescreen Display, Projected Capacitive Multi-Touch Screen, 128GB SSD, Dual Port Ethernet , Windows Embedded Standard 7 (64-bit), Single Display Output, No Pre-Installed Software, 24 VDC
6200P-15WS3C1	Industrial Computer, 15.6-inch Widescreen Display, Projected Capacitive Multi-Touch Screen, 128GB SSD, Dual Port Ethernet , Windows 10 IoT Enterprise (64-bit), Single Display Output, No Pre-Installed Software, 24 VDC
6200P-19WS3A1	Industrial Computer, 18.5-inch Widescreen Display, Projected Capacitive Multi-Touch Screen, 128GB SSD, Dual Port Ethernet , Windows 7 Professional SP1 (64-bit), Single Display Output, No Pre-Installed Software, 24 VDC
6200P-19WS3B1	Industrial Computer, 18.5-inch Widescreen Display, Projected Capacitive Multi-Touch Screen, 128GB SSD, Dual Port Ethernet , Windows Embedded Standard 7 (64-bit), Single Display Output, No Pre-Installed Software, 24 VDC
6200P-19WS3C1	Industrial Computer, 18.5-inch Widescreen Display, Projected Capacitive Multi-Touch Screen, 128GB SSD, Dual Port Ethernet , Windows 10 IoT Enterprise (64-bit), Single Display Output, No Pre-Installed Software, 24 VDC
6200P-22WS3A1	Industrial Computer, 21.5-inch Widescreen Display, Projected Capacitive Multi-Touch Screen, 128GB SSD, Dual Port Ethernet , Windows 7 Professional SP1 (64-bit), Single Display Output, No Pre-Installed Software, 24 VDC
6200P-22WS3B1	Industrial Computer, 21.5-inch Widescreen Display, Projected Capacitive Multi-Touch Screen, 128GB SSD, Dual Port Ethernet , Windows Embedded Standard 7 (64-bit), Single Display Output, No Pre-Installed Software, 24 VDC
6200P-22WS3C1	Industrial Computer, 21.5-inch Widescreen Display, Projected Capacitive Multi-Touch Screen, 128GB SSD, Dual Port Ethernet , Windows 10 IoT Enterprise (64-bit), Single Display Output, No Pre-Installed Software, 24 VDC

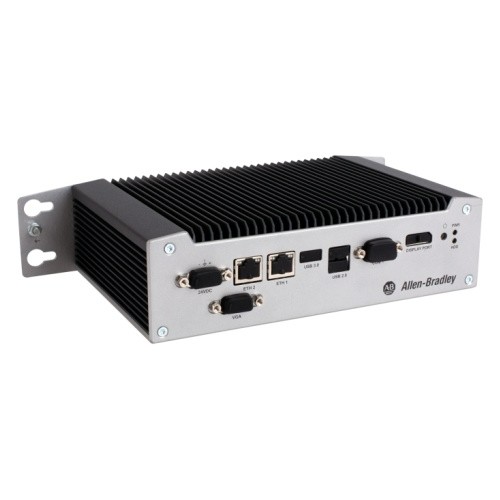

VersaView 5400 Box PC

Catalog Number	Description	Accessories
6200P-NS3A1	Industrial Computer, Non-Display, 128GB SSD, Dual Port Ethernet, Windows 7 Professional SP1 (64-bit),Dual Display Output, No Pre-Installed Software, 24 VDC
6200P-NS3B1	Industrial Computer, Non-Display, 128GB SSD, Dual Port Ethernet, Windows Embedded Standard 7 (64-bit),Dual Display Output, No Pre-Installed Software, 24 VDC
6200P-NS3C1	Industrial Computer, Non-Display, 128GB SSD, Dual Port Ethernet, Windows 10 IoT Enterprise (64-bit),Dual Display Output, No Pre-Installed Software, 24 VDC
6200P-NS3A1K	Industrial Computer, Non-Display, 128GB SSD, Dual Port Ethernet, Windows 7 Professional SP1 (64-bit),Conformal Coated,Dual Display Output, No Pre-Installed Software, 24 VDC
6200P-NS3B1K	Industrial Computer, Non-Display, 128GB SSD, Dual Port Ethernet, Windows Embedded Standard 7 (64-bit),Conformal Coated,Dual Display Output, No Pre-Installed Software, 24 VDC
6200P-NS3C1K	Industrial Computer, Non-Display, 128GB SSD, Dual Port Ethernet, Windows 10 IoT Enterprise (64-bit),Conformal Coated,Dual Display Output, No Pre-Installed Software, 24 VDC

VersaView 5000 Accessories

Catalog Number	Description	Accessories
6200V-DPVGA2	DisplayPort to VGA Adaptor
6200V-VGACBL2M	VGA to VGA Cable, 2m
6200V-DCCONN	DC Power Connector Assembly Kit
6200V-MCLPS4	Replacement Mounting Clip Kit, 14 clips
6200V-BXDIN	Box PC/Thin Client DIN Rail Mounting Kit
6200V-BXDIN2	VersaView 5200 Single-Display DIN Rail Bracket
6200V-BXWALL	Box PC/Thin Client Wall Mounting Kit, Replacement
6200V-BXWALL2	VersaView 5200 Single-Display Wall Bracket
6200V-BXMACH	Box PC/Thin Client Machine Mounting Kit
6200V-BXLGCY	Box PC/Thin Client Legacy Mounting Kit
6200V-BXVESA	Box PC/Thin Client VESA Mounting Kit
6200V-BXVESA2	VersaView 5200 Single-Display VESA Bracket
6200V-BXMACH2	VersaView 5200 Multi 4K Machine Mounting Kit
6200V-MDP2HDMI4K	VersaView 5200 mDP to HDMI Adapter
6200V-DPHDMI4K	VersaView Accessory Display Port to HDMI
6200V-MPS4	External AC/DC Power Adaptor, 90W
