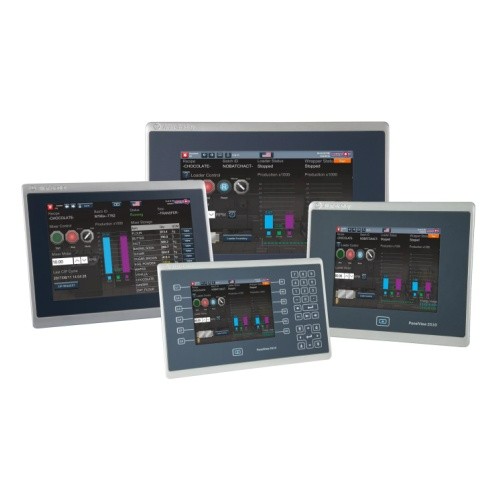

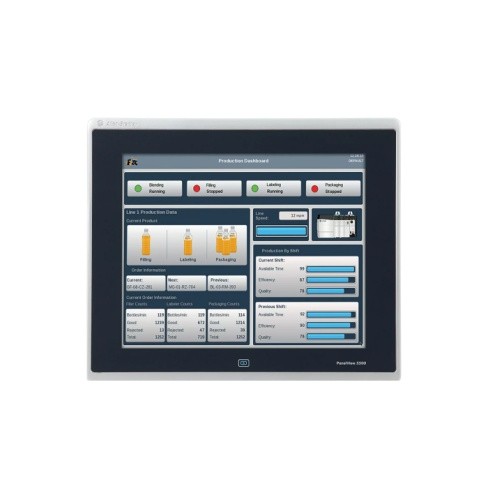

PanelView 5000 Graphic Terminals

Overview

• Includes Logix-based alarms to eliminate need for additional configuration

• Features automatic diagnostics that annunciate faults in capable field devices with no user programming

• Achieves <100 ms response for machine jogging applications with a high-speed HMI button

• Provides Logix tag extended property support to help develop richer context

• Features a modern design with a slim, aluminum bezel

• Allows for the ability to create custom, re-usable add-on graphics to more efficiently build your applications

• Shares tags, alarms, and other data using Studio 5000 View Designer™ environment automatically

• Offers emulator to test run a project without downloading to a physical terminal

• Uses a built-in VNC server to support a remote VNC client for monitoring and troubleshooting

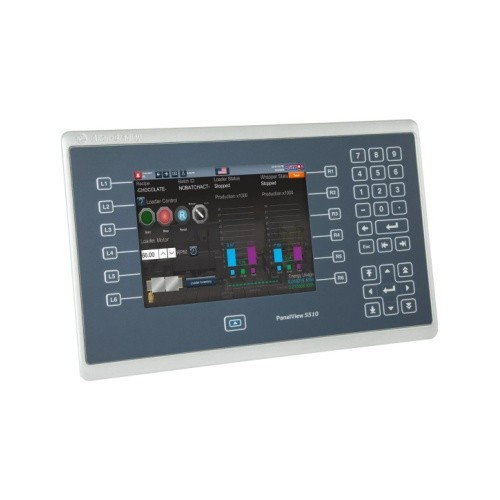

• PanelView 5510 Graphic Terminals

• Offers visualization solution for larger applications

• Offers display sizes from 7...19 in. with wide screen, touch, and keypad options

• Supports 500 screens, connection to four controllers, and up to 4000 tag-based alarms per controller

• Provides 1.46 GHz dual-core processor, 1 Gb RAM, 4 Gb flash

• Features HTML5-compatible browser that can display websites, videos and IP camera streams

• Offers IP69K rating for hygienic environments in stainless steel, conformally coated models

• Certified for marine and offshore applications

• PanelView 5310 Graphic Terminals


• Offers a right-sized visualization solution for smaller applications

• Offers wide screen display sizes from 6...12 in.

• Supports 100 screens, connection to one controller, and 4000 tag-based alarms

• Provides 1.46 GHz processor, 1 Gb RAM, 4 Gb flash
