ArmorPOINT I/O Modules

Our 1738 ArmorPOINT I/O modules provide a wide range of input and output modules to span many applications, from high-speed digital to process control. ArmorPOINT I/O supports producer/consumer technology, which lets input information and output status to be shared among multiple Logix controllers.

Overview

Includes digital, analog and specialty I/O

Available with DeviceLogix technology

Densities range from two…eight points per module

Interfaces up to 63 modules for up to 252 I/O points per network

Powered from the backplane by the communication module or expansion power supply

Digital I/O Modules

Wide variety of AC and DC voltages
Input, output and relay output modules
On the configurable modules, each point can be either a DC input or output
Isolated and non-isolated module types
Point-level and field-side diagnostics on select modules
Choice of direct-connect or rack-optimized communications

Analog I/O Modules

Includes thermocouple and RTD modules
Up to four single-ended inputs or outputs per module
On-board, channel-level data alarming (four setpoints per channel)
Scaling to engineering units
Channel-level diagnostics (electronic bits and status indicators)

Specialty I/O Modules

Counter module
Synchronous Serial Interface (SSI) module
Serial interface modules (RS-232, RS-485/RS-422)

Product Selection

Catalog Number	Description
1738 ArmorPoint Digital I/O Modules
1738-8CFGDLXM23	1738 ArmorPoint Digital I/O Modules, DC, Self Configuring Module, 8 Configurable Sinking Inputs or Sourcing Outputs w/ DeviceLogix, M23
1738-8CFGDLXM8	1738 ArmorPoint Digital I/O Modules, DC, Self Configuring Module, 8 Configurable Sinking Inputs or Sourcing Outputs w/ DeviceLogix, Pico 3-Pin
1738-8CFGM23	1738 ArmorPoint Digital I/O Modules, DC, Self Configuring Module, 8 Configurable Sinking Inputs or Sourcing Outputs, M23
1738-8CFGM8	1738 ArmorPoint Digital I/O Modules, DC, Self Configuring Module, 8 Configurable Sinking Inputs or Sourcing Outputs, Pico 3-Pin
1738-IA2M12AC3	1738 ArmorPoint Digital I/O Modules, AC, Input Module, 2, AC Micro 3-Pin
1738-IA2M12AC4	1738 ArmorPoint Digital I/O Modules, AC, Input Module, 2, AC Micro 4-Pin
1738-IB16DM12	1738 ArmorPoint Digital I/O Modules, DC, Input Module, 16 Sink Inputs W/ Diagnostics, DC Mirco (M12)
1738-IB8M12	1738 ArmorPoint Digital I/O Modules, DC, Input Module, 8 Sink Inputs (Source Load), DC Mirco (M12)
1738-IB8M23	1738 ArmorPoint Digital I/O Modules, DC, Input Module, 8 Sink Inputs (Source Load), M23
1738-IB8M8	1738 ArmorPoint Digital I/O Modules, DC, Input Module, 8 Sink Inputs (Source Load), Pico 3-Pin
1738-OA2M12AC3	1738 ArmorPoint Digital I/O Modules, AC, Output Module, 2, AC Micro 3-Pin
1738-OB16E19M23	1738 ArmorPoint Digital I/O Modules, DC, Output Module, 16 Source Output, M23
1738-OB16E25DS	1738 ArmorPoint Digital I/O Modules, DC, Output Module, 16 Source Output, D-shell
1738-OB16EM12	1738 ArmorPoint Digital I/O Modules, DC, Output Module, 16 Source Output, DC Mirco (M12)
1738-OB2EPM12	1738 ArmorPoint Digital I/O Modules, DC, Output Module, 2 Source Outputs, 4.0 A Per Module, 2.0 A Per Channel, DC Mirco (M12)
1738-OB8EM12	1738 ArmorPoint Digital I/O Modules, DC, Output Module, 8 Source Outputs, 2.0 A Per Module, 1.0 A Per Channel, DC Mirco (M12)
1738-OB8EM23	1738 ArmorPoint Digital I/O Modules, DC, Output Module, 8 Source Outputs, 2.0 A Per Module, 1.0 A Per Channel, M23
1738-OB8EM8	1738 ArmorPoint Digital I/O Modules, DC, Output Module, 8 Source Outputs, 2.0 A Per Module, 1.0 A Per Channel, Pico 3-Pin
1738-OV4EM12	1738 ArmorPoint Digital I/O Modules, DC, Output Module, 4 Sink Outputs, 2.0 A Per Module, 1.0 A Per Channel, DC Mirco (M12)
1738-OW4M12	1738 ArmorPoint Digital I/O Modules, DC, Output Module, 4 Form A (N.O.) Relays, Isolated, DC Mirco (M12)

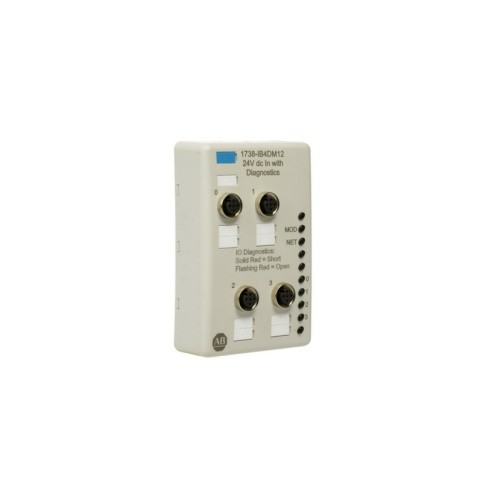

1738-IB4DM12	1738 ArmorPoint Digital I/O Modules, DC, Input Module, 4 Sink Inputs W/ Diagnostics, DC Mirco (M12)
1738-IV8M12	1738 ArmorPoint Digital I/O Modules, DC, Input Module, 8 Source Outputs (Sink Load), DC Mirco (M12)
1738 ArmorPoint Analog I/O Modules
1738-IE2CM12	1738 ArmorPoint Analog I/O Modules, Input, 2 Single-Ended (Current), DC Micro (M12)
1738-IE2VM12	1738 ArmorPoint Analog I/O Modules, Input, 2 Single-Ended (Voltage), DC Micro (M12)
1738-IE4CM12	1738 ArmorPoint Analog I/O Modules, Input, 4 Single-Ended (Current), DC Micro (M12)
1738-IR2M12	1738 ArmorPoint Analog I/O Modules, Input, 2 Single-Ended RTD, DC Micro (M12)
1738-IT2IM12	1738 ArmorPoint Analog I/O Modules, Input, 2 Single-Ended Thermocouple, Millivolt, DC Micro (M12)
1738-OE2CM12	1738 ArmorPoint Analog I/O Modules, Output, 2 Single-Ended (Current), DC Micro (M12)
1738-OE2VM12	1738 ArmorPoint Analog I/O Modules, Output, 2 Single-Ended (Voltage), DC Micro (M12)
1738-OE4CM12	1738 ArmorPoint Analog I/O Modules, Output, 4 Single-Ended (Current), DC Micro (M12)
1738 ArmorPoint Specialty I/O Modules
1738-232ASCM12	1738 ArmorPoint Specialty I/O Modules, Serial Module, Serial Interface Channel, RS232, DC Micro (M12)
1738-485ASCM12	1738 ArmorPoint Specialty I/O Modules, Serial Module, Serial Interface Channel RS485, RS422, DC Micro (M12)
1738-IJM23	1738 ArmorPoint Specialty I/O Modules, Counter Module, 5V DC Counter, M23
1738-SSIM23	1738 ArmorPoint Specialty I/O Modules, Serial Module, Synchronous Serial Interface Channel, M23
1738-VHSC24M23	1738 ArmorPoint Specialty I/O Modules, Counter Module, 24V DC Counter, M23
1738 ArmorPoint Bus Extention Bases
1738-EXT1	ArmorPoint Bus Extention Bases, ArmorPoint 1 Meter Bus Extention Base
1738-EXT3	ArmorPoint Bus Extention Bases, ArmorPoint 3 Meter Bus Extention Base
1738 ArmorPoint Communication Adaptors
1738-ACNR	1738 ArmorPoint Communication Adaptor, ControlNet, TNC Connector ,Input Voltage Range: 10-28V DC Field Side Power Requirements: 24 V DC (+20% = 28.8V DC) @ 425mA - 8.0W Power Consumption(W) at 24V: 8.0W Inrush Current: 6 A for 10ms Power Dissipation, Max.: 2.8 W @ 28.8 V
1738-ADN12	1738 ArmorPoint Communication Adaptor, DeviceNet, M12 Quick-Disconnect ,Input Voltage Range: 10-28V DC Field Side Power Requirements: 24 V DC (+20% = 28.8V DC) @ 400mA -8.0W Power Consumption(W) at 24V: 8.0W Inrush Current: 6 A for 10ms Power Dissipation, Max.: 2.8 W @ 28.8 V
1738-ADN18	1738 ArmorPoint Communication Adaptor, DeviceNet, Mini Connector - Drop ,Input Voltage Range: 10-28V DC Field Side Power Requirements: 24 V DC (+20% = 28.8V DC) @ 400mA - 8.0W Power Consumption(W) at 24V: 8.0W Inrush Current: 6 A for 10ms Power Dissipation
1738 Field Power Distributor
1738-EP24DC	1738 Field Power Distributor, 10...28.8V DC
1738-FPD	1738 Field Power Distributor, 5...150V DC, 54...240V DC
