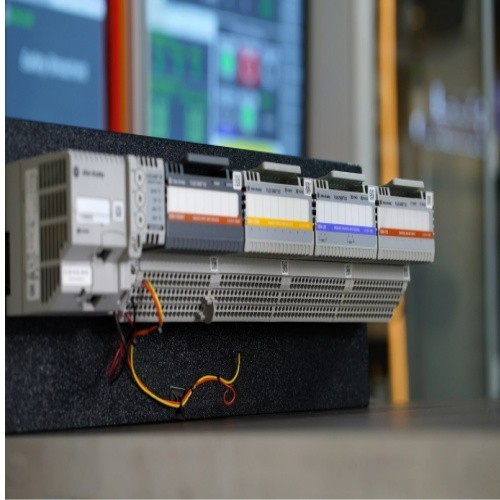

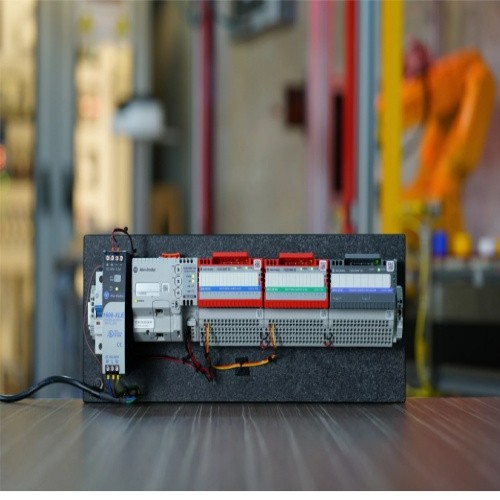

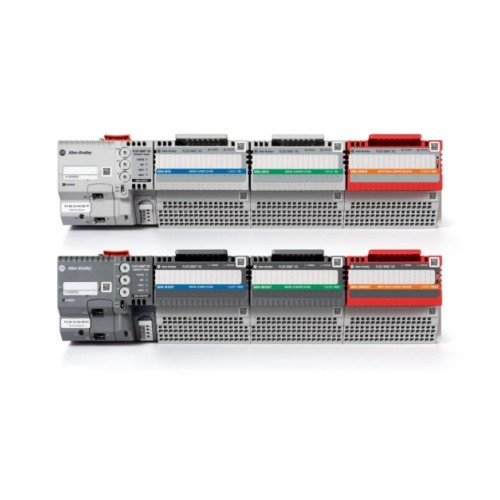

Our FLEX 5000 I/O modules are a rugged and flexible distributed I/O solution, which allows you to choose your I/O to meet your operational needs. FLEX 5000 I/O enhances communication with 1 Gb EtherNet/IP connectivity, which offers higher speed and increased bandwidth. To provide flexibility in your network architecture, these modules include 2 copper or 2 fiber ports (SFP) and support for DLR, Star, Linear, and PRP topologies.
Overview
Reduces system costs and complexity with the flexibility to mix and match standard and safety I/O modules in one platform
Offers true integrated safety with discrete and analog fail-safe I/O modules, TÜV certified up to SIL 3, PLe, Cat. 4, with up to 10 ms safety reaction time
Enhances communication with 1 Gb EtherNet/IP connectivity through copper or fiber, with SFP adapters
Supports a wide range of network topologies: Device Level Ring (DLR), Star, Linear, and Parallel Redundancy Protocol (PRP)
Optimizes footprint with horizontal or vertical installation and interconnect cable extension
Provides direct fiber connection to the adapter with the option to connect up to 16 modules per adapter

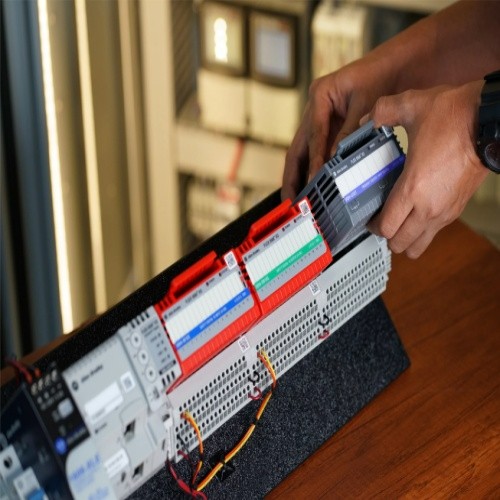

Allows users to replace modules while the system is in operation with easy snap-on installation via Removal and Insertion Under Power (RIUP)
Offers flexible and modular capability to support up to 32-channel digital and 8-channel analog input/output
Operates in -40…+70 °C (-40...+158 °F) temperatures and in hazardous areas in Class I, Division 2, Zone 2, Groups A, B, C, D
Allows for use in extreme environments with XT version up to G3 with conformal coating, which helps protect against environmental stresses
Offers the ability of reporting frequency, acceleration and directions with isolated-frequency input modules
Functions as remote I/O modules with ControlLogix 5580, CompactLogix 5380 and CompactLogix 5480 standard controllers and with GuardLogix 5580 and Compact GuardLogix 5380 safety controllers
Supports ControlLogix 5580 controller redundancy (in DLR and PRP network topologies) for high availability applications from Studio 5000 Logix Designer application version 33 or later
Ideal for Hybrid and Process applications such as emergency shutdown, burner management, turbine control, compressor control, oil and gas auxiliary boilers, high-pressure protection, lighting, and ventilation management
Product Selection
Catalog Number | Description |
5094-AEN2SFPR | 5094 Ethernet/IP SFP Adapter 16 Modules |
5094-AEN2SFPRXT | 5094XT Ethernet/IP SFP Adapter 16 Modules |
5094-AEN2TR | 5094 Ethernet Adapter 16 Modules RJ45 |
5094-AEN2TRXT | 5094XT Ethernet Adapter 16 Modules RJ45 |
5094-AENRTB-QTY5 | 5094 Adapter RTB Screw -Pack of 5 |
5094-AENRTBS-QTY5 | 5094 Adapter RTB Spring -Pack of 5 |
5094-AENSFPR | 5094 Ethernet/IP SFP Adapter 8 Modules |
5094-AENSFPRXT | 5094XT Ethernet/IP SFP Adapter 8 Modules |
5094-AENTR | 5094 Ethernet Adapter 8 Modules RJ45 |
5094-AENTRXT | 5094XT Ethernet Adapter 8 Modules RJ45 |
5094-CE05 | 5094 Inter-Connect Cable 0.5 meter |
5094-CE10 | 5094 Inter-Connect Cable 1 Meter |
5094-CE30 | 5094 Inter-Connect Cable 3 Meter |
5094-ECR-QTY5 | 5094-ECR-QTY5 |
5094-HSC | 5094 High Speed Counter |
5094-HSCXT | 5094XT High Speed Counter |
5094-IA16 | 5094 Digital 16 Input 120 VAC |
5094-IA16XT | 5094XT Digital 16 Input 120 VAC |
5094-IB16 | 5094 Digital 16 Input |
5094-IB16S | 5094 Safety Digital 16 Input |
5094-IB16SXT | 5094XT Safety Digital 16 Input |
5094-IB16XT | 5094XT Digital 16 Input |
5094-IB32 | 5094 Digital 32 Input 24 VDC |
5094-IB32XT | 5094XT Digital 32 Input 24 VDC |
5094-IF4IHS | 5094 Safety Analog Input HART 4 Channel |
5094-IF4IHSXT | 5094XT Safety Analog Input HART 4 Channel |
5094-IF8 | 5094 Analog 8 Input |
5094-IF8IH | 5094 Analog 8 Input Isolated HART |
5094-IF8IHXT | 5094XT Analog 8 Input Isolated HART |
5094-IF8XT | 5094XT Analog 8 Input |
5094-IM8 | 5094 Digital 8 Input 240 VAC |
5094-IM8XT | 5094XT Digital 8 Input 240 VAC |
5094-IY8 | 5094 Universal Analog 8 Input |
5094-IY8XT | 5094XT Universal Analog 8 Input |
5094-MB | 5094 Mounting Base |
5094-MBXT | 5094XT Mounting Base |
5094-N2 | 5094 Filler Module |
5094-OA16 | 5094 Digital 16 Output 120/240 VAC |
5094-OA16XT | 5094XT Digital 16 Output 120/240 VAC |
5094-OB16 | 5094 Digital 16 Output |
5094-OB16S | 5094 Safety Digital 16 Output |
5094-OB16SXT | 5094XT Safety Digital 16 Output |
5094-OB16XT | 5094XT Digital 16 Output |
5094-OB32 | 5094 Digital 32 Output 24 VDC |
5094-OB32XT | 5094XT Digital 32 Output 24 VDC |
5094-OB8 | 5094 Digital 8 Output 24 VDC |
5094-OF8IH | 5094 Analog 8 Output Isolated HART |
5094-OF8IHXT | 5094XT Analog 8 Output Isolated HART |
5094-OF8XT | 5094XT Analog 8 Output |
5094-OW4IS | 5094 Safety Relay 4 Output Isolated |
5094-OW4ISXT | 5094XT Safety Relay 4 Output Isolated |
5094-OW8I | 5094 Relay 8 Output Isolated |
5094-OW8IXT | 5094XT Relay 8 Output Isolated |
5094-SERIAL | 5094 Serial Module |
5094-SERIALXT | 5094XT Serial Module |
5094-RTB3 | 5094 RTB Screw |
5094-RTB32C | 5094 RTB 32 Output Screw |
5094-RTB32CS | 5094 RTB 32 Output Spring |
5094-RTB32CXT | 5094XT RTB 32 Output Screw |
5094-RTB32V | 5094 RTB 32 Input Screw |
5094-RTB32VS | 5094 RTB 32 Input Spring |
5094-RTB32VSXT | 5094XT RTB 32 Input Spring |
5094-RTB32VXT | 5094XT RTB 32 Input Screw |
5094-RTB3AC | 5094 RTB AC Screw |
5094-RTB3ACS | 5094 RTB AC Spring |
5094-RTB3ACSXT | 5094XT RTB AC Spring |
5094-RTB3ACXT | 5094XT RTB AC Screw |
5094-RTB3I | 5094 RTB Isolated Screw |
5094-RTB3IS | 5094 RTB Isolated Spring |
5094-RTB3ISXT | 5094XT RTB Isolated Spring |
5094-RTB3IXT | 5094XT RTB Isolated Screw |
5094-RTB3S | 5094 RTB Spring |
5094-RTB3SXT | 5094XT RTB Spring |
5094-RTB3T | 5094 RTB CJC Screw |
5094-RTB3TS | 5094 RTB CJC Spring |
5094-RTB3TSXT | 5094XT RTB CJC Spring |
5094-RTB3TXT | 5094XT RTB CJC Screw |
5094-RTB3W | 5094 RTB Relay Screw |
5094-RTB3WS | 5094 RTB Relay Spring |
5094-RTB3WSXT | 5094XT RTB Relay Spring |
5094-RTB3WXT | 5094XT RTB Relay Screw |
5094-RTB3XT | 5094XT RTB Screw |
5094-SAJMPR-QTY10 | 5094 SA Power Jumper Screw - Pack of 10 |
5094-STB-QTY5 | 5094 Shield RTB Screw - Pack of 5 |
