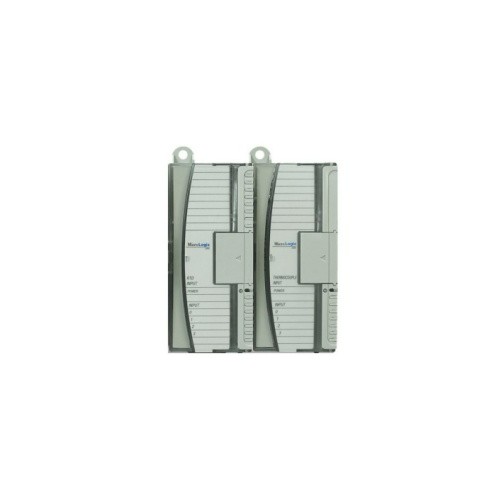

MicroLogix Expansion I/O Modules

Our 1762 MicroLogix Expansion I/O Modules extend the capabilities of the MicroLogix 1100, 1200, and 1400 controllers by maximizing flexibility of the I/O count and type. The modular, rackless design enhances cost savings and reduces replacement parts inventory. Modules can be either DIN Rail or panel mounted.

EMAIL


Overview


Feature-rich functionality addresses a wide range of applications

Network support includes EtherNet/IP, DeviceNet, and DH-485 (local only)

Software keying prevents incorrect positioning within the system

Finger-safe terminal blocks for I/O wiring

Small footprint reduces panel space

Integrated high-performance I/O bus

Label to record I/O terminal designations

Digital, analog, and specialty I/O modules available

1762 MicroLogix™ Digital Expansion I/O Modules


8, 16, or 32 inputs or outputs

AC and DC voltages

Combination module with 8 inputs and 6 contact outputs

AC/DC relay output modules

1762 MicroLogix Analog Expansion I/O Modules


Input module with 4 differential inputs

Output module with 4 single-ended outputs

Combination module with 2 differential inputs and 2 single-ended outputs

1762 MicroLogix Specialty Expansion I/O Modules


RTD module with 4 input channels

Thermocouple module with 4 input channels plus a CJC sensor

Maximum Number of Expansion I/O Modules per Controller:



Controller
I/O Modules, Max.
MicroLogix 1100                                           4
MicroLogix 12006
MicroLogix 14007



Product Selection

Catalog Number

Description

1762-IA8

1762 MicroLogix 1200 System, 8 Point 120 VAC Input Module

1762-IF2OF2

1762 MicroLogix 1200 System, 4 Channel Analog Combo Module

1762-IF4

1762 MicroLogix 1200 System, 4 Channel Current/Voltage Analog Input Module

1762-IQ16

1762 MicroLogix 1200 System, 16 Point 24 VDC Sink/Source Input Module

1762-IQ32T

1762 MicroLogix 1200 System, 32 Point 24 VDC Sink/Source Input Module

1762-IQ8

1762 MicroLogix 1200 System, 8 Point 24 VDC Sink/Source Input Module

1762-IQ8OW6

1762 MicroLogix 1200 System, 8 Point 24 VDC Sink/Source Input/6 Point VAC/VDC Relay Output Combination Module

1762-IR4

1762 MicroLogix 1200 System, MicroLogix 4 Point Module

1762-IT4

1762 MicroLogix 1200 System, 4 Channel, Thermocouple/Mv Module

1762-L24AWA

1762 MicroLogix 1200 System, MicroLogix 1200, 120/240V ac power, (14) 120V ac digital inputs, (10) relay outputs

1762-L24AWAR

1762 MicroLogix 1200 System, MicroLogix 1200, 120/240V ac power, (14) 120V ac digital inputs, (10) relay outputs, with Programming/HMI Port

1762-L24BWA

1762 MicroLogix 1200 System, MicroLogix 1200, 120/240V ac power, (10) standard 24V dc and (4) Fast 24V dc digital inputs, (10) relay outputs

1762-L24BWAR

1762 MicroLogix 1200 System, MicroLogix 1200, 120/240V ac power, (10) standard 24V dc and (4) Fast 24V dc digital inputs, (10) relay outputs, with Programming/HMI Port

1762-L24BXB

1762 MicroLogix 1200 System, MicroLogix 1200, 24V dc power, (10) standard 24V dc and (4) fast 24V dc digital inputs, (5) relay outputs, (4) standard 24V dc FET outputs, (1) fast 24V dc FET output

1762-L24BXBR

1762 MicroLogix 1200 System, MicroLogix 1200, 24V dc power, (10) standard 24V dc and (4) fast 24V dc digital inputs, (5) relay outputs, (4) standard 24V dc FET outputs, (1) fast 24V dc FET output, with Programming/HMI Port

1762-L40AWA

1762 MicroLogix 1200 System, MicroLogix 1200, 120/240V ac power, (24) 120V ac digital inputs, (16) relay outputs

1762-L40AWAR

1762 MicroLogix 1200 System, MicroLogix 1200, 120/240V ac power, (24) 120V ac digital inputs, (16) relay outputs, with Programming/HMI Port

1762-L40BWA

1762 MicroLogix 1200 System, MicroLogix 1200, 120/240V ac power, (20) standard 24V dc and (4) Fast 24V dc digital inputs, (16) relay outputs

1762-L40BWAR

1762 MicroLogix 1200 System, MicroLogix 1200, 120/240V ac power, (20) standard 24V dc and (4) Fast 24V dc digital inputs, (16) relay outputs, with Programming/HMI Port

1762-L40BWAR

1762 MicroLogix 1200 System, MicroLogix 1200, 120/240V ac power, (20) standard 24V dc and (4) Fast 24V dc digital inputs, (16) relay outputs, with Programming/HMI Port

1762-L40BXB

1762 MicroLogix 1200 System, MicroLogix 1200, 24V dc power, (20) standard 24V dc and (4) fast 24V dc digital inputs, (8) relay outputs, (7) standard 24V dc FET outputs, (1) fast 24V dc FET output

1762-L40BXBR

1762 MicroLogix 1200 System, MicroLogix 1200, 24V dc power, (20) standard 24V dc and (4) fast 24V dc digital inputs, (8) relay outputs, (7) standard 24V dc FET outputs, (1) fast 24V dc FET output, with Programming/HMI Port

1762-MM1

1762 MicroLogix 1200 System, Memory Module

1762-MM1RTC

1762 MicroLogix 1200 System, Combination Memory/Real Time Clock Module

1762-OA8

1762 MicroLogix 1200 System, 8 Point 120/240 VAC Output Module

1762-OB16

1762 MicroLogix 1200 System, 16 Point 24 VDC Source Output Module

1762-OB32T

1762 MicroLogix 1200 System, 32 Point 24 VDC Source Output Module

1762-OB81762 MicroLogix 1200 System, 8 Point 24 VDC Source Output Module

1762-OB8

1762 MicroLogix 1200 System, 8 Point 24 VDC Source Output Module

1762-OF4

1762 MicroLogix 1200 System, 4 Channel Analog Output Module

1762-OV32T

1762 MicroLogix 1200 System, 32 Point 24 VDC Sink Output Module

1762-OW16

1762 MicroLogix 1200 System, 16 Point VAC/VDC Relay Output Module

1762-OW8

 1762 MicroLogix 1200 System, 8 Point VAC/VDC Relay Output Module

1762-OX6I

1762 MicroLogix 1200 System, 6 Point 24 VDC Isolated High Current Relay Output Module

1762-RTC

1762 MicroLogix 1200 System, Real Time Clock Module
