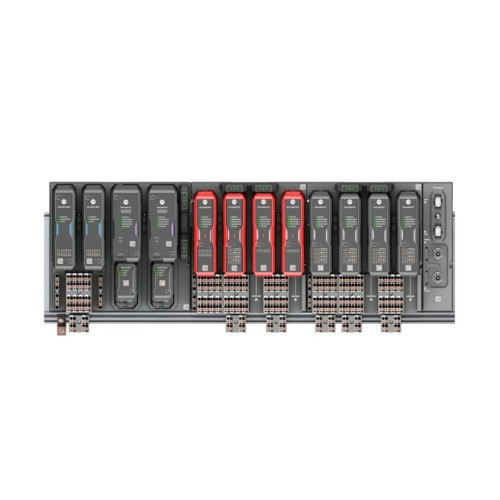

FLEXHA 5000 I/O Module High Availability Distributed I/O

Our 5015 FLEXHA 5000 I/O modules are part of a cutting edge platform that can help you reduce hardware complexity and cost by using a more convenient integrated design.

FLEXHA 5000 I/O modules enhance communication with 1 Gb EtherNet/IP network connectivity, offering higher speed and increased bandwidth. Reducing both downtime and engineering time while limiting costs, this platform is designed to be a smarter, more efficient I/O solution.

Flexible I/O platform enabling integrated control for your

Connected Enterprise production system

Flexibility in Design and Maintenance

Reduce downtime with simplified Removal and Insertion Under Power (RIUP) and easy online changes.

Ready for Process Applications

Gain support for ControlLogix 5580 controller redundancy in high availability applications from Studio 5000 Logix Designer software (version 35 or later) and deliver more consistent operations with increased reliability.

Universal I/O Option

Flexible I/O choice that is configurable per channel within Studio 5000 software (version 35 or later) as analog (HART capable) or discrete, input or output.

Features and Benefits

Optimize footprint by mounting up to 24 I/O modules on a single node, vertically or horizontally, and in any module sequence

Operate at -40…+70 °C (-40…+158 °F) temperatures and in extreme environments up to GX rating with conformal coating

Use in hazardous areas under Class I, Division 2, Zone 2, and Groups A, B, C, D

Reduce downtime with simplified Removal and Insertion Under Power (RIUP) and easy online changes

Reduce downtime with easy access to additional process diagnostics via HART Premier Integration in Studio 5000 Logix Designer software

Save engineering time through tight integration with instruction set in the PlantPAx system

Features a universal card option that allows for flexibility in I/O choice. This I/O choice is configurable per channel within Studio 5000 software (version 35 or later) as analog (HART capable) or discrete, input or output

Available in simplex or duplex module configurations

Product Selection

Catalog Number	Description
5015-A2AKITXT	Adapter Base Kit, FLEXHA 5000, XT Accessory, includes (1) Adapter Base, (2) Adapters, (2) Power Conditioners, (2) PC RTB, (2) Interface Modules, (1) GND Lug (1) End Cap (1) RTB for Diagnostics, (1) SA Filler.
5015-A2AXT	Adapter Base, FLEXHA 5000, XT Accessory. Capable of holding (2) Power Conditioners, (2) Adapters, (2) Media Landing Cards, (2) Backplane Interface Cards, (16) Diagnostic Inputs, (2) PC RTBs.
5015-A4IOKITXT	4-slot I/O Base Kit, FLEXHA 5000, XT Accessory, includes (1) 4 Slot Base, (2) Backplane Interface Modules.
5015-A4IOXT	4-slot I/O Base, FLEXHA 5000, XT Accessory.
5015-AENFTXT	Adapter, FLEXHA 5000, EtherNet/IP, Comm Status LEDs, Diagnostic Module, Fault Tolerant Capable and XT.
5015-BEBLXT	Bank Expansion Base, FLEXHA 5000, XT Accessory, Left End.
5015-BEBRXT	Bank Expansion Base, FLEXHA 5000, XT Accessory, Right End.
5015-BECCOMXT	(1) Bank Expansion Cable Comms, FLEXHA 5000, XT Accessory.
5015-BECPWRXT	(1) Bank Expansion Cable Power, FLEXHA 5000, XT Accessory.
5015-BEKITXT	Bank Expansion Kit, FLEXHA 5000, XT Accessory, includes (1) Bank Expansion Base Right, (1) Bank Expansion Base Left, (2) Power Cables, (2) Comm Cables, (1) SA Power Filler, (1) Gnd Lug.
5015-BIMXT	Backplane Interface Module, FLEXHA 5000, XT Accessory, Status LEDs, Diagnostic Module, Fault Tolerant Capable.
5015-BPGNDXT	Back Plate GND Lug, FLEXHA 5000, XT Accessory.
5015-ECRXT	End Cap, Terminator, FLEXHA 5000, XT Accessory.
5015-MLTRXT	Media Landing Card, FLEXHA 5000, Redundant (2) RJ-45, Communication Status LEDs, Diagnostic Module and XT
5015-MP1250XT	Mounting Plate, FLEXHA 5000, XT Accessory, 1250 mm.
5015-MP300XT	Mounting Plate, FLEXHA 5000, XT Accessory, 300 mm.
5015-MP700XT	Mounting Plate, FLEXHA 5000, XT Accessory, 700 mm.
5015-MP900XT	Mounting Plate, FLEXHA 5000, XT Accessory, 900 mm.
5015-N2IOXT	I/O Slot Filler, FLEXHA 5000, XT Accessory.
5015-N2RTBXT	Removable Terminal Block, FLEXHA 5000, XT Accessory, Slot Filler.
5015-N2SAXT	Removable Terminal Block, FLEXHA 5000, XT Accessory, Sensor Actuator Power Filler/Filler.
5015-PB100FTXT	Power Conditioner, FLEXHA 5000, 24VDC,100W, Status LEDs, Diagnostic Module, Fault Tolerant Capable and XT.
5015-RTBPWPXT	Removable Terminal Block, FLEXHA 5000, XT Accessory, Power Conditioner/Sensor Actuator Power, Push-in.
5015-RTBPXT	Removable Terminal Block, FLEXHA 5000, XT Accessory, Push-in, Simplex.
5015-RTBRPXT	Removable Terminal Block, FLEXHA 5000, XT Accessory, Push-in, Duplex.
5015-RTBSAJXT	Removable Terminal Block, FLEXHA 5000, XT Accessory, Jumper for Sensor Actuator Power.
5015-STBPXT	Removable Terminal Block, FLEXHA 5000, XT Accessory, Shield RTB, Push-In.
5015-U8IHFTXT	Universal Input Output Module, FLEXHA 5000, Isolated Input or Output, 8 Channel, 24-volt DC Digital In Out, 4-20mA Analog In Out, Hart, Current Sinking, IO and Comm Status LEDs, Diagnostic Module, Fault Tolerant Capable and XT.
