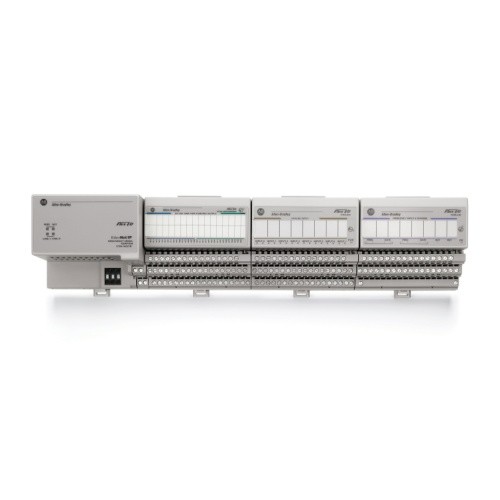

Our 1794 FLEX I/O modules offer flexibility for your application with digital, analog, HART analog, and specialty I/O, with 4…32 points per module. You can mix and match digital and analog I/O with mounting and wiring options.
Overview
Modular design provides the flexibility to select the I/O, termination style and network interface independently
Supports a wide variety of applications with digital, analog and specialty modules
Allows users to replace modules and make cable connections while the system is in operation with easy snap-on installation via Removal and Insertion Under Power (RIUP)
FLEX I/O-XT extreme environment modules are rated for -20...+70 °C (-4...+158 °F) and are compatible with the ControlLogix-XT extreme environment system
Conformal coated modules are available
Each I/O module requires a terminal base for connection points for I/O wiring
1794 FLEX I/O Digital Modules
Cover a wide electrical range
Densities range from 8...32 points
Isolated inputs or outputs, protected outputs, electronic fusing, or diagnostics available on some modules
1794 FLEX I/O Analog Modules
Individually configurable channels
Selectable input filters on many modules
Single-ended or differential inputs
On-board scaling
Internal calibration
Thermocouple, RTD, and HART (Highway Addressable Remote Transmitter) modules available
1794 FLEX I/O Specialty Modules
Frequency modules
Very high speed counter modules
Pulse counter modules
Product Selection
Catalog Number | Description |
1794-IA16 | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, 120VAC, 16 Inputs |
1794-IA8 | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, 120VAC, 8 Inputs |
1794-IA8I | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, 120VAC, 8 Isolated Inputs |
1794-IB10XOB6 | 1794 Flex, Flex Ex, Flex XT I/O System, Combination Module, 24VDC, 10 In Sink/6 Out Source |
1794-IB10XOB6XT | 1794 Flex, Flex Ex, Flex XT I/O System, Combination Module, FLEX I/O-XT, 24VDC, 10 In Sink/6 Out Source |
1794-IB16 | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, 24VDC, 16 Sink Inputs |
1794-IB16D | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, 24VDC, 16 Sink Inputs, Diagnostic |
1794-IB16XOB16P | 1794 Flex, Flex Ex, Flex XT I/O System, Combination Module, 24VDC, 16 In Sink/16 Out Source |
1794-IB16XT | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, FLEX I/O-XT, 24VDC, 16 Sink Inputs |
1794-IB32 | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, 24VDC, 32 Sink Inputs |
1794-IB8 | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, 24VDC, 8 Sink Inputs |
1794-IC16 | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, 48VDC, 16 Sink Inputs |
1794-ID2 | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, 2-Channel Incremental Encoder |
1794-IE12 | 1794 Flex, Flex Ex, Flex XT I/O System, Analog Input Modules, 12 Single-Ended Inputs |
1794-IE4XOE2 | 1794 Flex, Flex Ex, Flex XT I/O System, Analog Combination Module, 4 Inputs / 2 Single-Ended Outputs |
1794-IE4XOE2XT | 1794 Flex, Flex Ex, Flex XT I/O System, Analog Combination Module, FLEX I/O-XT, 4 Inputs / 2 Single-Ended Outputs |
1794-IE8 | 1794 Flex, Flex Ex, Flex XT I/O System, Analog Input Modules, 8 Single-Ended Inputs |
1794-IE8H | 1794 Flex, Flex Ex, Flex XT I/O System, HART Analog Input Modules, 8 Single-Ended Inputs |
1794-IE8XOE4 | 1794 Flex, Flex Ex, Flex XT I/O System, Analog Combination Module, 8 Inputs / 4 Single-Ended Outputs |
1794-IE8XT | 1794 Flex, Flex Ex, Flex XT I/O System, Analog Input Modules, FLEX I/O-XT, 8 Single-Ended Inputs |
1794-IF2XOF2I | 1794 Flex, Flex Ex, Flex XT I/O System, Analog Combination Module, 2 Inputs / 2 Isolated |
1794-IF2XOF2IXT | 1794 Flex, Flex Ex, Flex XT I/O System, Analog Combination Module, FLEX I/O-XT, 2 Inputs / 2 Isolated |
1794-IF4I | 1794 Flex, Flex Ex, Flex XT I/O System, Analog Input Module, 16 Bit, 4 Point Isolated |
1794-IF4IXT | 1794 Flex, Flex Ex, Flex XT I/O System, Analog Input Module, FLEX I/O-XT, 16 Bit, 4 Point Isolated |
1794-IF8IH | 1794 Flex, Flex Ex, Flex XT I/O System, HART Analog Input Modules, 8 Single-Ended Inputs |

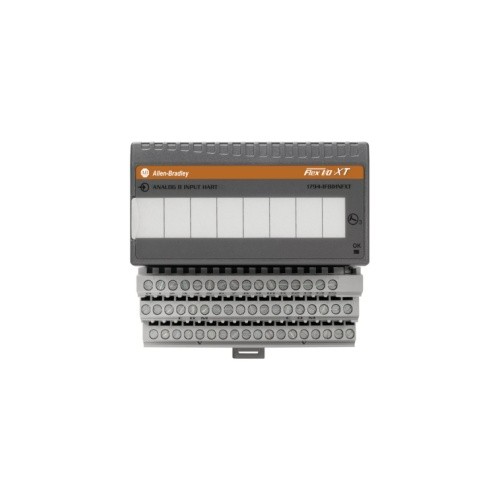

1794-IF8IHNFXT | 1794 Flex, Flex Ex, Flex XT I/O System, HART Analog Input Modules, FLEX I/O-XT, 8 Single-Ended Inputs |
1794-IG16 | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, 5VDC, 16 Sink Inputs |
1794-IH16 | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, 125VDC, 16 Sink Inputs |
1794-IJ2 | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, 2-Channel High Resolution Frequency |
1794-IJ2XT | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, FLEX I/O-XT, 2-Channel High Resolution Frequency |
1794-IM16 | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, 220VAC, 16 Inputs |
1794-IM8 | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, 220VAC, 8 Inputs |
1794-IP4 | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, 4-Channel 12/24VDC Pulse Counter |
1794-IR8 | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, 8 Point RTD |
1794-IRT8 | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, Non-Isolated, Thermocouple / RTD / Mv |

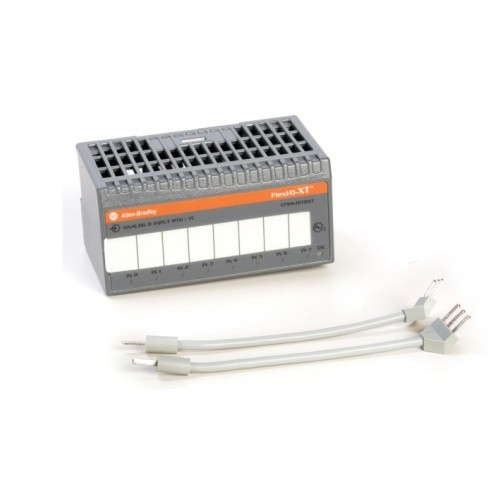

1794-IRT8XT | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, FLEX I/O-XT, Non-Isolated, Thermocouple / RTD / Mv |
1794-IT8 | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, Thermocouple, 8 Point |
1794-IV16 | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, 24VDC, 16 Source Inputs |
1794-IV32 | 1794 Flex, Flex Ex, Flex XT I/O System, Input Module, 24VDC, 32 Source Inputs |
1794-OA16 | 1794 Flex, Flex Ex, Flex XT I/O System, Output Module, 85-132 VAC, 16 Outputs |
1794-OA8 | 1794 Flex, Flex Ex, Flex XT I/O System, Output Module, 85-132 VAC, 8 Outputs |
1794-OA8I | 1794 Flex, Flex Ex, Flex XT I/O System, Output Module, 85-132 VAC, 8 Isolated Outputs |
1794-OB16 | 1794 Flex, Flex Ex, Flex XT I/O System, Output Module, 24V DC, 16 Source Outputs |
1794-OB16D | 1794 Flex, Flex Ex, Flex XT I/O System, Output Module, 24V DC, 16 Source Outputs, Diagnostic |
1794-OB16P | 1794 Flex, Flex Ex, Flex XT I/O System, Output Module, 24V DC, 16 Source Outputs, Protected |
1794-OB16PXT | 1794 Flex, Flex Ex, Flex XT I/O System, Output Module, FLEX I/O-XT, 24V DC, 16 Source Outputs, Protected |
1794-OB32P | 1794 Flex, Flex Ex, Flex XT I/O System, Output Module, 24V DC, 32 Source (2 groups of 16 ) Outputs, Protected |
1794-OB8 | 1794 Flex, Flex Ex, Flex XT I/O System, Output Module, 24V DC, 8 Source Outputs |
1794-OB8EP | 1794 Flex, Flex Ex, Flex XT I/O System, Output Module, 24V DC, 8 Outputs, Electronically Protected |
1794-OB8EPXT | 1794 Flex, Flex Ex, Flex XT I/O System, Output Module, FLEX I/O-XT, 24V DC, 8 Outputs, Electronically Protected |
1794-OC16 | 1794 Flex, Flex Ex, Flex XT I/O System, Output Module, 48V DC, 16 Source Outputs |
1794-OE12 | 1794 Flex, Flex Ex, Flex XT I/O System, Analog Output Modules, 12 Single-Ended Outputs |
1794-OE4 | 1794 Flex, Flex Ex, Flex XT I/O System, Analog Output Modules, 4 Single-Ended Outputs |
1794-OE4XT | 1794 Flex, Flex Ex, Flex XT I/O System, Analog Output Module, 4 Point, Flex XT |
1794-OE8H | 1794 Flex, Flex Ex, Flex XT I/O System, HART Analog Output Modules, 8 Single-Ended Outputs |
1794-OF4I | 1794 Flex, Flex Ex, Flex XT I/O System, Analog Output Module, 16 Bit, 4 Point Isolated |
1794-OF4IXT | 1794 Flex, Flex Ex, Flex XT I/O System, Analog Output Module, FLEX I/O-XT, 16 Bit, 4 Point Isolated |
1794-OF8IH | 1794 Flex, Flex Ex, Flex XT I/O System, HART Analog Output Modules, 8 Single-Ended Outputs |
1794-OG16 | 1794 Flex, Flex Ex, Flex XT I/O System, Output Module, 5V DC, 16 Source Outputs |
1794-OM16 | 1794 Flex, Flex Ex, Flex XT I/O System, Output Module, 220VAC, 16 Inputs |
1794-OM8 | 1794 Flex, Flex Ex, Flex XT I/O System, Output Module, 220V ac, 8 Outputs |
1794-OV16 | 1794 Flex, Flex Ex, Flex XT I/O System, Output Module, 24V DC, 16 Sink Outputs |
1794-OV16P | 1794 Flex, Flex Ex, Flex XT I/O System, Output Module, 24V DC, 16 Sink Outputs, Protected |
1794-OV32 | 1794 Flex, Flex Ex, Flex XT I/O System, Output Module, 24V DC, 32 Sink Outputs |
1794-OW8 | 1794 Flex, Flex Ex, Flex XT I/O System, Relay Contact Output Module, 8 Point Isolated |
1794-OW8XT | 1794 Flex, Flex Ex, Flex XT I/O System, Relay Contact Output Module, 8 Point Isolated, Flex XT - Conformally Coated |
1794-VHSC | 1794 Flex, Flex Ex, Flex XT I/O System, 2-Channel 1 Mhz Very High Speed Counter |
