POINT and POINT Guard I/O Modules In-cabinet Distributed I/O

Overview

Modular design lets you independently select the I/O, termination style, and network interface

Modules slide together for easy install and uninstall for easier maintenance

Removable wiring system saves time and money during installation and troubleshooting

Comprehensive diagnostics and configurable features makes POINT I/O  easy to apply

Removal and Insertion Under Power (RIUP) lets you replace modules while the system is in operation

Mount horizontally or vertically, with no de-rating required

Auto Device Replacement (ADR) reduces downtime

Add-on-Profiles in the Studio 5000 Logix Designer  application provide smooth integration into Integrated Architecture systems

Available with conformal coating

1734 POINT I/O Digital Modules

Input, output, and relay output modules

Wide variety of voltages

Point-level output fault states for short-circuit and wire-off diagnostics

Field-side diagnostics on select modules

Choice of direct-connect or rack-optimized communications

POINT Guard I/O  modules for safety applications

Configurable modules

Each point can be configured as a DC input or output

Available with DeviceLogix technology

1734 POINT I/O Analog Modules

Up to eight single-ended inputs or outputs per module

Thermocouple and RTD modules available

Individually configurable channels

On-board scaling

Selectable input filters

Over- and under-range detection

1734 POINT I/O Specialty Modules

Counter and encoder modules

Synchronous Serial Interface Absolute Encoder module

Serial interface modules (RS-232, RS-485/RS-422)

Address Reserve (ARM) module

Supports connection to IO-Link enabled devices with the IO-Link master module

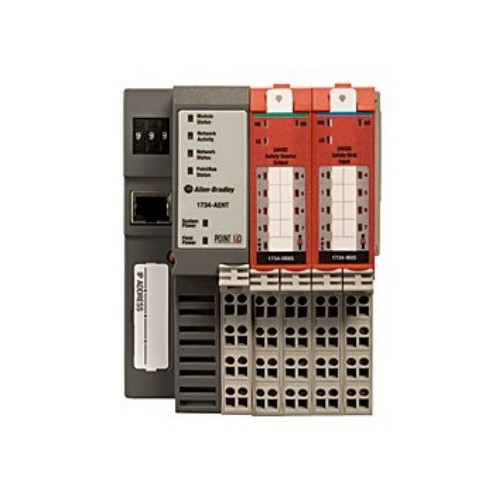

POINT Guard I/O Modules

Fits into the standard POINT I/O system

Communicates by using the CIP Safety protocol over EtherNet/IP for GuardLogix controllers

For EtherNet/IP connectivity, use a POINT I/O EtherNet/IP adapter (1734-AENT, 1734-AENTR)

1734 POINT Guard I/O System

Supports 24V DC I/O circuits

Includes analog input circuits

Product Selection
