ASEM 6300M Industrial Monitors

Our Allen‑Bradley ASEM 6300 is a complete portfolio of open architecture industrial PCs, thin clients and monitors. This broad and adaptable line offers the flexibility you need to meet your specific performance requirements. This product family is a solid match for customers that need a high-performance Human Machine Interface (HMI) solution for industrial environments. By integrating completely with our FactoryTalk View SE and FactoryTalk View ME software, it allows for seamless assimilation within your facility.

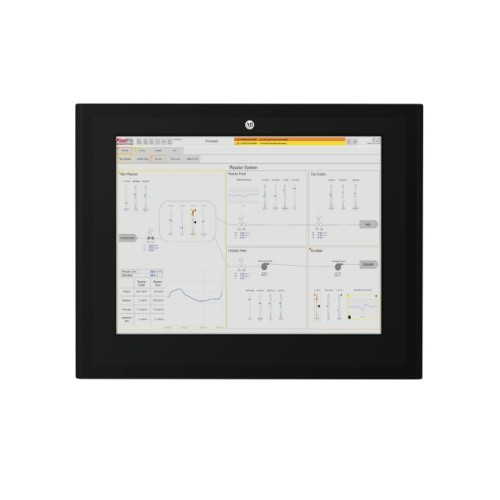

The ASEM 6300M industrial monitor includes a ten-point multitouch screen that can also be operated with gloves. The touch screens are pre-calibrated so that recalibration is not necessary. These monitors are optimized to work with the ASEM 6300 computer and thin client portfolio to create a visualization, maintenance, control or information computing solution.

Design considerations are becoming more important in the machine-builder world. Low Profile bezels on wide screen displays and monitors provide that ultra-modern look to visually set this equipment apart from the crowd. Additionally, ASEM 6300M has various design options available making this robust product family a great choice for plant floor environments.

Overview

Provides up to full high definition (FHD) resolution with a 16 million color LED backlight display in different sizes and aspect ratios from 10.1 in. to 24 in.
DVI and DisplayPort inputs are available on all monitors
Panel mount variations in standard and wide screen formats
Resolutions include FHD / SXGA / XGA / WXGA
Analog resistive or projected capacitive display (for multi-touch operation)
Available with Standard and Low Profile bezels

	Standard Aluminum Bezel	Standard Stainless Steel True Flat Bezel	Low Profile Aluminum Bezel	Low Profile Aluminum and Glass Bezel	Aluminum True Flat Bezel	Stainless Steel Widescreen Bezel
LCD backlight TFT LCD	8.4” ‑ 800x600 10.4” ‑ 800x600 12.1” ‑ 1024x768 15” ‑ 1024x768 17” ‑ 1280x1024 19” ‑ 1280x1024	12.1” ‑ 1024x768 15” ‑ 1024x768 17” ‑ 1280x1024 19” ‑ 1280x1024	10.1” W ‑ 1280x800 12.1” W ‑ 1280x800 15.6” W ‑ 1920x1080 18.5” W ‑ 1920x1080 21.5” W ‑ 1920x1080 24” W ‑ 1920x1080	10.1” W ‑ 1280x800 12.1” W ‑ 1280x800 15.6” W ‑ 1920x1080 18.5” W ‑ 1920x1080 21.5” W ‑ 1920x1080 24” W ‑ 1920x1080	8.4” ‑ 800x600 10.4” ‑ 800x600 12.1” ‑ 1024x768 15” ‑ 1024x768 17” ‑ 1280x1040 19” ‑ 1280x1040	12.1” W ‑ 1280x800 15.5” W ‑ 1920x1080 18.5” W ‑ 1920x1080 21.5” W ‑ 1930x1080 24” W ‑ 1920x1080
Touch screen	Resistive 5 wires			P-CAP Multitouch, (ten-point)	Resistive 5 wires
T/S controller	USB
Front panel	Aluminum	Stainless Steel True Flat	Aluminum	Aluminum Glass True Flat	Aluminum	Stainless Steel
Protection grade	IP65	IP66K	IP65			IP69K
Video input	DVI / DisplayPort
USB	3 x USB 2.0 1 x USB 2.0 (Type-A, front)	3 x USB 2.0	3 x USB 2.0, rear		3 x USB 2.0 1 x USB 2.0 (Type-A, front)	3 x USB 2.0, rear
Power	24V DC Isolated 100V / 230V AC
Operating temperature	0…50 °C (32…122 °F)
Approvals	UL Type 12 certification				UL Type 12 certification
Approvals	CE (EN 61326-1, EN 61010-1, EN 61010-2-201), cULus LISTED (UL61010), RCM For DC powered models only: UL Class 1 Div 2 Hazardous Location Certification Morocco, KC (Korea), EAC (Euroasian Russian)

Enable your Connected Enterprise Production System with ASEM 6300 Industrial PCs and Monitors

Enable your Connected Enterprise Production System with ASEM 6300 Industrial PCs and Monitors

ASEM 6300 industrial PCs, monitors and thin clients offer a unique value proposition based on its modular construction, available options and remote management functionality, helping enable your Connected Enterprise production system.

Product Selection

Catalog Number	Description	Accessories
6300M-101AAPSWAN1S	6300M Monitor, 10.1 in., Aluminum Bezel, Panel Mount, Standard Single touch, 16:10 1280x800, 110/230V AC, Standard Warranty, Standard Branding
6300M-101ACPMWAN1S	6300M Monitor, 10.1 in., Aluminum and Glass TrueFlat Bezel, Panel Mount, Multi-touch, 16:10 1280x800, 110/230V AC, Standard Warranty, Standard Branding
6300M-121AAPSWAN1S	6300M Monitor, 12.1 in., Aluminum Bezel, Panel Mount, Standard Single touch, 16:10 1280x800, 110/230V AC, Standard Warranty, Standard Branding
6300M-121ACPMWAN1S	6300M Monitor, 12.1 in., Aluminum and Glass TrueFlat Bezel, Panel Mount, Multi-touch, 16:10 1280x800, 110/230V AC, Standard Warranty, Standard Branding
6300M-121BAPSXAN1S	6300M Monitor, 12.1 in., Aluminum Bezel, Panel Mount, Standard Single touch, 4:3 1024x768, 110/230V AC, Standard Warranty, Standard Branding
6300M-121BSPSXAN1S	6300M Monitor, 12.1 in., Stainless Steel IP66K, Panel Mount, Standard Single touch, 4:3 1024x768, 110/230V AC, Standard Warranty, Standard Branding
6300M-150BAPSXAN1S	6300M Monitor, 15 in., Aluminum Bezel, Panel Mount, Standard Single touch, 4:3 1024x768, 110/230V AC, Standard Warranty, Standard Branding
6300M-150BSPSXAN1S	6300M Monitor, 15 in., Stainless Steel IP66K, Panel Mount, Standard Single touch, 4:3 1024x768, 110/230V AC, Standard Warranty, Standard Branding
6300M-156AAPSFAN1S	6300M Monitor, 15.6 in., Aluminum Bezel, Panel Mount, Standard Single touch, 16:9 1920x1080, 110/230V AC, Standard Warranty, Standard Branding
6300M-156ACPMFAN1S	6300M Monitor, 15.6 in., Aluminum and Glass TrueFlat Bezel, Panel Mount, Multi-touch, 16:9 1920x1080, 110/230V AC, Standard Warranty, Standard Branding
6300M-170BAPSTAN1S	6300M Monitor, 17 in., Aluminum Bezel, Panel Mount, Standard Single touch, 5:4 1280x1024, 110/230V AC, Standard Warranty, Standard Branding
6300M-170BSPSTAN1S	6300M Monitor, 17 in., Stainless Steel IP66K, Panel Mount, Standard Single touch, 5:4 1280x1024, 110/230V AC, Standard Warranty, Standard Branding
6300M-185AAPSFAN1S	6300M Monitor, 18.5 in., Aluminum Bezel, Panel Mount, Standard Single touch, 16:9 1920x1080, 110/230V AC, Standard Warranty, Standard Branding
6300M-185ACPMFAN1S	6300M Monitor, 18.5 in., Aluminum and Glass TrueFlat Bezel, Panel Mount, Multi-touch, 16:9 1920x1080, 110/230V AC, Standard Warranty, Standard Branding
6300M-190BAPSTAN1S	6300M Monitor, 19 in., Aluminum Bezel, Panel Mount, Standard Single touch, 5:4 1280x1024, 110/230V AC, Standard Warranty, Standard Branding
6300M-190BAPSTDN1S	6300M Monitor, 19 in., Aluminum Bezel, Panel Mount, Standard Single touch, 5:4 1280x1024, 24V DC Isolated, Standard Warranty, Standard Branding
6300M-190BSPSTAN1S	6300M Monitor, 19 in., Stainless Steel IP66K, Panel Mount, Standard Single touch, 5:4 1280x1024, 110/230V AC, Standard Warranty, Standard Branding
6300M-215AAPSFAN1S	6300M Monitor, 21.5 in., Aluminum Bezel, Panel Mount, Standard Single touch, 16:9 1920x1080, 110/230V AC, Standard Warranty, Standard Branding
6300M-215ACPMFAN1S	6300M Monitor, 21.5 in., Aluminum and Glass TrueFlat Bezel, Panel Mount, Multi-touch, 16:9 1920x1080, 110/230V AC, Standard Warranty, Standard Branding
6300M-240AAPSFAN1S	6300M Monitor, 24 in., Aluminum Bezel, Panel Mount, Standard Single touch, 16:9 1920x1080, 110/230V AC, Standard Warranty, Standard Branding
6300M-240ACPMFAN1S	6300M Monitor, 24 in., Aluminum and Glass TrueFlat Bezel, Panel Mount, Multi-touch, 16:9 1920x1080, 110/230V AC, Standard Warranty, Standard Branding
