ASEM 6300MA On-Machine Industrial Monitors

Our ASEM 6300MA On-Machine industrial monitors are designed to make operations more flexible and reliable. These industrial monitors offer adaptable mounting options, allowing machine designers to place the monitor in the ideal location. These monitors can be further customized with optional accessories, including handles, keyboard trays and pilot devices. Additionally, ASEM 6300 monitors incorporate a fanless design and a wide range of temperature specs, creating an overall more dependable industrial system.

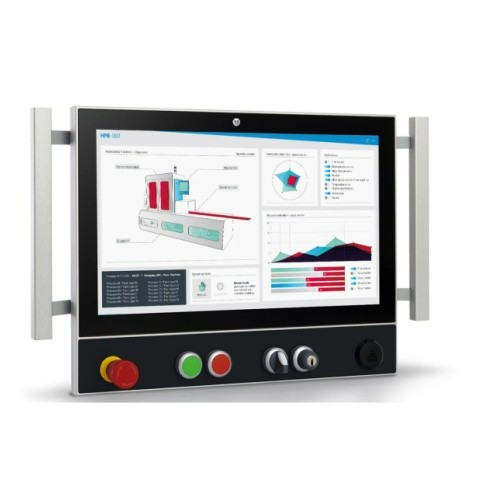

Our ASEM 6300MA On-Machine industrial monitors offer over 60 factory-configured combinations, including an optional button area with hard-wired 22 mm pilot devices that have wiring brought to two terminal blocks. These monitors also contain a USB port on the back of the unit, which is sealed with a threaded cap. The threaded cap makes it easy to connect peripherals temporarily, adding the ability to replace the cap later to preserve the IP65 rating.

Overview

Available in landscape and portrait versions:

Landscape with 15.6”, 18.5”, 21.5” and 24” TFT LCDs in wide aspect ratio
Portrait with 21.5” and 24” TFT LCDs in wide aspect ratio

Features Full HD resolution
Offers various exterior features:

VESA 75/100 or top/bottom arm mounting
Powder coated die-cast aluminum chassis with anti-scratch treatment
Full IP65 protection grade

Available bezel options include:

Aluminum frame with single-touch resistive touch screen (landscape version only)
Aluminum and glass True Flat frame with multitouch projected capacitive touch screen

Features optional factory-configured button area with 22 mm pilot devices

Product Selection

<td role="gridcell" style="padding: 6px; border-top-width: 0px; border-right-width: 0px; border-bottom-width: 0px; border-color: rgb(219, 219, 222); box-sizing: content-box; background-clip: border-box; overflow: hidden; lin

Catalog Number	Description
6300MA-156ACVMFDN-N1SNSN	6300 On Machine Monitor , 15.6", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), No Button Area Terminal Blocks
6300MA-156CCVMFDN-L1SNSN	6300 On Machine Monitor , 15.6", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), No Button Area Terminal Blocks
6300MA-185ACVMFDN-N1SNSN	6300 On Machine Monitor , 18.5", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), No Button Area Terminal Blocks
6300MA-185CCVMFDN-L1SNSN	6300 On Machine Monitor , 18.5", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), No Button Area Terminal Blocks
6300MA-215ACVMFDN-N1SNSN	6300 On Machine Monitor , 21.5", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), No Button Area Terminal Blocks
6300MA-215CCVMFDN-L1SNSN	6300 On Machine Monitor , 21.5", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), No Button Area Terminal Blocks
6300MA-240ACVMFDN-N1SNSN	6300 On Machine Monitor , 24.0", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), No Button Area Terminal Blocks
6300MA-240CCVMFDN-L1SNSN	6300 On Machine Monitor , 24.0", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), No Button Area Terminal Blocks
6300MA-156BCVMFDN-N1SNSC-PUPCPCNNESNNPCPCPC	6300 On Machine Monitor , 15.6", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-156BCVMFDN-N1SNSC-PUNNPCPCPCPCPCNNES	6300 On Machine Monitor , 15.6", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-156BCVMFDN-N1SNSC-PGPRPBNNPCPCPUNNES	6300 On Machine Monitor , 15.6", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-156BCVMFDN-N1SNSC-S3PGPRPCPCPUNNPEES	6300 On Machine Monitor , 15.6", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-185BCVMFDN-N1SNSC-PUPCPCNNNNESNNNNPCPCPC	6300 On Machine Monitor , 18.5", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-185BCVMFDN-N1SNSC-PUNNNNPCPCPCPCPCNNNNES	6300 On Machine Monitor , 18.5", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-185BCVMFDN-N1SNSC-PGPRPBNNNNPCPCPUNNNNES	6300 On Machine Monitor , 18.5", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-185BCVMFDN-N1SNSC-S3PGPRNNPCPCPUNNNNPEES	6300 On Machine Monitor , 18.5", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-215BCVMFDN-N1SNSC-PUPCPCNNNNNNESNNNNNNPCPCPC	6300 On Machine Monitor , 21.5", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-215BCVMFDN-N1SNSC-PUNNNNNNPCPCPCPCPCNNNNNNES	6300 On Machine Monitor , 21.5", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-215BCVMFDN-N1SNSC-PGPRPBNNNNNNPCPCPUNNNNNNES	6300 On Machine Monitor , 21.5", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-215BCVMFDN-N1SNSC-S3PGPRNNNNPCPCPUNNNNNNPEES	6300 On Machine Monitor , 21.5", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-240BCVMFDN-N1SNSC-PUPCPCNNNNNNESNNNNNNPCPCPC	6300 On Machine Monitor , 24.0", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-240BCVMFDN-N1SNSC-PUNNNNNNPCPCPCPCPCNNNNNNES	6300 On Machine Monitor , 24.0", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-240BCVMFDN-N1SNSC-PGPRPBNNNNNNPCPCPUNNNNNNES	6300 On Machine Monitor , 24.0", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-240BCVMFDN-N1SNSC-S3PGPRNNNNPCPCPUNNNNNNPEES	6300 On Machine Monitor , 24.0", 16:9 1920x1080, Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-215BCVMPDN-N1SNSC-PUPCPCPUPCPCPC	6300 On Machine Monitor , 21.5", 9:16 1080x1920 (portrait), Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-215DCVMPDN-L1SNSC-PUPCPCPCPCPCES	6300 On Machine Monitor , 21.5", 9:16 1080x1920 (portrait), Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-215BCVMPDN-N1SNSC-PUPCPCPCPCPCES	6300 On Machine Monitor , 21.5", 9:16 1080x1920 (portrait), Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-215BCVMPDN-N1SNSC-PGPRPBPCPUPCES	6300 On Machine Monitor , 21.5", 9:16 1080x1920 (portrait), Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-215BCVMPDN-N1SNSC-S3PGPRPUPCPEES	6300 On Machine Monitor , 21.5", 9:16 1080x1920 (portrait), Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-240BCVMPDN-N1SNSC-PUNNPCPCNNPCPCPC	6300 On Machine Monitor , 24.0", 9:16 1080x1920 (portrait), Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-240DCVMPDN-L1SNSC-PUNNPCPCNNPCPCPC	6300 On Machine Monitor , 24.0", 9:16 1080x1920 (portrait), Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-240DCVMPDN-L1SNSC-PUNNPCPCPCPCPCES	6300 On Machine Monitor , 24.0", 9:16 1080x1920 (portrait), Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-240BCVMPDN-N1SNSC-PUNNPCPCPCPCPCES	6300 On Machine Monitor , 24.0", 9:16 1080x1920 (portrait), Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-240BCVMPDN-N1SNSC-PGPRPBPUNNPCPCES	6300 On Machine Monitor , 24.0", 9:16 1080x1920 (portrait), Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-240BCVMPDN-N1SNSC-S3PGPRPUPCPCPEES	6300 On Machine Monitor , 24.0", 9:16 1080x1920 (portrait), Aluminum and Glass TrueFlat, VESA, Multi-Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), Button Area - 2 Terminal Blocks
6300MA-156AAVSFDN-N1SNSN	6300 On Machine Monitor , 15.6", 16:9 1920x1080, Aluminium, VESA, Analog Resitive Touch,24 VDC isolated, no UPS, Standard, Standard AB Branding, No Conformal Coat, Side Handles Vertical (left & Right), No Button Area Terminal Blocks
