ControlLogix Modules Chassis-based I/O

Overview

• Overview

• Mounts in a ControlLogix chassis

• Requires either a removable terminal block  or 1492 wiring interface module (IFM) to connect all field-side wiring

• Includes inherent time-stamping capabilities for sequence of events (SOE) applications

• Offers EtherNet/IP communication, including CIP Security and redundancy capability

• Offers comprehensive I/O diagnostics for detection of both system and field-side failures

• Provides removal and insertion under power (RIUP) for ease of maintenance

• Offers electronic keying to help prevent replacement errors

• Includes I/O wizards in the Studio 5000 Logix Designer application to enable quick and easy module configuration

•

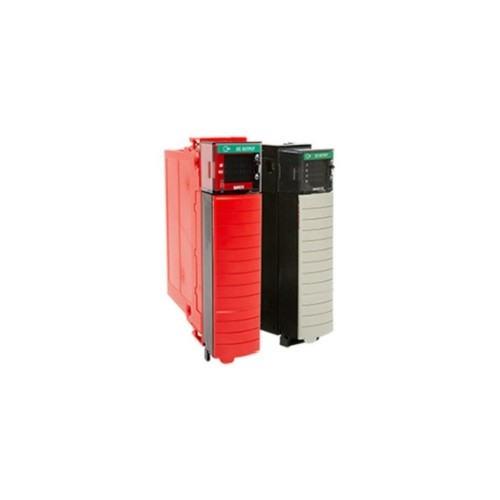

• 1756 ControlLogix CIP Safety I/0 Modules

• Supports Compact GuardLogix 5380 or GuardLogix 5580 controllers

• Offers functional safety rated up to and including SIL3 and PLe

• Supports CIP safety bridging and routing functionality

• Use as local I/O or distributed I/O with 5580 GuardLogix controller

• Provides enhanced reaction time

• Uses the Logix Designer application version 32

• Offers digital input modules: IB16S – 16 channels (each SIL 3 rated)

• Offers digital output modules: OBV8S – 8 channels (each SIL 3 rated)

• Includes compliance markings: TÜV, UL, IECEx, ATEX, CE, Marine, FM

•


• ControlLogix Digital I/O Modules

• Offers a variety of voltages

• Provides 8 to 32 points per module

• Offers isolated and non-isolated module types

• Includes point-level output fault states

• Offers direct-connect or rack-optimized communication

• Offers field-side diagnostics on select modules

•


• 1756 ControlLogix Analog I/O Modules

• Includes input, output, and combination modules

• Provides thermocouple and RTD modules

• Includes on-board data alarming

• Offers scaling to engineering units

• Provides real-time channel sampling

• Offers electronic module keying, and is software configurable

• Includes mechanical RTB keying, user-defined

• Offers per channel configuration for voltage, current or 2-wire transmitter current sourcing

• Offers Per channel configuration for either RTD or Thermocouple

• As of March 31, 2017, the ControlLogix 1756 Isolated Analog I/O 6-channel modules will be discontinued and no longer available for sale. Customers are encouraged to migrate to the 1756 Isolated Analog I/O 8-channel modules using the Migrating 6-channel to 8-channel 1756 Analog Modules Migration Guide

•


• 1756 ControlLogix Specialty I/O Modules

• Includes configurable flow meter modules

• Provides high-speed counter modules

• Offers programmable limit switch modules

• 1756 ControlLogix Removable Terminal Blocks (RTBs)

• Provides a flexible interconnection between plant wiring and I/O modules

• Includes screw-clamp or spring-clamp terminations

• Not shipped with I/O modules; you must order separately

•


• 1756 HART Analog Isolated I/O Modules

• Includes channel-to-channel isolation

• Offers HART modem per channel for faster HART data update

• Offers basic field device configuration via the Add-on Profile

• Helps eliminate the need for field isolating barriers when using isolated modules

• Offers 8- or 16-channel density modules

•


• 1756 Enhanced Analog I/O Modules

• Offers increased accuracy, repeatability, stability, and precision

• Includes isolated 8-channel and non-isolated 12- and 16-channel modules with stability over the entire temperature operating range

• Does not require field calibration

• Offers advanced precision using 24-bit design

• Includes per channel status and fault LED annunciation

• Offers SIL 1, systematic capability 2, type certified for use in a ControlLogix SIL 2 architecture

• Offers an emulation mode that helps enable customers to migrate from 6-channel applications

•


• 1756 Communications Modules

• Implements network-based access control for users, devices, and networks in the 1756 chassis

• Offers redundancy capabilities

• Offers security modules to encrypt important information shared between controllers and servers to prevent tampering

•


• 1756 Compute Module

• Provides high-speed access to the ControlLogix controller over the backplane

• Integrated DisplayPort for direct connection to a high-definition 5100 industrial monitor

• Provides computing capability in a ControlLogix chassis
