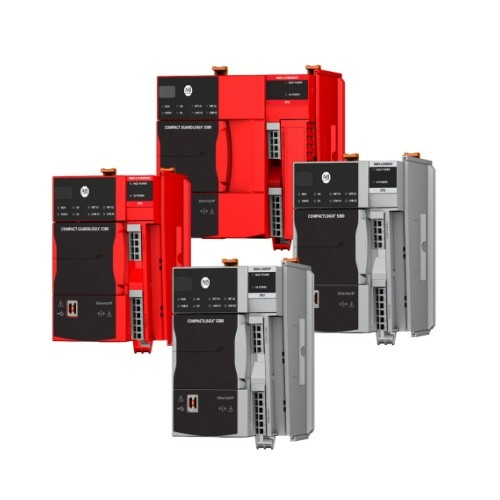

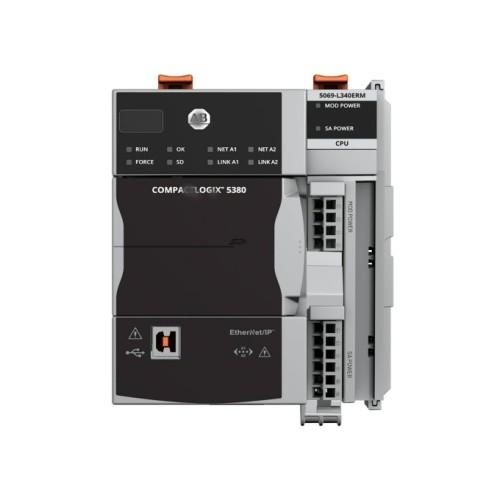

Our 5380 controllers provide higher performance, increased capacity, improved productivity and enhanced security to help meet the growing demands of smart machines and equipment for manufacturing. All standard and safety controllers use a modern programming environment, Studio 5000 Logix Designer application, to allow users to work collaboratively to design and maintain their systems. This common environment optimizes efficiency, reduces time to commission and manages integrated motion over EtherNet/IP™ for high-speed motion applications and up to SIL 3/PLe safety solutions. These controllers are ideal for applications requiring high-performance communications, I/O and motion control for up to 32 axes.
Overview
Ideal for small to large applications that require low axis motion and I/O point counts
Enable high-speed I/O, motion control, Device Level Ring and Linear topologies
Offer a 1 gigabit (Gb) embedded EtherNet/IP port that enables CIP safety connections, I/O and safety devices
Include dual configurable ports that support Dual-IP address
Provide enhanced diagnostics and troubleshooting with controller status and fault display
Offer controller functions optimized for maximum system performance
Offer enhanced security features that include controller-based change detection, logging, encrypted firmware and role-based access control to routines and Add-On Instructions
Support up to 31 local 5000 I/O modules
Offer integrated motion on EtherNet/IP up to 32 axes
Offer a wide range of memory options from 0.6...10 MB

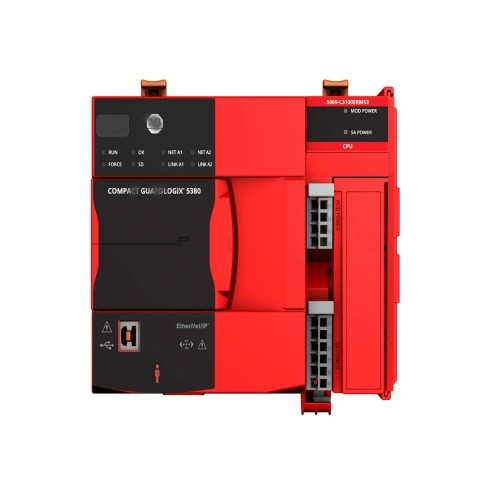

Compact GuardLogix 5380 safety controllers
Achieve up to SIL 2/PLd with 1oo1 architecture or up to SIL 3/PLe with 1oo2 architecture
Offer standard memory options from 0.6…10 MB
Offer safety memory options from 0.3…5 MB
Offer 1 gigabit (Gb) embedded Ethernet port
Support communication options for up to 180 EtherNet/IP nodes
Offer conformal coated options for harsh environments
Provide single controller/software/network for standard and safety control
Ability to mix and match safety and standard I/O
Provide integrated safety functions with drives and motion
Ability to connect with scaled HMI options from PanelView 800 graphic terminals
5380 Process controllers
Ideal for industries such as Food & Beverage, Oil & Gas, Chemical, Plastics, Life Sciences, Metals & Mining
Incorporates standard controller functionality with motion capability and conformal coating option
Provides tight integration with PlantPAx 5.0 system, which reduces the need to import Add-On InstructionEnables user to subscribe and receive diagnostic information through FactoryTalk View Site Edition without additional programming.
| Catalog Number | Description |
5069-AENTR | 5069 I/O Slim EtherNet/IP Adapter |
| 5069-AENTRK | 5069 I/O Slim EtherNet/IP Adapter,Conformal Coated |
| 5069-AEN2TR | 5069 I/O EtherNet/IP Adapter |
| 5069-IY4 | 5069 I/O 4 Channel Universal Voltage/Current/RTD/TC Analog Input Module |
| 5069-IF8 | 5069 I/O 8 Channel Voltage/Current Analog Input Module |
| 5069-OF4 | 5069 I/O 4 Channel Voltage/Current Analog Output Module |
| 5069-OF8 | 5069 I/O 8 Channel Voltage/Current Analog Output Module |
| 5069-IB8S | 5000 8 Channel 24VDC Safety Input Module |
| 5069-IB8SK | 5000 8 Channel 24VDC Safety Input Module - Conformally Coated |
| 5069-IB16K | 5069 I/O 16 Channel 24V DC Sink Input Module,Conformal Coated |
| 5069-IA16 | 5069 I/O 16 channels AC input modules, supporting both 120 & 240 VAC signals |
| 5069-IB16 | 5069 I/O 16 Channel 24V DC Sink Input Module |
| 5069-IB16F | 5069 I/O 16 Channel Fast 24V DC Sink Input Module |
| 5069-IB6F-3W | 5069 I/O 6 Channel 3 Wire Fast 24V DC Sink Input Module |
| 5069-OA16 | 5069 I/O 16 channels AC output module supporting both 120 & 240VAC output. |
| 5069-OB8 | 5069 I/O 8 channels high current 2A discrete output. |
| 5069-OBV8S | 5000 8 Channel 24VDC Safety Configurable Output Module |
| 5069-OBV8SK | 5000 8 Channel 24VDC Safety Configurable Output Module - Conformally Coated |
| 5069-OB16 | 5069 I/O 16 Channel 24V DC Source Output Module |
| 5069-OB16F | 5069 I/O 16 Channel Fast 24V DC Source Output Module |
| 5069-OB16K | 5069 I/O 16 Channel 24V DC Source Output Module,Conformal Coated |
| 5069-IY4K | 5069 I/O 4 Channel Universal Voltage/Current/RTD/TC Analog Input Module,Conformal Coated |
| 5069-OF4K | 5069 I/O 4 Channel Voltage/Current Analog Output Module,,Conformal Coated |
| 5069-OW4I | 5069 I/O 4 Channel Normally open individually isolated type Relay Output Module |
| 5069-OW16 | 5069 I/O 16 channels non isolated normally open relay output module. |
| 5069-OX4I | 5069 I/O 4 Channel Normally open/Normally Closed individually isolated type Relay Output Module |
| 5069-HSC2XOB4 | 5069 I/O 2 Channel High Speed Counter Module with 4 Channel 24V DC Source Outputs |
| 5069-ARM | 5069 I/O Address Reserve Module |
| 5069-L306ER | 5380, 600 KB User Memory, 8 I/Os, 16 EtherNet/IP Devices |
| 5069-L310ER | 5380, 1 MB User Memory, 8 I/Os, 24 EtherNet/IP Devices |
| 5069-L320ER | 5380, 2 MB, 16 I/Os, 40 EtherNet/IP Devices |
| 5069-L320ERP | 5380 Controller, 2 MB, 16 I/Os, 8 axis, 40 nodes, Process, Conformal Coated |
| 5069-L330ER | 5380, 3 MB User Memory, 31 I/Os, 60 EtherNet/IP Devices |
5069-L340ER | 5380, 4 MB User Memory, 31 I/Os, 90 EtherNet/IP Devices |
| 5069-L340ERP | 5380 Controller, 4 MB, 31 I/Os, 20 axis, 90 nodes, Process, Conformal Coated |
| 5069-L310ER-NSE | 5380, 1 MB User Memory, 8 I/Os, 24 EtherNet/IP Devices, No Super Cap |
| 5069-L306ERM | 5380, 600 KB User Memory, 8 I/Os, 2 axis, 16 EtherNet/IP Devices |
| 5069-L310ERM | 5380, 1 MB User Memory, 8 I/Os, 4 axis, 24 EtherNet/IP Devices |
| 5069-L310ERMK | 5380, 1 MB User Memory, 8 I/Os, 4 axis, 24 EtherNet/IP Devices, Conformally Coated |
| 5069-L320ERM | 5380, 2 MB, 16 I/Os, 8 axis, 40 EtherNet/IP Devices |
| 5069-L320ERMK | 5380 Controller, 2 MB, 16 I/Os, 8 axis, 40 nodes, Standard, Conformal Coated |
| 5069-L330ERM | 5380, 3 MB User Memory, 31 I/Os, 16 axis, 60 EtherNet/IP Devices |
| 5069-L330ERMK | 5380 Controller, 3 MB, 31 I/Os, 16 axis, 60 nodes, Standard, Conformal Coated |
| 5069-L340ERM | 5380, 4 MB User Memory, 31 I/Os, 20 axis, 90 EtherNet/IP Devices |
| 5069-L350ERM | 5380, 5 MB User Memory, 31 I/Os, 24 axis, 120 EtherNet/IP Devices |
| 5069-L350ERMK | 5380 Controller, 5 MB, 31 I/Os, 24 axis, 120 nodes, Standard, Conformal Coated |
| 5069-L380ERM | 5380, 8 MB User Memory, 31 I/Os, 28 axis, 150 EtherNet/IP Devices |
| 5069-L3100ERM | 5380, 10 MB User Memory, 31 I/Os, 32 axis, 180 EtherNet/IP Devices |
| 5069-L306ERS2 | 5380, SafetySIL2/PLd, 0.6MB Standard & 0.3MB Safety Memory, 16 nodes, 8 I/Os |
| 5069-L310ERS2 | 5380 Safety, SIL2/PLd, 1.0MB Standard & 0.5MB Safety Memory, 24 nodes, 8 I/Os |
| 5069-L320ERS2 | 5380 Safety, SIL2/PLd, 2.0MB Standard & 1.0MB Safety Memory, 40 nodes, 16 I/Os |
| 5069-L330ERS2 | 5380 Safety, SIL2/PLd, 3.0MB Standard & 1.5MB Safety Memory, 60 nodes, 31 I/Os |
| 5069-L340ERS2 | 5380 Safety, SIL2/PLd, 4.0MB Standard & 2.0MB Safety Memory, 90 nodes, 31 I/Os |
| 5069-L350ERS2 | 5380 Safety, SIL2/PLd, 5.0MB Standard & 2.5MB Safety Memory, 120 nodes, 31 I/Os |
| 5069-L380ERS2 | 5380 Safety, SIL2/PLd, 8.0MB Standard & 4.0MB Safety Memory, 150 nodes, 31 I/Os |
| 5069-L3100ERS2 | 5380 Safety, SIL2/PLd, 10.0MB Standard & 5.0MB Safety Memory, 180 nodes, 31 I/Os |
| 5069-L306ERMS2 | 5380 Safety, SIL2/PLd, 0.6MB Standard & 0.3MB Safety Memory, 16 nodes, 8 I/Os, 2 axis |
| 5069-L310ERMS2 | 5380 Safety, SIL2/PLd, 1.0MB Standard & 0.5MB Safety Memory, 24 nodes, 8 I/Os, 4 axis |
| 5069-L320ERMS2 | 5380 Safety SIL2/PLd, 2.0MB Standard & 1.0MB Safety Memory, 40 nodes, 16 I/Os, 8 axis |
| 5069-L330ERMS2 | 5380 Safety, SIL2/PLd, 3.0MB Standard & 1.5MB Safety Memory, 60 nodes, 31 I/Os, 16 axis |
| 5069-L340ERMS2 | 5380 Safety, SIL2/PLd, 4.0MB Standard & 2.0MB Safety Memory, 90 nodes, 31 I/Os, 20 axis |
| 5069-L350ERMS2 | 5380 Safety, SIL2/PLd, 5.0MB Standard & 2.5MB Safety Memory, 120 nodes, 31 I/Os, 24 axis |
| 5069-L380ERMS2 | 5380 Safety, SIL2/PLd, 8.0MB Standard & 4.0MB Safety Memory, 150 nodes, 31 I/Os, 28 axis |
| 5069-L3100ERMS2 | 5380 Safety, SIL2/PLd, 10.0MB Standard & 5.0MB Safety Memory, 180 nodes, 31 I/Os, 32 axis |
| 5069-L320ERS2K | 5380 Safety, SIL2/PLd, 2.0MB Standard & 1.0MB Safety Memory, 40 nodes, 16 I/Os, Conformal Coated |
| 5069-L320ERMS2K | 5380 Safety, SIL2/PLd, 2.0MB Standard & 1.0MB Safety Memory, 40 nodes, 16 I/Os, 8 axis , Conformal Coated |
| 5069-L330ERS2K | 5380 Safety, SIL2/PLd, 3.0MB Standard & 1.5MB Safety Memory, 60 nodes, 31 I/Os, Conformal Coated |
| 5069-L330ERMS2K | 5380 Safety, SIL2/PLd, 3.0MB Standard & 1.5MB Safety Memory, 60 nodes, 31 I/Os, 16 axis,Conformal Coated |
| 5069-L350ERS2K | 5380 Safety, SIL2/PLd, 5.0MB Standard & 2.5MB Safety Memory, 120 nodes, 31 I/Os, Conformal Coated |
| 5069-L350ERMS2K | 5380 Safety, SIL2/PLd, 5.0MB Standard & 2.5MB Safety Memory, 120 nodes, 31 I/Os, 24 axis, Conformal Coated |
| 5069-L306ERMS3 | 5380 Safety Controller, SIL3/PLe, 0.6MB Standard & 0.3MB Safety Memory, 16 nodes, 8 I/Os, 2 axis |
| 5069-L310ERMS3 | 5380 Safety Controller, SIL3/PLe, 1.0MB Standard & 0.5MB Safety Memory, 24 nodes, 8 I/Os, 4 axis |
| 5069-L310ERMS3K | 5380 Safety Controller, SIL3/PLe, 1.0MB Standard & 0.5MB Safety Memory, 24 nodes, 8 I/Os, 4 axis - Conformally Coated |
| 5069-L320ERMS3 | 5380 Safety Controller, SIL3/PLe, 2.0MB Standard & 1.0MB Safety Memory, 40 nodes, 16 I/Os, 8 axis |
| 5069-L320ERMS3K | 5380 Safety Controller, SIL3/PLe, 2.0MB Standard & 1.0MB Safety Memory, 40 nodes, 16 I/Os, 8 axis - Conformally Coated |
| 5069-L330ERMS3 | 5380 Safety Controller, SIL3/PLe, 3.0MB Standard & 1.5MB Safety Memory, 60 nodes, 31 I/Os, 16 axis |
| 5069-L330ERMS3K | 5380 Safety Controller, SIL3/PLe, 3.0MB Standard & 1.5MB Safety Memory, 60 nodes, 31 I/Os, 16 axis - Conformally Coated |
| 5069-L340ERMS3 | 5380 Safety Controller, SIL3/PLe, 4.0MB Standard & 2.0MB Safety Memory, 90 nodes, 31 I/Os, 20 axis |
| 5069-L350ERMS3 | 5380 Safety Controller, SIL3/PLe, 5.0MB Standard & 2.5MB Safety Memory, 120 nodes, 31 I/Os, 24 axis |
| 5069-L350ERMS3K | 5380 Safety Controller, SIL3/PLe, 5.0MB Standard & 2.5MB Safety Memory, 120 nodes, 31 I/Os, 24 axis - Conformally Coated |
| 5069-L380ERMS3 | 5380 Safety Controller, SIL3/PLe, 8.0MB Standard & 4.0MB Safety Memory, 150 nodes, 31 I/Os, 28 axis |
| 5069-L3100ERMS3 | 5380 Safety Controller, SIL3/PLe, 10.0MB Standard & 5.0MB Safety Memory, 180 nodes, 31 I/Os, 32 axis |
| 5069-L430ERMW | 03 MB User Memory, USB Port, 1GB Ethernet port, 60 EtherNet/IP Devices, 4 Character Alpha/Numeric Display, 31 I/Os, 16 axis, Windows 10 IoT, 64GB SSD |
| 5069-L450ERMW | 05 MB User Memory, USB Port, 1GB Ethernet port, 120 EtherNet/IP Devices, 4 Character Alpha/Numeric Display, Windows 10 IoT, 31 I/Os, 24 axis, 64GB SSD |
| 5069-L4100ERMW | 10 MB User Memory, USB Port,1GB Ethernet port, 180 EtherNet/IP Devices, 4 Character Alpha/Numeric Display, Windows 10 IoT, 31 I/Os, 32 axis, 64GB SSD |
| 5069-L4200ERMW | 20 MB User Memory, USB Port, 1GB Ethernet port,250 EtherNet/IP Devices, 4 Character Alpha/Numeric Display, 31 I/Os, 150 axis, Windows 10 IoT, 64GB SSD |
