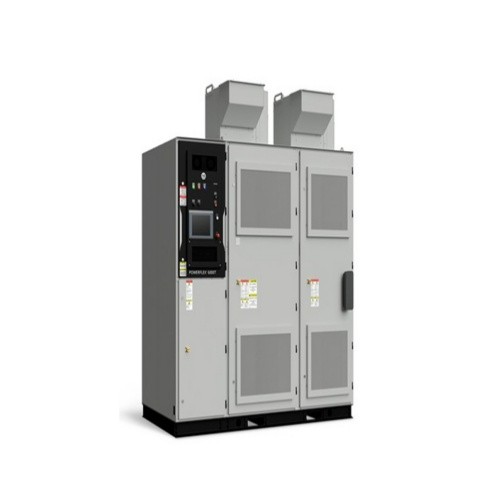

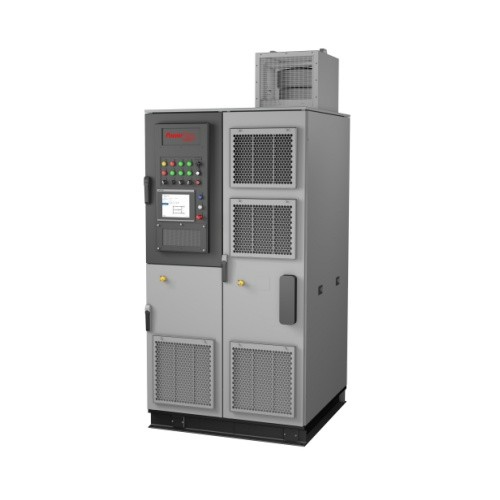

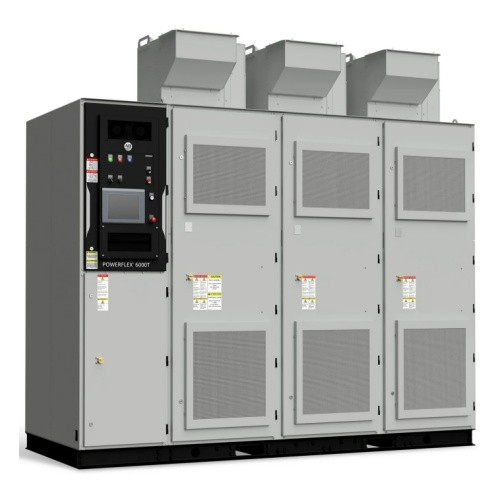

PowerFlex 6000T Medium Voltage Drive (VFD)

Overview

The Right Medium Voltage Drive for Your Facility

From industrial manufacturing plants to oil rigs in remote locations, PowerFlex VFDs are trusted for demanding applications by many of the world’s biggest companies.

And the smart PowerFlex 6000T medium voltage VFD not only helps keep production running, but the drive also helps predict downtime before it happens.

Medium Voltage Drive Benefits

PowerFlex 6000T VFDs provide precise speed, direction and torque control.  The medium voltage drive offers built-in EtherNet/IP and supports common communication protocols. Standardized VFD technology reduces complex system integration, operations and maintenance.

• Multiple control modes include flux vector control with up to 150% starting torque with an encoder and 100% without an encoder

• Reduce peak demand charges by operating near unity power factor throughout the speed range

• An integrally mounted, multi-pulse isolation transformer helps achieve low line side harmonics and high input power factor

• Multi-motor control like load sharing and sync-transfer control enables one PowerFlex MV VFD to control up to 10 motors

• The RealSine™ solution significantly reduces input harmonics. Reducing harmonic distortion helps improve system efficiency, reduce energy costs and minimize power distribution issues on the factory floor

• Providing real-time intelligence and predictive analytics, TotalFORCE technology helps reduce downtime by seeing problems before they happen

Medium Voltage Drive Offers Premier Integration

Create a connected, information-driven workforce. Our VFDs are designed to easily integrate via Premier Integration and scale.

Easy configuration, integration, visualization and operation in the Studio 5000 environment

Connected Components Workbench™ also allows for configuration, programming and visualization in a free software package

Extensive input power monitoring functionality for kW, kVA, kVAR, elapsed kWh, MWh and power factor

Secure flash-over-fiber firmware updates for all main control boards and power cells

Fast troubleshooting with the Forensic Data Recorder

MV Drives Outperform with TotalFORCE Smart Technology

Top-performing plants are powered by smart technology. TotalFORCE technology takes your production to the next level by enhancing the drive control and delivering real-time data to help improve production throughput and reduce downtime.

Reduce maintenance costs with equipment repair and replacement alerts

The VFD delivers predictive life alerts based on embedded analytics for critical components

Set analytic models to measure equipment speed or other characteristics

See drive component runtime hours and more for periodic maintenance requirements

Control single or multiple motors, via multiple control modes

Actively reduce system disturbances, and adapt to operating conditions to improve throughput

Expand predictive maintenance to your plant

Combine FactoryTalk  Analytics  GuardianAI  with PowerFlex 6000T VFDs and get an unprecedented view into the health of your plant assets.

This solution continuously monitors VFDs and plant assets and alerts you to problems before they occur, giving you more time to plan and act. With actionable insights, you can reduce risk, plan preventative maintenance and keep applications running more reliably.

Monitor drive health with TotalFORCE technology

Calculate the expected life of critical drive components based on actual use and environment

Project the remaining life span of fans, transformer, air filter and more

See component runtime hours for power cells, fans, etc.

Monitor plant assets via GuardianAI™ visibility

Analyze live electrical signal data from your existing PowerFlex VFDs, at high speeds right at the edge without the overhead of cloud infrastructure

Predict and identify failures of your pumps, fans or blowers

Get notifications of flow restrictions, cavitation, loose mounting, blade misalignments, bearing faults, etc.
