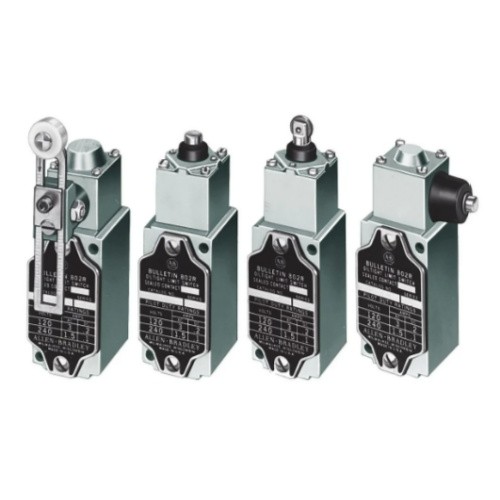

802R NEMA Type 13 Sealed Contact Hazardous Location Limit Switches

Our 802R NEMA Type 13 Sealed Contact Hazardous Location Limit Switches feature a rugged single contact, hermetically sealed in a glass envelope that has excellent contact reliability even in contaminated atmospheres. These switches are UL Listed for use in Class I, Division 2, Groups A, B, C, and D hazardous locations as defined by the National Electrical Code.

EMAIL

Overview

  • High contact reliability in contaminated atmospheres

  • NEMA Enclosure Type 13

  • Class I, groups B, C and D or Class II, groups E, F and G or Class III

  • Multiple operator styles

    • Side rotary

    • Wobble stick

    • Cat whisker

    • Adjustable top push

    • Top or side push

    • With or without rollers

Typical applications include:

  • Refineries

  • Distilleries

  • Grain elevators

  • Flour mills




Product Selection


802R Sealed Contact NEMA Type 13 Hazardous Location

Catalog NumberDescriptionAccessories
802R-ACLimit Switch, NEMA Type 4 and 13 Sealed Contact, Lever Type, Spring Return, Standard Operating Torque, CW and CCW operation, N.C. Contact
802R-AFLimit Switch, NEMA Type 4 and 13 Sealed Contact, Lever Type, Spring Return, Standard Operating Torque, CW and CCW operation, N.O. Contact
802R-AL1CW5Limit Switch, NEMA Type 4 and 13 Sealed Contact, Lever Type, Spring Return, Low Operating Torque, CW operation only, lever cannot be moved CCW, N.C. Contact, Supplied w/802T-W5 Rod Lever
802R-AL1FW5Limit Switch, NEMA Type 4 and 13 Sealed Contact, Lever Type, Spring Return, Low Operating Torque, CW operation only, lever cannot be moved CCW, N.O. Contact, Supplied w/802T-W5 Rod Lever
802R-AL2CW5Limit Switch, NEMA Type 4 and 13 Sealed Contact, Lever Type, Spring Return, Low Operating Torque, CCW operation only, lever cannot be moved CW, N.C. Contact, Supplied w/802T-W5 Rod Lever
802R-AL2FW5Limit Switch, NEMA Type 4 and 13 Sealed Contact, Lever Type, Spring Return, Low Operating Torque, CCW operation only, lever cannot be moved CW, N.O. Contact, Supplied w/802T-W5 Rod Lever
802R-ALCW5Limit Switch, NEMA Type 4 and 13 Sealed Contact, Lever Type, Spring Return, Low Operating Torque, CW and CCW operation, N.C. Contact, Supplied w/802T-W5 Rod Lever
802R-ALFW5Limit Switch, NEMA Type 4 and 13 Sealed Contact, Lever Type, Spring Return, Low Operating Torque, CW and CCW operation, N.O. Contact, Supplied w/802T-W5 Rod Lever
802R-AMCLimit Switch, NEMA Type 4 and 13 Sealed Contact, Lever type, Maintained Contact, CW and CCW operation, N.C. Contact
802R-AMFLimit Switch, NEMA Type 4 and 13 Sealed Contact, Lever type, Maintained Contact, CW and CCW operation, N.O. Contact
802R-BACLimit Switch, NEMA Type 4 and 13 Sealed Contact, Top Push Rod, Adjustable, N.C. Contact
802R-BAFLimit Switch, NEMA Type 4 and 13 Sealed Contact, Top Push Rod, Adjustable, N.O. Contact
802R-BCLimit Switch, NEMA Type 4 and 13 Sealed Contact, Top Push Rod, N.C. Contact
802R-BFLimit Switch, NEMA Type 4 and 13 Sealed Contact, Top Push Rod, N.O. Contact
802R-CCLimit Switch, NEMA Type 4 and 13 Sealed Contact, Side Push Rod, N.C. Contact
802R-CFLimit Switch, NEMA Type 4 and 13 Sealed Contact, Side Push Rod, N.O. Contact
802R-CWCLimit Switch, NEMA Type 4 and 13 Sealed Contact, Cat Whisker, Wire, N.C. Contact
802R-CWFLimit Switch, NEMA Type 4 and 13 Sealed Contact, Cat Whisker, Wire, N.O. Contact
802R-DCLimit Switch, NEMA Type 4 and 13 Sealed Contact, Top Push Roller, N.C. Contact
802R-DFLimit Switch, NEMA Type 4 and 13 Sealed Contact, Top Push Roller, N.O. Contact
802R-H1CLimit Switch, NEMA Type 4 and 13 Sealed Contact, Lever Type, Spring Return, High Operating Torque, CW operation only, lever can be moved CCW, N.C. Contact
802R-H1FLimit Switch, NEMA Type 4 and 13 Sealed Contact, Lever Type, Spring Return, High Operating Torque, CW operation only, lever can be moved CCW, N.O. Contact
802R-H2CLimit Switch, NEMA Type 4 and 13 Sealed Contact, Lever Type, Spring Return, High Operating Torque, CCW operation only, lever can be moved CW, N.C. Contact
802R-H2FLimit Switch, NEMA Type 4 and 13 Sealed Contact, Lever Type, Spring Return, High Operating Torque, CCW operation only, lever can be moved CW, N.O. Contact
802R-HCLimit Switch, NEMA Type 4 and 13 Sealed Contact, Lever Type, Spring Return, High Operating Torque, CW and CCW operation, N.C. Contact
802R-HFLimit Switch, NEMA Type 4 and 13 Sealed Contact, Lever Type, Spring Return, High Operating Torque, CW and CCW operation, N.O. Contact
802R-K1CLimit Switch, NEMA Type 4 and 13 Sealed Contact, Side Push Roller, Horizontal, N.C. Contact
802R-K1FLimit Switch, NEMA Type 4 and 13 Sealed Contact, Side Push Roller, Horizontal, N.O. Contact
802R-KCLimit Switch, NEMA Type 4 and 13 Sealed Contact, Side Push Roller, Vertical, N.C. Contact
802R-KFLimit Switch, NEMA Type 4 and 13 Sealed Contact, Side Push Roller, Vertical, N.O. Contact
802R-L1CLimit Switch, NEMA Type 4 and 13 Sealed Contact, Lever Type, Spring Return, Lever Cannot Move Counterclockwise, N.C. Contact
802R-L1FLimit Switch, NEMA Type 4 and 13 Sealed Contact, Lever Type, Spring Return, Lever Cannot Move Counterclockwise, N.O. Contact
802R-L2CLimit Switch, NEMA Type 4 and 13 Sealed Contact, Lever Type, Spring Return, Lever Cannot Move Clockwise, N.C. Contact
802R-L2FLimit Switch, NEMA Type 4 and 13 Sealed Contact, Lever Type, Spring Return, Lever Cannot Move Clockwise, N.O. Contact
802R-WS1CLimit Switch, NEMA Type 4 and 13 Sealed Contact, Wobble Stick, Wire, N.C. Contact
802R-WS1FLimit Switch, NEMA Type 4 and 13 Sealed Contact, Wobble Stick, Wire, N.O. Contact

NEMA Style Operating Levers


<td role="gridcell" style="padding: 6px; border-top-width: 0px; border-right-width: 0px

Catalog NumberDescriptionAccessories
802MC-W12Operating Lever, Corrosion Resistant Roller Lever, Non-Adjustable, 1.44 In, Roller On Front, Nylon, 0.75 In, 0.28 In
802MC-W1AOperating Lever, Corrosion Resistant Roller Lever, Non-Adjustable, 1.5 In, Roller On Front, Type 316 Stainless Steel, 0.75 In, 0.25 In
802MC-W1GOperating Lever, Corrosion Resistant Roller Lever, Non-Adjustable, 1.5 In, Roller On Rear, Nylon, 1.5 In, 0.28 In
802MC-W2BOperating Lever, Corrosion Resistant Roller Lever, Adjustable, 1.19 to 3.0 In, Roller On Front, Type 316 Stainless Steel, 0.75 In, 0.25 In
802MC-W3Operating Lever, Corrosion Resistant Rod Lever, Stainless Steel Rod, 5 In Long, 0.13 In
