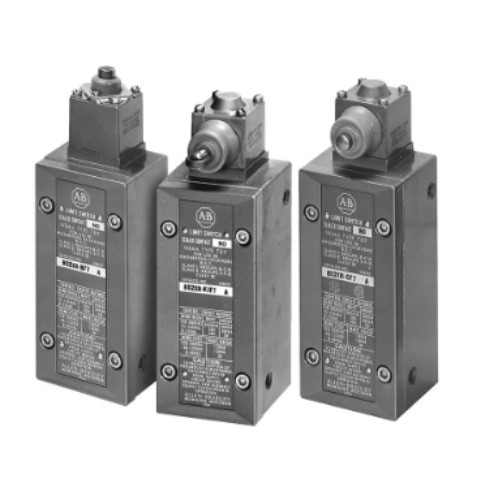

802XR Sealed Contact NEMA Type 7 And 9 Hazardous Location

Catalog NumberDescriptionAccessories
802XR-A3C7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Lever Type, Std Op Tq, N.C. Contact, CW operation only, lever can be moved CCW
802XR-A3F7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Lever Type, Std Op Tq, N.O. Contact, CW operation only, lever can be moved CCW
802XR-A4C7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Lever Type, Std Op Tq, N.C. Contact, CCW operation only, lever can be moved CW
802XR-A4F7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Lever Type, Std Op Tq, N.O. Contact, CCW operation only, lever can be moved CW
802XR-AC7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Lever Type, Std Op Tq, N.C. Contact, CW and CCW operation
802XR-AF7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Lever Type, Std Op Tq, N.O. Contact, CW and CCW operation
802XR-AMC7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Lever Type, Mnt Cont, N.C. Contact, CCW operation only, lever can be moved CW
802XR-AMF7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Lever Type, Mnt Cont, N.O. Contact, CCW operation only, lever can be moved CW
802XR-BAC7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Top Push Rod, Adj, N.C. Contact
802XR-BAF7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Top Push Rod, Adj, N.O. Contact
802XR-BC7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Top Push Rod, N.C. Contact
802XR-BF7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Top Push Rod, N.O. Contact
802XR-CC7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Side Push Rod, N.C. Contact
802XR-CF7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Side Push Rod, N.O. Contact
802XR-DC7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Top Push Roller, N.C. Contact
802XR-DF7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Top Push Roller, N.O. Contact
802XR-H1C7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Lever Type, High Op Tq, N.C. Contact, CW operation only, lever can be moved CCW
802XR-H1F7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Lever Type, High Op Tq, N.O. Contact, CW operation only, lever can be moved CCW
802XR-H2C7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Lever Type, High Op Tq, N.C. Contact, CCW operation only, lever can be moved CW
802XR-H2F7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Lever Type, High Op Tq, N.O. Contact, CCW operation only, lever can be moved CW
802XR-HC7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Lever Type, High Op Tq, N.C. Contact, CW and CCW operation
802XR-HF7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Lever Type, High Op Tq, N.O. Contact, CW and CCW operation
802XR-K1C7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Side Psh Horiz Roller, N.C. Contact
802XR-K1F7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Side Psh Horiz Roller, N.O. Contact
802XR-KC7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Side Psh Vert Roller, N.C. Contact
802XR-KF7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Side Psh Vert Roller, N.O. Contact
802XR-L1C7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Lever Type, Spr, N.C. Contact, CW operation only, lever can be moved CCW
802XR-L1F7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Lever Type, Spr, N.O. Contact, CW operation only, lever can be moved CCW
802XR-L2C7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Lever Type, Spr, N.C. Contact, CCW operation only, lever can be moved CW
802XR-L2F7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Lever Type, Spr, N.O. Contact, CCW operation only, lever can be moved CW
802XR-WS1C7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Cat Whisker, N.C. Contact
802XR-WS1F7Limit Switch, Sealed Contact NEMA Type 7 And 9 Hazardous Location, Cat Whisker, N.O. Contact
