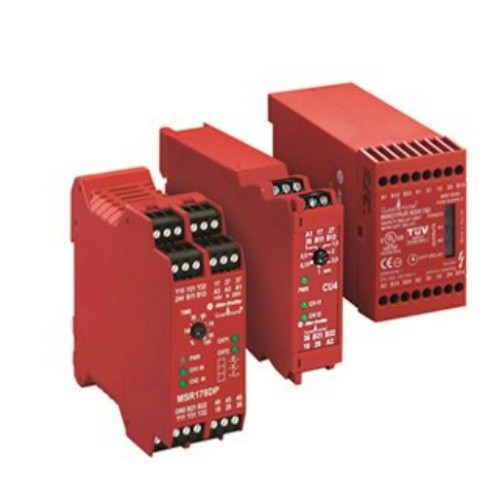

Single-function Safety Relays with Delayed Outputs

Our Single-function Safety Relays with Delayed Outputs are used in applications where power must be maintained for a fixed duration after an input signal is received. For example, driving a switch to maintain a guard door in the locked position for a fixed duration after a stop button is pressed.

EMAIL

Overview

  • Provides expansion modules with timing functions for the Guardmaster® safety relays and the MSR relay family

  • Increases the number of outputs while retaining the same integrity as the base unit

  • Offers multiple input/output configurations


Product Selection

Catalog NumberDescriptionAccessories
440R-M23080Monitoring Safety Relays w/ Delayed Outputs - MSR138DP, 3 N.O. Delayed Safety Outputs, 1s Delayed Timing, 115V AC
440R-M23081Monitoring Safety Relays w/ Delayed Outputs - MSR138.1DP, 2 N.O. Delayed Safety Outputs, 0.15 to 3 seconds Delayed Timing, 230V AC
440R-M23082Monitoring Safety Relays w/ Delayed Outputs - MSR138.1DP, 2 N.O. Delayed Safety Outputs, 0.15 to 3 seconds Delayed Timing, 115V AC
440R-M23084Monitoring Safety Relays w/ Delayed Outputs - MSR138.1DP, 2 N.O. Delayed Safety Outputs, 0.15 to 3 seconds Delayed Timing, 24V AC/DC
440R-M23085Monitoring Safety Relays w/ Delayed Outputs - MSR138.1DP, 2 N.O. Delayed Safety Outputs, 0.5 to 10 seconds Delayed Timing, 230V AC
440R-M23086Monitoring Safety Relays w/ Delayed Outputs - MSR138.1DP, 2 N.O. Delayed Safety Outputs, 0.5 to 10 seconds Delayed Timing, 115V AC
440R-M23088Monitoring Safety Relays w/ Delayed Outputs - MSR138.1DP, 2 N.O. Delayed Safety Outputs, 0.5 to 10 seconds Delayed Timing, 24V AC/DC
440R-M23089Monitoring Safety Relays w/ Delayed Outputs - MSR138.1DP, 2 N.O. Delayed Safety Outputs, 1.5 to 30 seconds Delayed Timing, 230V AC
440R-M23090Monitoring Safety Relays w/ Delayed Outputs - MSR138.1DP, 2 N.O. Delayed Safety Outputs, 1.5 to 30 seconds Delayed Timing, 115V AC
440R-M23092Monitoring Safety Relays w/ Delayed Outputs - MSR138.1DP, 2 N.O. Delayed Safety Outputs, 1.5 to 30 seconds Delayed Timing, 24V AC/DC
440R-M23140Monitoring Safety Relays w/ Delayed Outputs - MSR138DP, 3 N.O. Delayed Safety Outputs, 0.15 to 3 seconds Delayed Timing, 230V AC
440R-M23141Monitoring Safety Relays w/ Delayed Outputs - MSR138DP, 3 N.O. Delayed Safety Outputs, 0.15 to 3 seconds Delayed Timing, 115V AC
440R-M23143Monitoring Safety Relays w/ Delayed Outputs - MSR138DP, 3 N.O. Delayed Safety Outputs, 0.15 to 3 seconds Delayed Timing, 24V AC/DC
440R-M23143SMonitoring Safety Relays w/ Delayed Outputs - MSR138DP, 3 N.O. Delayed Safety Outputs, 0.15 to 3 seconds Delayed Timing, 24V AC/DC
440R-M23144Monitoring Safety Relays w/ Delayed Outputs - MSR138DP, 3 N.O. Delayed Safety Outputs, 0.5 to 10 seconds Delayed Timing, 230V AC
440R-M23145Monitoring Safety Relays w/ Delayed Outputs - MSR138DP, 3 N.O. Delayed Safety Outputs, 0.5 to 10 seconds Delayed Timing, 115V AC
440R-M23147Monitoring Safety Relays w/ Delayed Outputs - MSR138DP, 3 N.O. Delayed Safety Outputs, 0.5 to 10 seconds Delayed Timing, 24V AC/DC
440R-M23147SMonitoring Safety Relays w/ Delayed Outputs - MSR138DP, 3 N.O. Delayed Safety Outputs, 0.5 to 10 seconds Delayed Timing, 24V AC/DC
440R-M23148Monitoring Safety Relays w/ Delayed Outputs - MSR138DP, 3 N.O. Delayed Safety Outputs, 1.5 to 30 seconds Delayed Timing, 230V AC
440R-M23149Monitoring Safety Relays w/ Delayed Outputs - MSR138DP, 3 N.O. Delayed Safety Outputs, 1.5 to 30 seconds Delayed Timing, 115V AC
440R-M23151Monitoring Safety Relays w/ Delayed Outputs - MSR138DP, 3 N.O. Delayed Safety Outputs, 1.5 to 30 seconds Delayed Timing, 24V AC/DC
440R-S23173Monitoring Safety Relays w/ Delayed Outputs - CU4, 2 N.O. Delayed Safety Outputs, 0.15 to 3 seconds Delayed Timing, 24V AC/DC
440R-S23174Monitoring Safety Relays w/ Delayed Outputs - CU4, 2 N.O. Delayed Safety Outputs, 0.5 to 10 seconds Delayed Timing, 24V AC/DC
440R-S23175Monitoring Safety Relays w/ Delayed Outputs - CU4, 2 N.O. Delayed Safety Outputs, 1.5 to 30 seconds Delayed Timing, 24V AC/DC
