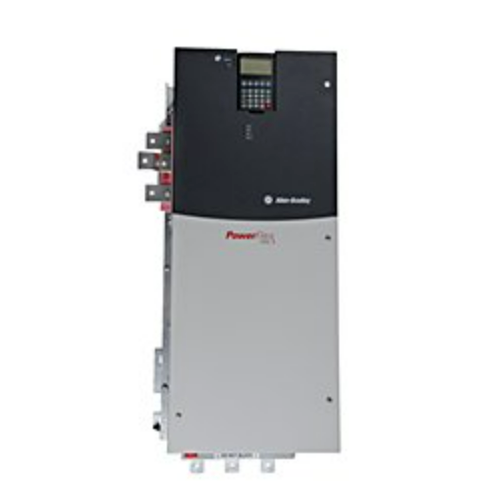

Our PowerFlex 700L AC Drives offer either PowerFlex 700 Vector Control or PowerFlex 700S Control on a fully regenerative, liquid-cooled power structure. This powerful combination offers great performance and high-power capabilities in a small package along with energy savings and low harmonics. The PowerFlex 700L AC Drives are flexible, high-performance drives available in panel mount and cabinet mount versions.
Overview
Power Ratings
380…480V: 445…..860 kW / 600 … 1150 Hp / 650 …. 1250 A
IP20, NEMA Type 1 (Frames 3A, 3B) with Rittal enclosure that includes the input circuit breaker
Available with the PowerFlex 700 or PowerFlex 700S control
Common Industrial Protocol (CIP™) communications including DeviceNet™, ControlNet™, and EtherNet/IP™
Regenerative braking for precise, high-response speed and position control, continuous holdback, rapid deceleration and stopping of high inertia loads
Regenerative braking puts energy back into the system to be used by other equipment
Patented liquid-cooled heatsink design
Low AC line harmonics with active converter to meet IEEE-519 and CE regulations
Integrated active converter and line-side filter allow input voltage boost while maintaining consistent system performance
Optional DriveLogix embedded control for application programmability and control of auxiliary functions
Configuration and programming via optional integral LCD keypad, remote keypad, or software
Premier Integration with PowerFlex AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time
Available Safety Options
Safe Torque-Off option (with 700S control) is certified at PLd/SIL2 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system. All safety options are available as a kit for user installation
Product Selection
| Catalog Number | Description |
| 20LC1K2A0ENNAN10WA | PowerFlex700L AC Drive, 400 VAC, 3 PH, 1250 Amps, 960HP Normal Duty, IP20 / Type 1, No HIM (Blank Plate), No Brake IGBT, Without Drive Mounted Brake Resistor, No Communication Module, 700 Vector 24V I/O, None, None |
| 20LC360N0ENNAN10WA | PowerFlex700L AC Drive, 400 VAC, 3 PH, 360 Amps, 268HP Normal Duty, IP00 / Open Type, No HIM (Blank Plate), No Brake IGBT, Without Drive Mounted Brake Resistor, No Communication Module, 700 Vector 24V I/O, None, None |
| 20LC650A0ENNAN10WA | PowerFlex700L AC Drive, 400 VAC, 3 PH, 650 Amps, 500HP Normal Duty, IP20 / Type 1, No HIM (Blank Plate), No Brake IGBT, Without Drive Mounted Brake Resistor, No Communication Module, 700 Vector 24V I/O, None, None |
| 20LD1K2A0ENNAN10WA | PowerFlex700L AC Drive, 480 VAC, 3 PH, 1250 Amps, 1150HP Normal Duty, IP20 / Type 1, No HIM (Blank Plate), No Brake IGBT, Without Drive Mounted Brake Resistor, No Communication Module, 700 Vector 24V I/O, None, None |
| 20LD360N0ENNAN10WA | PowerFlex700L AC Drive, 480 VAC, 3 PH, 360 Amps, 300HP Normal Duty, IP00 / Open Type, No HIM (Blank Plate), No Brake IGBT, Without Drive Mounted Brake Resistor, No Communication Module, 700 Vector 24V I/O, None, None |
| 20LD650A0ENNAN10WA | PowerFlex700L AC Drive, 480 VAC, 3 PH, 650 Amps, 600HP Normal Duty, IP20 / Type 1, No HIM (Blank Plate), No Brake IGBT, Without Drive Mounted Brake Resistor, No Communication Module, 700 Vector 24V I/O, None, None |
| 20LE425A0ENNAN10WA | PowerFlex700L AC Drive, 600 VAC, 3 PH, 425 Amps, 465HP Normal Duty, IP20 / Type 1, No HIM (Blank Plate), No Brake IGBT, Without Drive Mounted Brake Resistor, No Communication Module, 700 Vector 24V I/O, None, None |
| 20LE800A0ENNAN10WA | PowerFlex700L AC Drive, 600 VAC, 3 PH, 800 Amps, 870HP Normal Duty, IP20 / Type 1, No HIM (Blank Plate), No Brake IGBT, Without Drive Mounted Brake Resistor, No Communication Module, 700 Vector 24V I/O, None, None |
| 20LF380A0ENNAN10WA | PowerFlex700L AC Drive, 690 VAC, 3 PH, 380 Amps, 475HP Normal Duty, IP20 / Type 1, No HIM (Blank Plate), No Brake IGBT, Without Drive Mounted Brake Resistor, No Communication Module, 700 Vector 24V I/O, None, None |
| 20LF705A0ENNAN10WA | PowerFlex700L AC Drive, 690 VAC, 3 PH, 705 Amps, 881HP Normal Duty, IP20 / Type 1, No HIM (Blank Plate), No Brake IGBT, Without Drive Mounted Brake Resistor, No Communication Module, 700 Vector 24V I/O, None, None |
