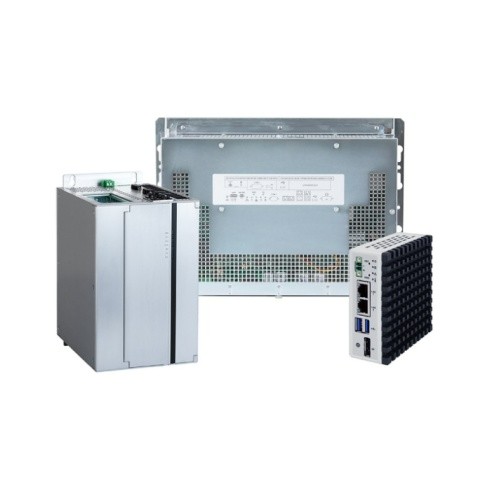

ASEM 6300B Box PC Industrial Computers

Our ASEM 6300B box PCs are available in multiple form factors and processors to match your application. These PCs may be paired with FactoryTalk View SE or FactoryTalk Optix software to provide the optimal HMI experience within the Rockwell Automation Connected Enterprise production system. All PCs come standard with the Windows 10 IoT Enterprise LTSC operating system but are optionally available without an operating system.

ASEM 6300B box PCs enhance cybersecurity by integrating ThinManager software. Multiple PCs with locally stored applications spread across a plant floor can increase the attack surface and security risks. ThinManager software allows applications to run and be maintained from a central and secure location.

The new ThinManager-ready BIOS comes preinstalled in the ASEM 6300B and 6300P industrial computers allowing you to take a new computer out of the box and place it directly into your ThinManager environment. The ThinManager console downloads all of the necessary application firmware and software without the need for Pre-Execution (PXE) or DHCP infrastructure. Just change the boot order on the new computer, define its IP address, and boot it into ThinManager. With over 4 million configurations to choose from, the built-in ThinManager-ready BIOS is an industry exclusive. Plus, you’ll have guaranteed support from Rockwell Automation for your entire ThinManager system.

A runtime license for the FactoryTalk Remote Access Basic is now available free of charge for all ASEM 6300 industrial PCs, including both new units and those you have already purchased and installed. Download it from Rockwell Automation’s Product Compatibility and Download Center to get started.

Overview

Intel Atom Class Box PC

Includes Intel Apollo Lake Atom processor, which are ideal for human machine interface (HMI), IIoT gateway and data logging applications
Available in single DisplayPort units that support up to 4K high resolution and feature 2x Ethernet and 2x USB 3.0 (Type A) ports
Offers robust mass storage supplied by an M.2 SSD up to 240 GB (PC Only)
Offers 4 GB or 8 GB DDR4 RAM that is permanently soldered to the motherboard to help prevent issues from shock and vibration
Offers fanless, book mount construction, which is optimal for applications requiring low maintenance
ThinManager compatible

Operating system	Microsoft Windows 10 IoT Enterprise LTSC 2019 64 bit
Processor	Intel Atom x7-3950 1.6 GHz (2.0 GHz Burst), 4 cores/4 threads, 2 MB L2 cache)
Video controller	Intel HD Graphics 505 integrated in x7-3950, 500/650 MHz
System memory - RAM	4 GB/8 GB, LP-DDR4 - 2400 (soldered)
Mass storage	M.2 size 2242 key B SSD SATA III (up to 240 GB)
LAN	2 x Ethernet 10/100/1000 Mbps (Intel I210, RJ45)
USB	Single DisplayPort - 2 x USB 3.0 (Type-A) / Dual DisplayPort - 4 x USB 3.0 (Type-A)
Video output	1 x DisplayPort or 2 x DisplayPort (model dependent)
Audio output	Standard 3.5 mm audio output jack (Only available on Dual Display model)
Power	24V DC (18...32V DC) isolated
Mounting	DIN rail mount, wall mount (single Display Port model)
Case material	Aluminum alloy
Operating temperature	0...50 °C (32…122 °F)
Storage temperature	-10...+60 °C (+14…140 °F)
Approvals	CE (EN 61326-1, EN 61010-1, EN 61010-2-201) cULus Listed (UL61010) RCM
Humidity	80% (non-condensing)

ASEM 6300 Industrial Computers and Monitors Overview

Industrial environments can be very harmful to electronic devices and components. ASEM™ 6300 industrial computers and monitors provide the protection you need and the visibility you want. Watch this overview video to see how ASEM 6300 products can help streamline your operations.

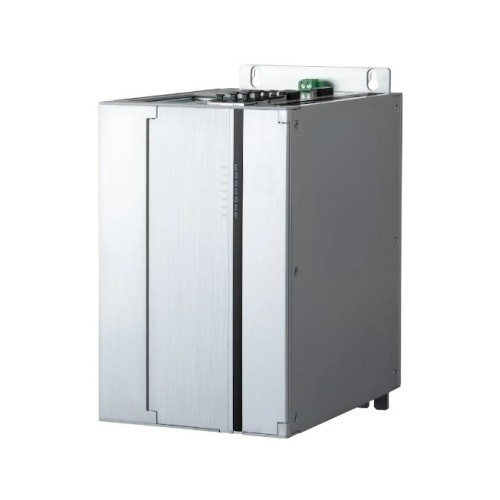

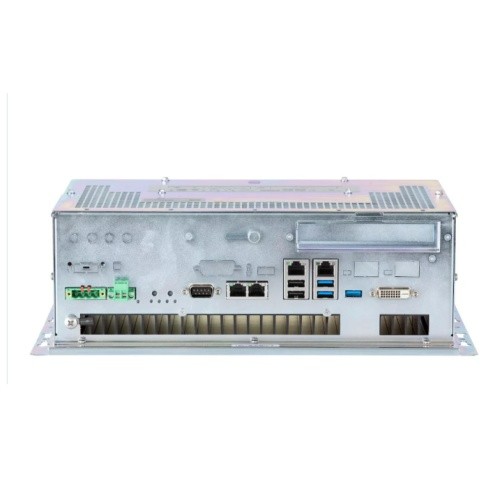

Intel Core i Class Box PC

Includes Core i3, i5 and i7 dual and quad core 7th generation 64-bit processors for mid-size applications
Provides 4 x Ethernet, 3 x USB 3.0 (Type A), 2 x USB 2.0 (Type A), 1 x RS-232 (DB9M), 1 x DVI-D
Offers up to 3 PCIe expansion slots
Available in a fanless design with book mount, wall mount, 24V DC
Available as a fan cooled unit with wall mount, which perform well in challenging environments with elevated temperatures

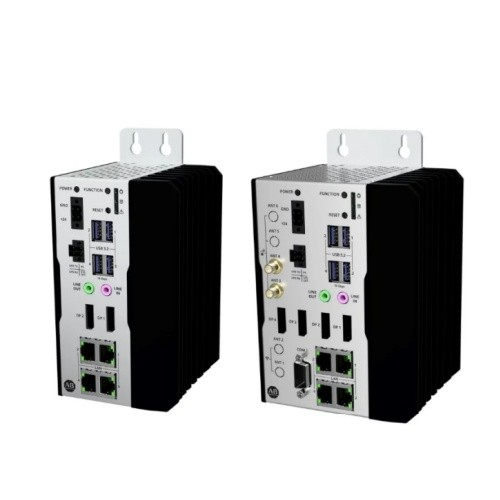

	6300B-BMB	6300B-PBC	6300B-PBD	6300B-JB1
Operating system	Windows 10 IoT Enterprise 2019 64 bit or no OS			Windows 10 LTSC 2021 or no OS
Processor	Intel Core i3-7100E 2.90GHz 64bit, 2 cores / 4 threads, 3MB Smart Cache Intel Core i5-7440EQ, 2.90 GHz (3.60GHz Turbo), 6MB Smart Cache, 4 cores, 4 threads Intel Core i7-7820EQ 3.00 GHz (3.70GHz Turbo) 64-bit, 4 cores / 8 threads, 8MB Smart Cache		Intel Core i3-7101E 3.9Ghz, 2 Cores - 4 threads - 3MB Smart Cache Intel Core i5-7500, 3.40 GHz (3.80GHz Turbo) 6MB Smart Cache, 4 cores - 4 threads Intel Core i7-7700 3.6 GHz (4.2GHz Turbo), 4 Cores - 8 threads - 8MB Smart Cache	Intel Celeron 6305E 1.8GHz, 2 cores - 2 threads - 4MB Smart Cache Intel Core i3-1115G4E 2.20GHz (3.90GHz Burst), 2 cores - 4 threads - 6MB Smart Cache Intel Core i5-1145G7E 1.50GHz (4.10GHz Burst), 4 cores - 8 threads - 8MB Smart Cache Intel Core i7-1185G7E 1.80GHz (4.40GHz Burst), 4 cores - 8 threads - 12MB Smart Cache
Chipset	Intel HM175 PCH (Platform Controller Hub)		Intel C236 PCH (Platform Controller Hub)	Intel Tiger Lake PCH (Platform Controller Hub), Included into processor chip (SoC)
Video controller	Intel HD Graphics 630 integrated into Intel Core microprocessor 950 MHz/1 GHz Video RAM (shared)		Intel HD 630 Graphics integrated in Intel Core i3 & i5 350 MHz/1.10 GHz Intel HD 630 Graphics integrated in Intel Celeron microprocessor Intel Core i7 350 MHz/1.15 GHz	Intel UHD Graphics integrated in Intel Celeron, Intel Core i3-1115G4E and i3-1115GRE Intel Iris X Graphics integrated in Intel Core i5-1145G7E, i7-1185G7E
System memory – RAM	Up to 32GB DDR4-2400 2 SODIMM modules			Celeron: 4 or 8GB (LPDDR4X) i3, i5: 8 or 16GB (LPDDR4X) i7: 16 or 32GB (LPDDR4X)
Mass storage	Up to 1 TB 2.5” SSD SATA III 1 x mSATA SATA III interface		Up to 1 TB 2.5” SSD SATA III 1 x M.2 2280 onboard connector, PCIe	No Storage 128 GB … 2 TB M.2 SSD (NMVe)
LAN	4 x Ethernet 10/100/1000 Mbps (RJ45)
Video output	1 x DVI-D Single Link (max resolution: 1920x1080 Full HD)			2 or 4x DisplayPort++ V1.2
Power	24V DC (18…32V DC) isolated		100V/230V AC	24V DC (18V to 32V DC) isolated
Operating temperature	0…50 °C (32…122 °F) with Core i3 processor 0…45 °C (32…113 °F) with Core i7 processor		0…50 °C (32…122 °F)	0…50 °C (32…122 °F)
Storage temperature	-10…+60 °C (14…140 °F)			-20…+65 °C (-4…+149 °F)
Approvals	CE (EN 61326-1, EN 61010-1, EN 61010-2- 201) cULus Listed (UL61010) RCM KC
Serial	1 x RS-232 (DB9M)			1 x RS-232 (DB9M; four display only)
USB	1 x USB 3.0 front (Type-A) 2 x USB 2.0 top (Type-A) + 2 x USB 3.0 top (Type-A)			4x USB 3.1 Gen2 (Type-A)
Mounting	Book mount only, fan or fanless option	Wall mount only, fanless	Wall mount only, with fan	DIN Rail or book mount, fanless
Expansion slots	No expansion 1 PCIe x4 and PCI half size 2 x PCIe x4	No expansion 1 PCI/PCIe 2 slots for 2.5'' HDD/SDD (RAID 1)	No expansion 1PCIe x16 1PCIe x16, 1PCIe x4, 1PCIe x1 2 x PCIe x8 + 1x PCIe x4	No expansion
Battery	1x (CR2032 or BR2032) Internal access

ASEM 6300B Configure to Order Box PC

Available with Trusted Platform Module (TPM) enabled BIOS
Features additional system configuration expansion options (including support for RAID)
Available with additional communication ports
Features storage options including CFAST
Available with long distance Remote Video Link (RVL) connectivity
Features options for Intel Atom class families

Available with optional DIN rail mounting
Available with Dual-Core Intel Atom x5-E3950 and Quad-Core Intel Atom x7-E3950 CPUs
Available in single display and dual display versions
Available in 4GB and 8GB versions
