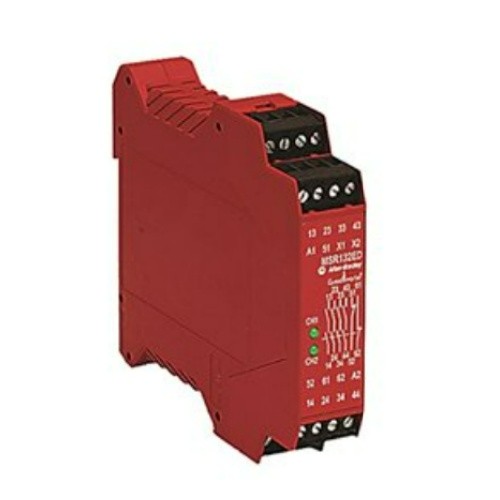

Monitoring Expansion Relays

Our monitoring expansion safety relays have single- or dual-channel input with either immediate or time off delayed outputs. These are designed to operate as an extension of a master safety relay that mimics the master relays outputs.

EMAIL

Overview

  • Provides expansion modules that increase the number of safety outputs of MSR safety relays with same level of integrity

  • Offers time delayed functionality in expansion modules that allows power to be maintained for a fixed period of time



Product Selection


440R Expansion Units


Catalog NumberDescriptionAccessories
440R-E23097440R Expansion Units, MSR132EP, 4 N.O. Immediate Safety Outputs, 2 N.C. Auxiliary Outputs, 0s Delay Time, 24V DC Power Supply, Cat. 4 per EN 954-1 (ISO 13849-1) , 22.5 mm Housing Width, Removable Terminals
440R-E23098440R Expansion Units, MSR132EDP, 4 N.O. Delayed Safety Outputs, 2 N.C. Auxiliary Outputs, 2s Delay Time, 24V DC Power Supply, Cat. 4 per EN 954-1 (ISO 13849-1) , 22.5 mm Housing Width, Removable Terminals
440R-E23159440R Expansion Units, MSR132EDP, 4 N.O. Delayed Safety Outputs, 2 N.C. Auxiliary Outputs, 0.5s Delay Time, 24V DC Power Supply, Cat. 4 per EN 954-1 (ISO 13849-1) , 22.5 mm Housing Width, Removable Terminals
440R-E23160440R Expansion Units, MSR132EDP, 4 N.O. Delayed Safety Outputs, 2 N.C. Auxiliary Outputs, 1s Delay Time, 24V DC Power Supply, Cat. 4 per EN 954-1 (ISO 13849-1) , 22.5 mm Housing Width, Removable Terminals
440R-E23161440R Expansion Units, MSR132EDP, 4 N.O. Delayed Safety Outputs, 2 N.C. Auxiliary Outputs, 3s Delay Time, 24V DC Power Supply, Cat. 4 per EN 954-1 (ISO 13849-1) , 22.5 mm Housing Width, Removable Terminals
440R-E23162440R Expansion Units, MSR132EDP, 4 N.O. Delayed Safety Outputs, 2 N.C. Auxiliary Outputs, 4s Delay Time, 24V DC Power Supply, Cat. 4 per EN 954-1 (ISO 13849-1) , 22.5 mm Housing Width, Removable Terminals
440R-E23191440R Expansion Units, MSR132E, 4 N.O. Immediate Safety Outputs, 2 N.C. Auxiliary Outputs, 0s Delay Time, 24V DC Power Supply, Cat. 4 per EN 954-1 (ISO 13849-1) , 22.5 mm Housing Width, Fixed Terminals
440R-E23192440R Expansion Units, MSR132ED, 4 N.O. Delayed Safety Outputs, 2 N.C. Auxiliary Outputs, 0.5s Delay Time, 24V DC Power Supply, Cat. 4 per EN 954-1 (ISO 13849-1) , 22.5 mm Housing Width, Fixed Terminals
440R-E23193440R Expansion Units, MSR132ED, 4 N.O. Delayed Safety Outputs, 2 N.C. Auxiliary Outputs, 1s Delay Time, 24V DC Power Supply, Cat. 4 per EN 954-1 (ISO 13849-1) , 22.5 mm Housing Width, Fixed Terminals
440R-E23194440R Expansion Units, MSR132ED, 4 N.O. Delayed Safety Outputs, 2 N.C. Auxiliary Outputs, 2s Delay Time, 24V DC Power Supply, Cat. 4 per EN 954-1 (ISO 13849-1) , 22.5 mm Housing Width, Fixed Terminals
440R-E23195440R Expansion Units, MSR132ED, 4 N.O. Delayed Safety Outputs, 2 N.C. Auxiliary Outputs, 3s Delay Time, 24V DC Power Supply, Cat. 4 per EN 954-1 (ISO 13849-1) , 22.5 mm Housing Width, Fixed Terminals

Safety Light Curtain Accessories


Catalog NumberDescriptionAccessories
440L-AF6101Steel L-shaped end cap mounting bracket (4 per package)
440L-AF6108Aluminium middle mounting bracket for vibratory applications
440L-AF6109GuardShield LAT Bracket
440L-AF6120GuardShield pair - Vertical shock mount kit
440L-AF6121GuardShield pair - Horizontial shock mount kit
440L-AF6122GuardShield single Middle mounting bracket - Vertical shock mount kit (2 required per pair)
440L-AF6123GuardShield single middle mounting bracket Horizontial shock mount kit (2 required per pair)
440L-AGST320GuardShield Pair Washdown enclosure kit, 320mm
