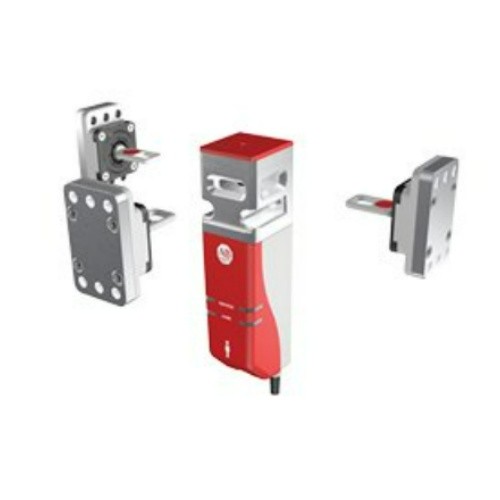

440G-MZ Guard Locking Switch

Our 440G-MZ Guard Locking Switches help protect personnel and are suitable for many types of guard doors, including full-sized guard doors. These switches allow full body access to the safeguarded area, where a high holding force and a wide tolerance to guard misalignment, and an escape release option are commonly required. Our 440G-MZ has embedded GuardLink technology that makes it a smart device and enables premier integration.

Overview

Optimized for full body access
Provides holding force of 2500 N for guard locking a full-size guard door
Optional escape release enables exit from the safeguarded area
Includes tongue actuator movement in multiple axes, which facilitates ±5 mm misalignment tolerance
Offers network integration via EtherNet/IP communication adapter with safety relay
Includes RFID unique (high) or standard (low) coded actuator for flexible level of tamper-proofing
Features highly visible 270° wrap-around status indicators for LINK and DEVICE status
Offers SIL 3, PLe, Cat 4 safety ratings – the highest level of safety
Available to operate as a standalone device (5-pin OSSD connection) or in a GuardLink system
Includes mounting with three entry points on hinged or sliding doors
Available in two models: Power to Release (safety of people) and Power to Lock (machine protection)

Product Selection

Catalog Number	Description	Accessories
440G-MZS20SNLJ	Guard Locking Switch - 440G-MZ: Power to Lock, Solenoid Voltage: 24V DC, Solenoid Contacts: None, Contacts(Safety and Aux): 2 x PNP (0.2A max.), No Auxiliary, Actuator: RFID Standard, Conduit Entry: 6-in. (150mm) Pigtail with M12 male 5-Pin QD
440G-MZS20SNRJ	Guard Locking Switch - 440G-MZ: Power to Release, Solenoid Voltage: 24V DC, Solenoid Contacts: None, Contacts(Safety and Aux): 2 x PNP (0.2A max.), No Auxiliary, Actuator: RFID Standard, Conduit Entry: 6-in. (150mm) Pigtail with M12 male 5-Pin QD
440G-MZS20UNLJ	Guard Locking Switch - 440G-MZ: Power to Lock, Solenoid Voltage: 24V DC, Solenoid Contacts: None, Contacts(Safety and Aux): 2 x PNP (0.2A max.), No Auxiliary, Actuator: RFID Unique, Conduit Entry: 6-in. (150mm) Pigtail with M12 male 5-Pin QD
440G-MZS20UNRJ	Guard Locking Switch - 440G-MZ: Power to Release, Solenoid Voltage: 24V DC, Solenoid Contacts: None, Contacts(Safety and Aux): 2 x PNP (0.2A max.), No Auxiliary, Actuator: RFID Unique, Conduit Entry: 6-in. (150mm) Pigtail with M12 male 5-Pin QD
440G-MZS20SNRJE	Guard Locking Switch - 440G-MZ: Power to Release with Escape Release, Solenoid Voltage: 24V DC, Solenoid Contacts: None, Contacts(Safety and Aux): 2 x PNP (0.2A max.), No Auxiliary, Actuator: RFID Standard, Conduit Entry: 6-in. (150mm) Pigtail with M12 male 5-Pin QD
440G-MZS20UNRJE	Guard Locking Switch - 440G-MZ: Power to Release with Escape Release, Solenoid Voltage: 24V DC, Solenoid Contacts: None, Contacts(Safety and Aux): 2 x PNP (0.2A max.), No Auxiliary, Actuator: RFID Unique, Conduit Entry: 6-in. (150mm) Pigtail with M12 male 5-Pin QD
440G-MZS20SNLJE	Guard Locking Switch - 440G-MZ: Power to Lock with Escape Release, Solenoid Voltage: 24V DC, Solenoid Contacts: None, Contacts(Safety and Aux): 2 x PNP (0.2A max.), No Auxiliary, Actuator: RFID Standard, Conduit Entry: 6-in. (150mm) Pigtail with M12 male 5-Pin QD
440G-MZS20UNLJE	Guard Locking Switch - 440G-MZ: Power to Lock with Escape Release, Solenoid Voltage: 24V DC, Solenoid Contacts: None, Contacts(Safety and Aux): 2 x PNP (0.2A max.), No Auxiliary, Actuator: RFID Unique, Conduit Entry: 6-in. (150mm) Pigtail with M12 male 5-Pin QD
