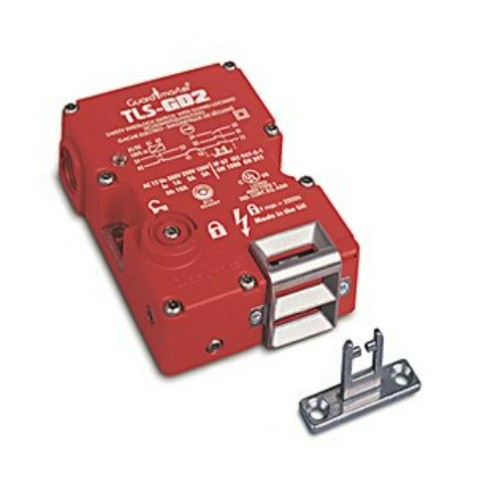

Our TLS-GD2 Guard Locking Switch is a positive-mode, tongue-operated interlock switch. It locks a machine guard closed until power is isolated then keeps the power isolated while the guard is open. The TLS-GD2 has three safety (N.C.) contacts and two auxiliary (N.O.) contacts.
Power to Release or Power to Lock
High locking force 2000 N (450 lb)
2 N.C. and 1 N.O. for position monitoring
1 N.C. and 1 N.O. or 2 N.C. for lock monitoring
Rotatable head (four possible key entry slots)
Conforms to EN 1088 and EN 60947-5-1
Escape release version available
IP69K, suitable for high-pressure, high-temperature washdown
Product Selection
| Catalog Number | Catalog Number |
| 440G-T21BGPL-1B | 440G-T27183 |
| 440G-T21BGPL-2B | 440G-T27184 |
| 440G-T21BGPM-1B | 440G-T27186 |
| 440G-T21BGPM-2B | 440G-T27233 |
| 440G-T21BGPM-4B | 440G-T27234 |
| 440G-T21BGPM-5B | 440G-T27235 |
| 440G-T21BGPT-1B | 440G-T27239 |
| 440G-T21BGPT-2B | 440G-T27240 |
| 440G-T21BGPT-4B | 440G-T27241 |
| 440G-T21BGPT-5B | 440G-T27245 |
| 440G-T21BNPL-1B | 440G-T27246 |
| 440G-T21BNPM-1B | 440G-T27247 |
| 440G-T21BNPM-2B | 440G-T27251 |
| 440G-T21BNPM-4B | 440G-T27252 |
| 440G-T21BNPM-5B | 440G-T27253 |
| 440G-T21BNPT-1B | 440G-T27254 |
| 440G-T21BNPT-2B | 440G-T27255 |
| 440G-T21BNPT-4B | 440G-T27256 |
| 440G-T21BNPT-5B | 440G-T27257 |
| 440G-T27121 | 440G-T27258 |
| 440G-T27123 | 440G-T27259 |
| 440G-T27124 | 440G-T27260 |
| 440G-T27127 | 440G-T27261 |
| 440G-T27129 | 440G-T27262 |
| 440G-T27132 | 440G-T2NBBPH-1L |
| 440G-T27134 | 440G-T2NBBPH-1R |
| 440G-T27136 | 440G-T2NBBPH-2R |
| 440G-T27138 | 440G-T27175 |
| 440G-T27169 | 440G-T27177 |
| 440G-T27171 | 440G-T27178 |
| 440G-T27172 | 440G-T27180 |
| 440G-T27174 | 440G-T27181 |
