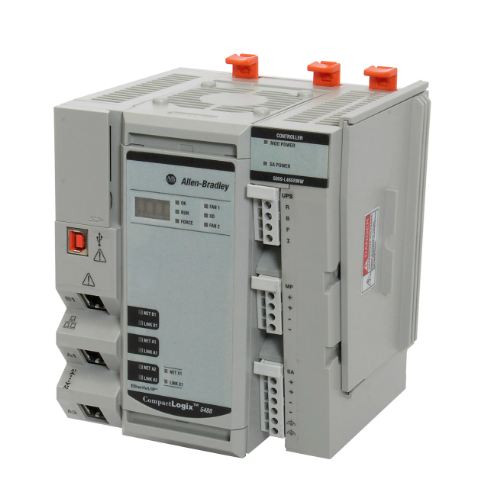

5480 Controllers Small Control Systems

5480 controllers are real-time controllers with Windows 10 IoT Enterprise running in parallel to the Logix control engine. Our 5480 uses the same re-architected control engine deployed in the ControlLogix 5580 and 5380 controllers. This line of Logix controllers supports embedded Windows applications, such as analytics, data gathering, and predictive computations. The ability to collect data and make decisions at the machine level helps to support the Connected Enterprise and benefits both end users and OEMs.

EMAIL


Overview


Provides a Logix based real-time controller that runs an instance of Windows 10 IoT Enterprise

Supported in Studio 5000 Logix Designer version 32

Is ideal for mid-size to large applications requiring high performance control and data throughput

Enables high-speed I/O, motion control, and Device Level Ring/Linear topologies

Includes three GbE Ethernet/IP ports that enable high-speed communications, I/O, and motion control (two are configurable, and support Dual IP address or Device Level Ring)

Includes one GbE Ethernet port as a dedicated commercial OS network interface

Supports up to 31 local Bulletin 5069 Compact I/O modules

Offers enhanced security features that include digitally-signed controller firmware, controller-based change detection, and a log of role-based access control to routines and Add-On instructions

Allows users to deploy Windows 10 based off the shelf and/or custom applications while tightly integrated with real time Logix control

Includes integrated DisplayPort for high definition industrial monitor connectivity

Includes two USB 3.0 ports for OS peripheral and expanded data storage capability。



Product Comparison

CompactLogix 5480
Catalog Numbers

Logix
Memory
Node
Count
I/O
Expansion
Motion
Physical
Axis
5069-L430ERMW3MB6031
16
5069-L450ERMW5MB1203124
5069-L4100ERMW10MB1803132
5069-L4200ERMW
(formerly 5069-L46ERMW)
20MB250+31150


Product Selection

Catalog Number

Description

5069-AENTR

5069  I/O Slim EtherNet/IP Adapter

5069-AENTRK

5069  I/O Slim EtherNet/IP Adapter,Conformal Coated

5069-AEN2TR

5069  I/O EtherNet/IP Adapter

5069-IY4

5069  I/O 4 Channel Universal Voltage/Current/RTD/TC Analog Input Module

5069-IF8

5069  I/O 8 Channel Voltage/Current Analog Input Module

5069-OF4

5069  I/O 4 Channel Voltage/Current Analog Output Module

5069-OF8

5069  I/O 8 Channel Voltage/Current Analog Output Module

5069-IB8S

Compact 5000 8 Channel 24VDC Safety Input Module

5069-IB8SK

Compact 5000 8 Channel 24VDC Safety Input Module - Conformally Coated

5069-IB16K

5069  I/O 16 Channel 24V DC Sink Input Module,Conformal Coated

5069-IA16

5069  I/O 16 channels AC input modules, supporting both 120 & 240 VAC signals

5069-IB16

5069  I/O 16 Channel 24V DC Sink Input Module

5069-IB16F

5069  I/O 16 Channel Fast 24V DC Sink Input Module

5069-IB6F-3W

5069  I/O 6 Channel 3 Wire Fast 24V DC Sink Input Module

5069-OA16

5069  I/O 16 channels AC output module supporting both 120 & 240VAC output.

5069-OB8

5069  I/O 8 channels high current 2A discrete output.

5069-OBV8S

Compact 5000 8 Channel 24VDC Safety Configurable Output Module

5069-OBV8SK

Compact 5000 8 Channel 24VDC Safety Configurable Output Module - Conformally Coated

5069-OB16

5069  I/O 16 Channel 24V DC Source Output Module

5069-OB16F

5069  I/O 16 Channel Fast 24V DC Source Output Module

5069-OB16K

 5069  I/O 16 Channel 24V DC Source Output Module,Conformal Coated

5069-IY4K 5069  I/O 4 Channel Universal Voltage/Current/RTD/TC Analog Input

5069-OF4K

5069  I/O 4 Channel Voltage/Current Analog Output Module,,Conformal Coated

5069-OW4I

5069  I/O 4 Channel Normally open individually isolated type Relay Output Module

5069-OW16

5069  I/O 16 channels non isolated normally open relay output module.

5069-OX4I

5069  I/O 4 Channel Normally open/Normally Closed individually isolated type Relay Output Module

5069-FPD

with HART

5069-HSC2XOB4

5069  I/O 2 Channel High Speed Counter Module with 4 Channel 24V DC Source Outputs

5069-ARM

 5069  I/O Address Reserve Module

5069-L306ER

Controller, CompactLogix 5380, 600 KB User Memory, 8 I/Os, 16 EtherNet/IP Devices

5069-L310ER

Controller, CompactLogix 5380, 1 MB User Memory, 8 I/Os, 24 EtherNet/IP Devices

5069-L320ER

Controller, CompactLogix 5380, 2 MB, 16 I/Os, 40 EtherNet/IP Devices

5069-L320ERP

CompactLogix 5380 Controller, 2 MB, 16 I/Os, 8 axis, 40 nodes, Process, Conformal Coated

5069-L330ER

Controller, CompactLogix 5380, 3 MB User Memory, 31 I/Os, 60 EtherNet/IP Devices

5069-L340ER

Controller, CompactLogix 5380, 4 MB User Memory, 31 I/Os, 90 EtherNet/IP Devices

5069-L340ERP

CompactLogix 5380 Controller, 4 MB, 31 I/Os, 20 axis, 90 nodes, Process, Conformal Coated

5069-L310ER-NSE

Controller, CompactLogix 5380, 1 MB User Memory, 8 I/Os, 24 EtherNet/IP Devices, No Super Cap

5069-L306ERM

Controller, CompactLogix 5380, 600 KB User Memory, 8 I/Os, 2 axis, 16 EtherNet/IP Devices

5069-L310ERM

Controller, CompactLogix 5380, 1 MB User Memory, 8 I/Os, 4 axis, 24 EtherNet/IP Devices

5069-L310ERMK

Controller, CompactLogix 5380, 1 MB User Memory, 8 I/Os, 4 axis, 24 EtherNet/IP Devices, Conformally Coated

5069-L320ERM

Controller, CompactLogix 5380, 2 MB, 16 I/Os, 8 axis, 40 EtherNet/IP Devices

5069-L320ERMK

CompactLogix 5380 Controller, 2 MB, 16 I/Os, 8 axis, 40 nodes, Standard, Conformal Coated

5069-L330ERM

Controller, CompactLogix 5380, 3 MB User Memory, 31 I/Os, 16 axis, 60 EtherNet/IP Devices

5069-L330ERMK

CompactLogix 5380 Controller, 3 MB, 31 I/Os, 16 axis, 60 nodes, Standard, Conformal Coated

5069-L340ERM

Controller, CompactLogix 5380, 4 MB User Memory, 31 I/Os, 20 axis, 90 EtherNet/IP Devices

5069-L350ERM

Controller, CompactLogix 5380, 5 MB User Memory, 31 I/Os, 24 axis, 120 EtherNet/IP Devices

5069-L350ERMK

CompactLogix 5380 Controller, 5 MB, 31 I/Os, 24 axis, 120 nodes, Standard, Conformal Coated

5069-L380ERM

Controller, CompactLogix 5380, 8 MB User Memory, 31 I/Os, 28 axis, 150 EtherNet/IP Devices

5069-L3100ERM

Controller, CompactLogix 5380, 10 MB User Memory, 31 I/Os, 32 axis, 180 EtherNet/IP Devices

5069-L306ERS2

Controller, Compact GuardLogix 5380, SafetySIL2/PLd, 0.6MB Standard & 0.3MB Safety Memory, 16 nodes, 8 I/Os

5069-L310ERS2

Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 1.0MB Standard & 0.5MB Safety Memory, 24 nodes, 8 I/Os

5069-L320ERS2

Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 2.0MB Standard & 1.0MB Safety Memory, 40 nodes, 16 I/Os

5069-L330ERS2

Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 3.0MB Standard & 1.5MB Safety Memory, 60 nodes, 31 I/Os

5069-L340ERS2

Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 4.0MB Standard & 2.0MB Safety Memory, 90 nodes, 31 I/Os

5069-L350ERS2

Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 5.0MB Standard & 2.5MB Safety Memory, 120 nodes, 31 I/Os

5069-L380ERS2

Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 8.0MB Standard & 4.0MB Safety Memory, 150 nodes, 31 I/Os

5069-L3100ERS2

Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 10.0MB Standard & 5.0MB Safety Memory, 180 nodes, 31 I/Os

5069-L306ERMS2

Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 0.6MB Standard & 0.3MB Safety Memory, 16 nodes, 8 I/Os, 2 axis

5069-L310ERMS2

Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 1.0MB Standard & 0.5MB Safety Memory, 24 nodes, 8 I/Os, 4 axis

5069-L320ERMS2

Controller, Compact GuardLogix 5380 Safety SIL2/PLd, 2.0MB Standard & 1.0MB Safety Memory, 40 nodes, 16 I/Os, 8 axis

5069-L330ERMS2

Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 3.0MB Standard & 1.5MB Safety Memory, 60 nodes, 31 I/Os, 16 axis

5069-L340ERMS2

Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 4.0MB Standard & 2.0MB Safety Memory, 90 nodes, 31 I/Os, 20 axis

5069-L350ERMS2

Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 5.0MB Standard & 2.5MB Safety Memory, 120 nodes, 31 I/Os, 24 axis

5069-L380ERMS2

Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 8.0MB Standard & 4.0MB Safety Memory, 150 nodes, 31 I/Os, 28 axis

5069-L3100ERMS2

Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 10.0MB Standard & 5.0MB Safety Memory, 180 nodes, 31 I/Os, 32 axis

5069-L320ERS2K

Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 2.0MB Standard & 1.0MB Safety Memory, 40 nodes, 16 I/Os, Conformal Coated

5069-L320ERMS2K

Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 2.0MB Standard & 1.0MB Safety Memory, 40 nodes, 16 I/Os, 8 axis, Conformal Coated

5069-L330ERS2K

Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 3.0MB Standard & 1.5MB Safety Memory, 60 nodes, 31 I/Os, Conformal Coated

5069-L330ERMS2K

Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 3.0MB Standard & 1.5MB Safety Memory, 60 nodes, 31 I/Os, 16 axis, Conformal Coated

5069-L350ERS2K

Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 5.0MB Standard & 2.5MB Safety Memory, 120 nodes, 31 I/Os, Conformal Coated

5069-L350ERMS2K

Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 5.0MB Standard & 2.5MB Safety Memory, 120 nodes, 31 I/Os, 24 axis, Conformal Coated

5069-L306ERMS3

Compact GuardLogix5380 Safety Controller, SIL3/PLe, 0.6MB Standard & 0.3MB Safety Memory, 16 nodes, 8 I/Os, 2 axis

5069-L310ERMS3

Compact GuardLogix5380 Safety Controller, SIL3/PLe, 1.0MB Standard & 0.5MB Safety Memory, 24 nodes, 8 I/Os, 4 axis

5069-L310ERMS3K

Compact GuardLogix5380 Safety Controller, SIL3/PLe, 1.0MB Standard & 0.5MB Safety Memory, 24 nodes, 8 I/Os, 4 axis

5069-L320ERMS3

Compact GuardLogix5380 Safety Controller, SIL3/PLe, 1.0MB Standard & 0.5MB Safety Memory, 24 nodes, 8 I/Os, 4 axis - Conformally Coated

5069-L320ERMS3

Compact GuardLogix5380 Safety Controller, SIL3/PLe, 2.0MB Standard & 1.0MB Safety Memory, 40 nodes, 16 I/Os, 8 axis

5069-L320ERMS3K

Compact GuardLogix5380 Safety Controller, SIL3/PLe, 2.0MB Standard & 1.0MB Safety Memory, 40 nodes, 16 I/Os, 8 axis - Conformally Coated

5069-L330ERMS3

Compact GuardLogix5380 Safety Controller, SIL3/PLe, 3.0MB Standard & 1.5MB Safety Memory, 60 nodes, 31 I/Os, 16 axis

5069-L330ERMS3K

Compact GuardLogix5380 Safety Controller, SIL3/PLe, 3.0MB Standard & 1.5MB Safety Memory, 60 nodes, 31 I/Os, 16 axis - Conformally Coated

5069-L340ERMS3

Compact GuardLogix5380 Safety Controller, SIL3/PLe, 4.0MB Standard & 2.0MB Safety Memory, 90 nodes, 31 I/Os, 20 axis

5069-L350ERMS3

Compact GuardLogix5380 Safety Controller, SIL3/PLe, 5.0MB Standard & 2.5MB Safety Memory, 120 nodes, 31 I/Os, 24 axis

5069-L350ERMS3K

Compact GuardLogix5380 Safety Controller, SIL3/PLe, 5.0MB Standard & 2.5MB Safety Memory, 120 nodes, 31 I/Os, 24 axis - Conformally Coated

5069-L380ERMS3

Compact GuardLogix5380 Safety Controller, SIL3/PLe, 8.0MB Standard & 4.0MB Safety Memory, 150 nodes, 31 I/Os, 28 axis

5069-L3100ERMS3

Compact GuardLogix5380 Safety Controller, SIL3/PLe, 10.0MB Standard & 5.0MB Safety Memory, 180 nodes, 31 I/Os, 32 axis

5069-L430ERMW

Controller, CompactLogix, 03 MB User Memory, USB Port, 1GB Ethernet port, 60 EtherNet/IP Devices, 4 Character Alpha/Numeric Display, 31 I/Os, 16 axis, Windows 10 IoT, 64GB SSD

5069-L450ERMW

Controller, CompactLogix, 05 MB User Memory, USB Port, 1GB Ethernet port, 120 EtherNet/IP Devices, 4 Character Alpha/Numeric Display, Windows 10 IoT, 31 I/Os, 24 axis, 64GB SSD

5069-L4100ERMW

Controller, CompactLogix, 10 MB User Memory, USB Port,1GB Ethernet port, 180 EtherNet/IP Devices, 4 Character Alpha/Numeric Display, Windows 10 IoT, 31 I/Os, 32 axis, 64GB SSD

5069-L4200ERMW

Controller, CompactLogix, 20 MB User Memory, USB Port, 1GB Ethernet port,250 EtherNet/IP Devices, 4 Character Alpha/Numeric Display, 31 I/Os, 150 axis, Windows 10 IoT, 64GB SSD
