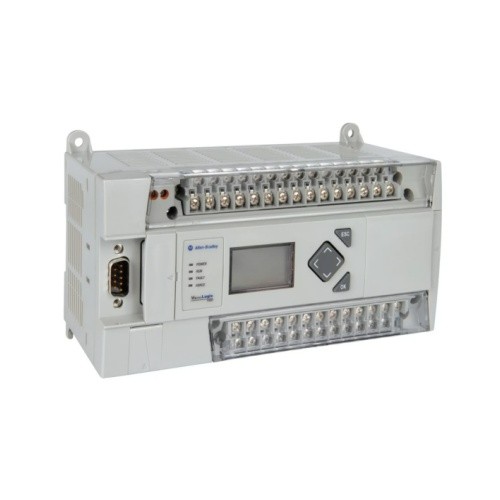

MicroLogix 1400 Programmable Logic Controller Systems

Our 1766 MicroLogix 1400 Programmable Logic Controller Systems build upon critical MicroLogix 1100 features: EtherNet/IP, on-line editing and a built-in LCD panel. These controllers feature a higher I/O count, faster high-speed counter, pulse train output, enhanced network capabilities and backlight on the LCD panel. Controllers without embedded analog I/O points provide 32 digital I/O points, while analog versions offer 32 digital I/O points and 6 analog I/O points. You can expand all versions with up to seven 1762 expansion I/O modules.

Overview

Ethernet port provides Web server capability, email capability and protocol support for DNP3 protocol support
Built-in LCD with backlight lets you view controller and I/O status
Built-in LCD provides simple interface for messages, bit/integer monitoring and manipulation
Expands application capabilities through support for as many as seven 1762 MicroLogix Expansion I/O modules with 256 discrete I/O
As many as six embedded 100 kHz high-speed counters (only on controllers with DC inputs)
Two serial ports with DF1, DH-485, Modbus RTU, DNP3, and ASCII protocol support
10 KB words in user program memory with 10 KB words in user data memory
Up to 128 KB for data logging and 64 KB for recipe
Programmed with RSLogix 500® software

Typical applications include:

Material Handling
Packaging Applications
General Industrial Machinery
Printing
Food and Beverage
Pharmaceutical
Water Wastewater / SCADA
Clutch/Brake control
Position Control - Pick-and-place / Conveyor

Product Selection

Catalog Number	Description
1766-L32AWA	MicroLogix 1400, 20 digital 120V ac inputs, 12 Relay outputs, 110/240V ac power
1766-L32AWAA	MicroLogix 1400, 20 digital 120V ac inputs, 12 Relay outputs, 4 Analog (12 bits) inputs, 2 Analog (12 bits) outputs, 110/240V ac power
1766-L32BWA	MicroLogix 1400, 12 digital fast 24V dc inputs, 8 digital normal 24V dc inputs, 12 relays outputs, 110/240V ac power
1766-L32BWAA	MicroLogix 1400, 12 digital fast 24V dc inputs, 8 digital normal 24V dc inputs, 12 relays outputs, 4 Analog (12 bits) inputs, 2 Analog (12 bits) outputs, 110/240V ac power
1766-L32BXB	MicroLogix 1400, 12 digital fast 24V dc inputs, 8 digital 24V dc inputs, 6 relay outputs, 3 fast 24V dc outputs, 3 normal 24V dc outputs, 24V dc power
1766-L32BXBA	MicroLogix 1400, 12 digital fast 24V dc inputs, 8 digital 24V dc inputs, 6 relay outputs, 3 fast 24V dc outputs, 3 normal 24V dc outputs, 4 Analog (12 bits) inputs, 2 Analog (12 bits) outputs, 24V dc power
1766-MM1	Memory Module for MicroLogix 1400
