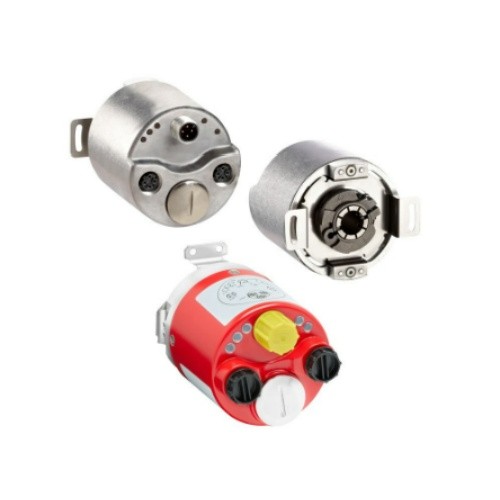

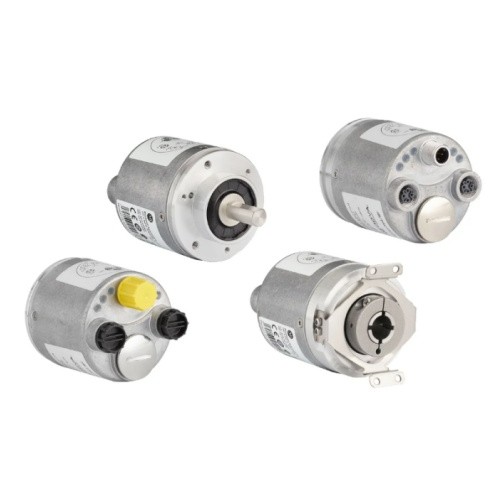

Our EtherNet/IP Absolute Encoders are designed with an embedded EtherNet/IP switch and dual Ethernet ports to support linear networks and Device Level Ring topologies. By providing auxiliary feedback directly through an EtherNet/IP network, these encoders eliminate the need for point-to-point wiring. These encoders are designed for high performance and reliability in harsh industrial environments. Our encoder offerings include models that brings in the encoder as a feedback only axis for machine applications using integrated motion on EtherNet/IP. We also offer models designed for safety applications that require speed, direction, or position monitoring safety functions.
| FEATURE | 842E & 842E-CM INTEGRATED MOTION | 843E ETHERNET/IP | 843ES WITH CIP SAFETY |
|---|---|---|---|
| Resolution | 18 bit x 12 bit (262,144 x 4,096) | 18 bit x 12 bit (262,144 x 4,096) | 18 bit x 12 bit (262,144 x 4,096) for standard connection 15 bit x 12 bit (32,768 x 4,096) for safety connection |
| Supports Endless Shaft Functionality | Yes | Yes | Yes for standard conneciton, No for safety connection |
| Shaft Options | Solid and hollow | Solid and hollow | Solid and hollow |
| RPI | 2 ms and greater | 1 ms and greater | 1 ms and greater |
| EMC Test Criterion | A | A and B | A and B |
| Enclosure Rating | IP67 | IP67 | IP67 |
| Automatic Diagnostics | No | Yes | Yes |
| Velocity/Accel Filtering | No | Yes | Yes |
| Operating Temperature | -30…+85 °C (-22…+185 °F) | -40…+80 °C (-40…+176 °F) | -40…+80 °C (-40…+176 °F) |
| Housing Material | Aluminum | Aluminum, offers nano-coated versions also | Aluminum |
| Communication | Dual Ethernet ports support linear and Device Level Ring topologies | Dual Ethernet ports support linear and Device Level Ring topologies | Dual Ethernet ports support linear and Device Level Ring topologies |
| Safety | N/A | N/A | Provides safety ratings up to and including SIL 3 and PLe, Cat. 3, according to the latest safety standards |
