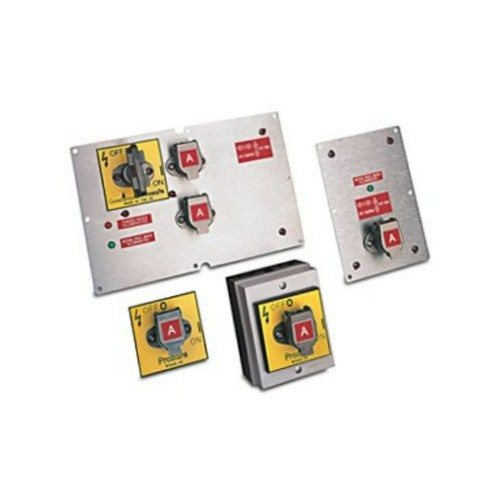

Trapped Key Switch with Electronic Timed-delay

Our 440T Electronic Timed-delay Unit Trapped Key Interlock Switches are used in applications that require an elapsed time to occur before allowing access to a hazardous area. This interlock switch uses a Guardmaster® SI safety relay in combination with a Guardmaster EMD safety relay to execute the timing sequence. Turning a nonremovable key initiates the timer. When the EMD times out, its output energizes an internal solenoid, which then allows the removal of either one or two trapped keys.

EMAIL

Overview

  • Timed-delay output up to 40 minutes

  • Single-key or dual-key

  • 316L stainless steel keys

  • Category 1 stop

  • Replaceable code barrel assembly



Product Selection


Catalog Number                 DescriptionAccessories
440T-MDTUE10AAAAElectronic Timed-Delay Unit - Dual Key, Standard Key Code Labeling, 24V DC, Set 1: 3 N.O. 40 Amp, Set 2: 1 N.O. 20 Amp
440T-MDTUE11AAAAElectronic Timed-Delay Unit - Dual Key, Standard Key Code Labeling, 24V DC, Set 1: 2 N.O. 20 Amp, Set 2: 1 N.C. 20 Amp
440T-MDTUE20AAAAElectronic Timed-Delay Unit - Dual Key, Standard Key Code Labeling, 110V AC Set 1: 3 N.O. 40 Amp, Set 2: 1 N.O. 20 Amp
440T-MDTUE22AAAAElectronic Timed-Delay Unit - Dual Key, Standard Key Code Labeling, 110V AC Set 1: 2 N.O. 20 Amp, Set 2: 1 N.C. 20 Amp
440T-MDTUE30AAAAElectronic Timed-Delay Unit - Dual Key, Standard Key Code Labeling, 230V AC Set 1: 3 N.O. 40 Amp, Set 2: 1 N.O. 20 Amp
440T-MDTUE33AAAAElectronic Timed-Delay Unit - Dual Key, Standard Key Code Labeling, 230V AC Set 1: 2 N.O. 20 Amp, Set 2: 1 N.C. 20 Amp
440T-MDTUS10AAAAElectronic Timed-Delay Unit - Dual Key, Engraved Key Code Labeling, 24V DC, Set 1: 3 N.O. 40 Amp, Set 2: 1 N.O. 20 Amp
440T-MDTUS11AAAAElectronic Timed-Delay Unit - Dual Key, Engraved Key Code Labeling, 24V DC, Set 1: 2 N.O. 20 Amp, Set 2: 1 N.C. 20 Amp
440T-MDTUS20AAAAElectronic Timed-Delay Unit - Dual Key, Engraved Key Code Labeling, 110V AC Set 1: 3 N.O. 40 Amp, Set 2: 1 N.O. 20 Amp
440T-MDTUS22AAAAElectronic Timed-Delay Unit - Dual Key, Engraved Key Code Labeling, 110V AC Set 1: 2 N.O. 20 Amp, Set 2: 1 N.C. 20 Amp
440T-MDTUS30AAAAElectronic Timed-Delay Unit - Dual Key, Engraved Key Code Labeling, 230V AC Set 1: 3 N.O. 40 Amp, Set 2: 1 N.O. 20 Amp
440T-MDTUS33AAAAElectronic Timed-Delay Unit - Dual Key, Engraved Key Code Labeling, 230V AC Set 1: 2 N.O. 20 Amp, Set 2: 1 N.C. 20 Amp
440T-MSTUE10AAElectronic Timed-Delay Unit - Single Key, Standard Key Code Labeling, 24V DC, Set 1: 3 N.O. 40 Amp, Set 2: 1 N.O. 20 Amp
440T-MSTUE11AAElectronic Timed-Delay Unit - Single Key, Standard Key Code Labeling, 24V DC, Set 1: 2 N.O. 20 Amp, Set 2: 1 N.C. 20 Amp
440T-MSTUE20AAElectronic Timed-Delay Unit - Single Key, Standard Key Code Labeling, 110V AC Set 1: 3 N.O. 40 Amp, Set 2: 1 N.O. 20 Amp
440T-MSTUE22AAElectronic Timed-Delay Unit - Single Key, Standard Key Code Labeling, 110V AC Set 1: 2 N.O. 20 Amp, Set 2: 1 N.C. 20 Amp
440T-MSTUE30AAElectronic Timed-Delay Unit - Single Key, Standard Key Code Labeling, 230V AC Set 1: 3 N.O. 40 Amp, Set 2: 1 N.O. 20 Amp
440T-MSTUE33AAElectronic Timed-Delay Unit - Single Key, Standard Key Code Labeling, 230V AC Set 1: 2 N.O. 20 Amp, Set 2: 1 N.C. 20 Amp
440T-MSTUS10AAElectronic Timed-Delay Unit - Single Key, Engraved Key Code Labeling, 24V DC, Set 1: 3 N.O. 40 Amp, Set 2: 1 N.O. 20 Amp
440T-MSTUS11AAElectronic Timed-Delay Unit - Single Key, Engraved Key Code Labeling, 24V DC, Set 1: 2 N.O. 20 Amp, Set 2: 1 N.C. 20 Amp
440T-MSTUS20AAElectronic Timed-Delay Unit - Single Key, Engraved Key Code Labeling, 110V AC Set 1: 3 N.O. 40 Amp, Set 2: 1 N.O. 20 Amp
440T-MSTUS22AAElectronic Timed-Delay Unit - Single Key, Engraved Key Code Labeling, 110V AC Set 1: 2 N.O. 20 Amp, Set 2: 1 N.C. 20 Amp
440T-MSTUS30AAElectronic Timed-Delay Unit - Single Key, Engraved Key Code Labeling, 230V AC Set 1: 3 N.O. 40 Amp, Set 2: 1 N.O. 20 Amp
440T-MSTUS33AAElectronic Timed-Delay Unit - Single Key, Engraved Key Code Labeling, 230V AC Set 1: 2 N.O. 20 Amp, Set 2: 1 N.C. 20 Amp
