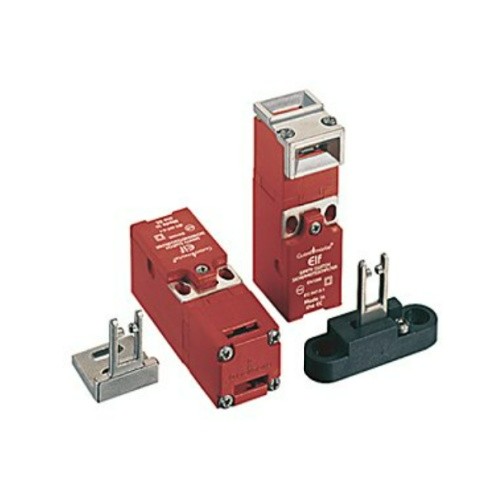

Elf Miniature Tongue Interlock Switches

Our Elf Miniature Tongue Interlock Switches are tongue-or key-operated safety interlock switches that fit at the leading edge of sliding, hinged, or lift-off guards. The unique miniature housing makes the Elf interlock switch one of the smallest of its kind currently available. This switch is ideal for smaller machines such as printers, copiers and domestic machinery which, until now, have been unable to use safety interlocks due to space restrictions.

Overview

Ideal for small, lightweight guards
Miniature housing is only 75 x 25 x 29 mm (2.95 x 0.98 x 1.14 in.)
Contacts: 2 N.C. or 1 N.O. and 1 N.C.
Eight possible actuator entry points, easy to install
Environmental protection: IP67
GD2 style available for difficult applications

Product Selection

Catalog Number	Description	Accessories
440K-E2NNAPS	Tongue Switch - Elf: Contacts(Safety and Aux): 2 Normally Closed, BBM Preference: , Actuator: GD2 Metal Align. Guide w/Semi-Flex Actuator, Model Type: , Conduit Entry: 5-Pin Micro (M12)
440K-E2NNFPS	Tongue Switch - Elf: Contacts(Safety and Aux): 2 Normally Closed, BBM Preference: , Actuator: Flat, Model Type: , Conduit Entry: 5-Pin Micro (M12)
440K-E33014	Tongue Switch - Elf: Contacts(Safety and Aux): 1 Normally Closed, 1 Normally Open, BBM Preference: Break Before Make, Actuator: No Actuator, Model Type: , Conduit Entry: M16 Conduit
440K-E33024	Tongue Switch - Elf: Contacts(Safety and Aux): 2 Normally Closed, BBM Preference: , Actuator: 90°, Model Type: , Conduit Entry: 4 Pin M12 Micro QD
440K-E33025	Tongue Switch - Elf: Contacts(Safety and Aux): 1 Normally Closed, 1 Normally Open, BBM Preference: Break Before Make, Actuator: 90°, Model Type: , Conduit Entry: 4 Pin M12 Micro QD
440K-E33029	Tongue Switch - Elf: Contacts(Safety and Aux): 1 Normally Closed, 1 Normally Open, BBM Preference: Break Before Make, Actuator: Flat, Model Type: , Conduit Entry: M16 Conduit 1/2in Adaptor
440K-E33030	Tongue Switch - Elf: Contacts(Safety and Aux): 1 Normally Closed, 1 Normally Open, BBM Preference: Break Before Make, Actuator: 90°, Model Type: , Conduit Entry: M16 Conduit 1/2in Adaptor
440K-E33031	Tongue Switch - Elf: Contacts(Safety and Aux): 1 Normally Closed, 1 Normally Open, BBM Preference: Break Before Make, Actuator: GD2 Metal Align. Guide w/Semi-Flex Actuator, Model Type: , Conduit Entry: M16 Conduit 1/2in Adaptor
440K-E33034	Tongue Switch - Elf: Contacts(Safety and Aux): 1 Normally Closed, 1 Normally Open, BBM Preference: Break Before Make, Actuator: GD2 Metal Align. Guide w/Semi-Flex Actuator, Model Type: , Conduit Entry: M16 Conduit
440K-E33036	Tongue Switch - Elf: Contacts(Safety and Aux): 1 Normally Closed, 1 Normally Open, BBM Preference: Break Before Make, Actuator: Flat, Model Type: , Conduit Entry: M16 Conduit
440K-E33037	Tongue Switch - Elf: Contacts(Safety and Aux): 2 Normally Closed, BBM Preference: , Actuator: Flat, Model Type: , Conduit Entry: M16 Conduit 1/2in Adaptor
440K-E33040	Tongue Switch - Elf: Contacts(Safety and Aux): 1 Normally Closed, 1 Normally Open, BBM Preference: Break Before Make, Actuator: 90°, Model Type: , Conduit Entry: M16 Conduit
440K-E33041	Tongue Switch - Elf: Contacts(Safety and Aux): 2 Normally Closed, BBM Preference: , Actuator: 90°, Model Type: , Conduit Entry: M16 Conduit
440K-E33045	Tongue Switch - Elf: Contacts(Safety and Aux): 2 Normally Closed, BBM Preference: , Actuator: 90°, Model Type: , Conduit Entry: M16 Conduit 1/2in Adaptor
440K-E33046	Tongue Switch - Elf: Contacts(Safety and Aux): 2 Normally Closed, BBM Preference: , Actuator: GD2 Metal Align. Guide w/Semi-Flex Actuator, Model Type: , Conduit Entry: M16 Conduit 1/2in Adaptor
440K-E33047	Tongue Switch - Elf: Contacts(Safety and Aux): 2 Normally Closed, BBM Preference: , Actuator: No Actuator, Model Type: , Conduit Entry: M16 Conduit
440K-E33053	Tongue Switch - Elf: Contacts(Safety and Aux): 1 Normally Closed, 1 Normally Open, BBM Preference: Break Before Make, Actuator: No Actuator, Model Type: , Conduit Entry: 1/2in NPT Conduit
440K-E33074	Tongue Switch - Elf: Contacts(Safety and Aux): 1 Normally Closed, 1 Normally Open, BBM Preference: Break Before Make, Actuator: Flat, Model Type: , Conduit Entry: 4 Pin M12 Micro QD
440K-E33075	Tongue Switch - Elf: Contacts(Safety and Aux): 1 Normally Closed, 1 Normally Open, BBM Preference: Break Before Make, Actuator: GD2 Metal Align. Guide w/Semi-Flex Actuator, Model Type: , Conduit Entry: 4 Pin M12 Micro QD
440K-E33077	Tongue Switch - Elf: Contacts(Safety and Aux): 2 Normally Closed, BBM Preference: , Actuator: Flat, Model Type: , Conduit Entry: 4 Pin M12 Micro QD
440K-E33078	Tongue Switch - Elf: Contacts(Safety and Aux): 2 Normally Closed, BBM Preference: , Actuator: GD2 Metal Align. Guide w/Semi-Flex Actuator, Model Type: , Conduit Entry: 4 Pin M12 Micro QD
440K-E33079	Tongue Switch - Elf: Contacts(Safety and Aux): 2 Normally Closed, BBM Preference: , Actuator: No Actuator, Model Type: , Conduit Entry: 4 Pin M12 Micro QD
440K-E33080	Tongue Switch - Elf: Contacts(Safety and Aux): 2 Normally Closed, BBM Preference: , Actuator: Flat, Model Type: , Conduit Entry: M16
