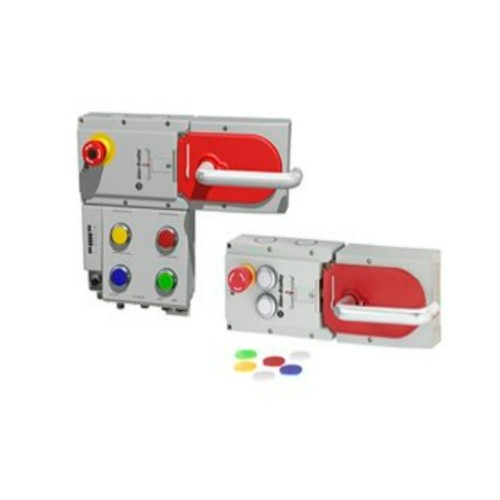

Our Guardmaster 442G Multifunctional Access Box is a unique combination of guard locking and access control. This integrated safeguarding solution is ideal for full body applications where guard doors require a higher holding force, a greater tolerance to guard door misalignment and a means for exiting the safeguarded area in an emergency. A choice of operator controls and other options offers flexibility to meet a variety of applications.
Includes a high coded RFID bolt actuator to achieve the highest level of tamper resistance in accordance with ISO 14119
Offers both Power to Release and Power to Lock models for personnel safety or the protection of machine production
Offers the ability to be wired in a series and maintain a PLe Cat 4 rating for interlocking, guard lock monitoring and control of guard locking
Includes a CIP Safety over EtherNet/IP version, which enables easy integration in a networked automation control system using Studio 5000 Logix Designer® environment
The Guardmaster 442G Multifunctional Access Box supports applications that require the following:
Integrated guard locking and access control safeguarding solutions
Full body access into safeguarded areas such as, die press, metal working, packaging, printing press, robotic automated assembly, stamping, and web
Superior strength of a bolt style actuator
Product Selection
| Catalog Number | Description |
| 440T-MMRSE10AAAA | Multi Key Rotary Switch - Panel Mounted, Standard Key Code Labeling, 4 N.O Contacts, 20 Amp Current |
| 440T-MMRSE11AAAA | Multi Key Rotary Switch - Panel Mounted, Standard Key Code Labeling, 2 N.O. & 2 N.C. Contacts, 20 Amp Current |
| 440T-MMRSE12AAAA | Multi Key Rotary Switch - Panel Mounted, Standard Key Code Labeling, 4 N.O. Contacts, 32 Amp Current |
| 440T-MMRSE13AAAA | Multi Key Rotary Switch - Panel Mounted, Standard Key Code Labeling, 4 N.O. Contacts, 63 Amp Current |
| 440T-MMRSE20AAAAAA | Multi Key Rotary Switch - Panel Mounted, Standard Key Code Labeling, 4 N.O. Contacts, 40 Amp Current |
| 440T-MMRSE21AAAAAA | Multi Key Rotary Switch - Panel Mounted, Standard Key Code Labeling, 2 N.O. & 2 N.C. Contacts, 20 Amp Current |
| 440T-MMRSE22AAAAAA | Multi Key Rotary Switch - Panel Mounted, Standard Key Code Labeling, 4 N.O. Contacts, 32 Amp Current |
| 440T-MMRSE23AAAAAA | Multi Key Rotary Switch - Panel Mounted, Standard Key Code Labeling, 4 N.O. Contacts, 63 Amp Current |
| 440T-MMRSE30AAAAAAAA | Multi Key Rotary Switch - Panel Mounted, Standard Key Code Labeling, 4 N.O Contacts, 20 Amp Current |
| 440T-MMRSE31AAAAAAAA | Multi Key Rotary Switch - Panel Mounted, Standard Key Code Labeling, 2 N.O. & 2 N.C. Contacts, 20 Amp Current |
| 440T-MMRSE32AAAAAAAA | Multi Key Rotary Switch - Panel Mounted, Standard Key Code Labeling, 4 N.O. Contacts, 32 Amp Current |
| 440T-MMRSE33AAAAAAAA | Multi Key Rotary Switch - Panel Mounted, Standard Key Code Labeling, 4 N.O. Contacts, 63 Amp Current |
| 440T-MMRSS10AAAA | Multi Key Rotary Switch - Panel Mounted, Engraved Key Code Labeling, 4 N.O Contacts, 20 Amp Current |
| 440T-MMRSS11AAAA | Multi Key Rotary Switch - Panel Mounted, Engraved Key Code Labeling, 2 N.O. & 2 N.C. Contacts, 20 Amp Current |
| 440T-MMRSS12AAAA | Multi Key Rotary Switch - Panel Mounted, Engraved Key Code Labeling, 4 N.O. Contacts, 32 Amp Current |
| 440T-MMRSS13AAAA | Multi Key Rotary Switch - Panel Mounted, Engraved Key Code Labeling, 4 N.O. Contacts, 63 Amp Current |
| 440T-MMRSS20AAAAAA | Multi Key Rotary Switch - Panel Mounted, Engraved Key Code Labeling, 4 N.O. Contacts, 40 Amp Current |
| 440T-MMRSS21AAAAAA | Multi Key Rotary Switch - Panel Mounted, Engraved Key Code Labeling, 2 N.O. & 2 N.C. Contacts, 20 Amp Current |
| 440T-MMRSS22AAAAAA | Multi Key Rotary Switch - Panel Mounted, Engraved Key Code Labeling, 4 N.O. Contacts, 32 Amp Current |
| 440T-MMRSS23AAAAAA | Multi Key Rotary Switch - Panel Mounted, Engraved Key Code Labeling, 4 N.O. Contacts, 63 Amp Current |
| 440T-MMRSS30AAAAAAAA | Multi Key Rotary Switch - Panel Mounted, Engraved Key Code Labeling, 4 N.O Contacts, 20 Amp Current |
| 440T-MMRSS31AAAAAAAA | Multi Key Rotary Switch - Panel Mounted, Engraved Key Code Labeling, 2 N.O. & 2 N.C. Contacts, 20 Amp Current |
| 440T-MMRSS32AAAAAAAA | Multi Key Rotary Switch - Panel Mounted, Engraved Key Code Labeling, 4 N.O. Contacts, 32 Amp Current |
| 440T-MMRSS33AAAAAAAA | Multi Key Rotary Switch - Panel Mounted, Engraved Key Code Labeling, 4 N.O. Contacts, 63 Amp Current |
| 440T-MMRXE10AABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Standard Key Code Labeling, 4 N.O Contacts, 20 Amp Current |
| 440T-MMRXE11AABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Standard Key Code Labeling, 2 N.O. & 2 N.C. Contacts, 20 Amp Current |
| 440T-MMRXE12AABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Standard Key Code Labeling, 4 N.O. Contacts, 32 Amp Current |
| 440T-MMRXE13AABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Standard Key Code Labeling, 4 N.O. Contacts, 63 Amp Current |
| 440T-MMRXE20AABABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Standard Key Code Labeling, 4 N.O. Contacts, 40 Amp Current |
| 440T-MMRXE21AABABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Standard Key Code Labeling, 2 N.O. & 2 N.C. Contacts, 20 Amp Current |
| 440T-MMRXE22AABABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Standard Key Code Labeling, 4 N.O. Contacts, 32 Amp Current |
| 440T-MMRXE23AABABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Standard Key Code Labeling, 4 N.O. Contacts, 63 Amp Current |
| 440T-MMRXE30AABABABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Standard Key Code Labeling, 4 N.O Contacts, 20 Amp Current |
| 440T-MMRXE31AABABABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Standard Key Code Labeling, 2 N.O. & 2 N.C. Contacts, 20 Amp Current |
| 440T-MMRXE32AABABABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Standard Key Code Labeling, 4 N.O. Contacts, 32 Amp Current |
| 440T-MMRXE33AABABABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Standard Key Code Labeling, 4 N.O. Contacts, 63 Amp Current |
| 440T-MMRXS10AABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Engraved Key Code Labeling, 4 N.O Contacts, 20 Amp Current |
| 440T-MMRXS11AABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Engraved Key Code Labeling, 2 N.O. & 2 N.C. Contacts, 20 Amp Current |
| 440T-MMRXS12AABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Engraved Key Code Labeling, 4 N.O. Contacts, 32 Amp Current |
| 440T-MMRXS13AABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Engraved Key Code Labeling, 4 N.O. Contacts, 63 Amp Current |
| 440T-MMRXS20AABABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Engraved Key Code Labeling, 4 N.O. Contacts, 40 Amp Current |
| 440T-MMRXS21AABABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Engraved Key Code Labeling, 2 N.O. & 2 N.C. Contacts, 20 Amp Current |
| 440T-MMRXS22AABABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Engraved Key Code Labeling, 4 N.O. Contacts, 32 Amp Current |
| 440T-MMRXS23AABABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Engraved Key Code Labeling, 4 N.O. Contacts, 63 Amp Current |
| 440T-MMRXS30AABABABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Engraved Key Code Labeling, 4 N.O Contacts, 20 Amp Current |
| 440T-MMRXS31AABABABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Engraved Key Code Labeling, 2 N.O. & 2 N.C. Contacts, 20 Amp Current |
| 440T-MMRXS32AABABABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Engraved Key Code Labeling, 4 N.O. Contacts, 32 Amp Current |
| 440T-MMRXS33AABABABA | Multi Key Rotary Exchange Isolator - Panel Mounted, Engraved Key Code Labeling, 4 N.O. Contacts, 63 Amp Current |
| 440T-MRKSE10AA | Single Key Rotary Switch - Enclosure Mounted, Standard Key Code Labeling, 4 N.O Contacts, 20 Amp Current |
| 440T-MRKSE11AA | Single Key Rotary Switch - Enclosure Mounted, Standard Key Code Labeling, 2 N.O. & 2 N.C. Contacts, 20 Amp Current |
| 440T-MRKSE12AA | Single Key Rotary Switch - Enclosure Mounted, Standard Key Code Labeling, 4 N.O. Contacts, 32 Amp Current |
| 440T-MRKSE13AA | Single Key Rotary Switch - Enclosure Mounted, Standard Key Code Labeling, 4 N.O. Contacts, 63 Amp Current |
