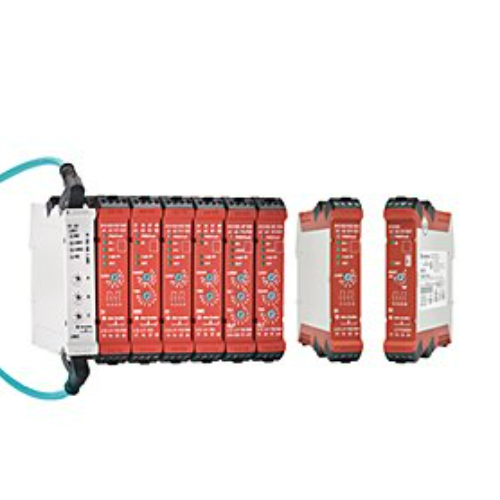

Guardmaster Safety Relays

Our Guardmaster single-function safety relays are designed to meet functional safety standards, such as ISO 13849-1 or IEC 62061, and they offer key functions to simplify installation and system complexity. In addition, information gathered from the GSR intelligent safety relays via the optional EtherNet/IP Interface helps minimize unplanned downtime, increase efficiencies, and enable The Connected Enterprise. The Guardmaster Dual GuardLink Safety Relay further extends this capability to even share diagnostics and status information of safety switches and safety sensors connected in series via GuardLink.

Overview

Offers a broad range of safety functions
Provides versatility through simple logic, reset and timing configurations
Includes single wire safety relay connection which allows for ease of installation and system flexibility
Terminals are grouped together by power inputs and outputs for clear connection
Offers compact solution which saves energy and space on DIN rail
Provides consistent terminal layouts and configuration allow simplified installation
Offers an optional Guardmaster EtherNet/IP Network Interface (440R-ENETR) that allows Guardmaster Safety Relays to communicate on an EtherNet/IP network
Includes the Guardmaster Dual GuardLink safety relay, which provides visibility of system status down to the individual guard doors and E-stops when used with GuardLink-enabled smart safety devices

Product Selection

440R Guardmaster Safety Relays and Expansion Units

Catalog Number	Description
440R-GL2S2T	Guardmaster Guard Locking safety relay with Time Delay (GLT), 1 Dual Channel Input (time delayed outputs - GLT), 1 N.O., PNP, 50mA, non-safety Immediate Auxiliary Outputs
440R-D22R2	Guardmaster Dual Input Safety Relay (DI), 2 Dual Channel Universal Inputs, 1 N.C. Solid State Immediate Auxiliary Outputs
440R-D22S2	Guardmaster Dual Input SS Output Safety Relay (DIS), 2 Dual Channel Universal Inputs, 1 N.C. Solid State Immediate Auxiliary Outputs
440R-EM4R2	Guardmaster Expansion Module Safety Relay (EM), Expansion Module (Single Wire Safe is only input), 1 N.C. Solid State Immediate Auxiliary Outputs
440R-EM4R2D	Guardmaster Expansion Module Delayed Outputs Safety Relay (EMD), Expansion Module (Single Wire Safe is only input),
440R-GL2S2P	Guardmaster Guardlocking Proximity Inputs Safety Relay (GLP), 1 Dual Channel Input, 2 PNP Proxes, 1 N.C. Solid State Immediate Auxiliary Outputs
440R-S12R2	Guardmaster Single Input Safety Relay (SI), 1 Dual Channel Universal Input, 1 N.C. Solid State Immediate Auxiliary Outputs
440R-S13R2	Guardmaster Compatibility Input Safety Relay (CI), 1 Dual Channel Universal Input, 1 N.C. Immediate Auxiliary Outputs

440R Guardmaster Safety Relay EtherNet/IP Gateway Module

Catalog Number	Description
440R-ENETR	GSR Ethernet Interface, 2-Port, Twisted Pair, 24.0V DC

GuardLink System

Catalog Number	Description
898D-418U-DM2	GuardLink Terminator
440R-DG2R2T	Guardmaster Safety Relay DG: Dual GuardLink, 2.N.O, Instantaneous and Time
440S-PF5D	5 Pin GuardLink Passive Tap (for use with GuardLink Embedded Switches)
440S-PF5D4	GuardLink Passive Power Tap
440S-SF5D	5 Pin OSSD (Output Signal Switching Device) GuardLink Enabled Tap
440S-SF8D	8 Pin OSSD (Output Signal Switching Device) GuardLink Enabled Tap - Power to Release (PTR)
440S-MF5D	5 Pin EMSS (Electromechanical Safety Switch) GuardLink Enabled Tap
440S-MF8D	8 Pin EMSS (Electromechanical Safety Switch) GuardLink Enabled Tap - Power to Release (PTR)
440S-MLF8D	8 Pin EMSS (Electromechanical Safety Switch) GuardLink Enabled Tap - Power to Lock (PTL)
440S-SLF8D	8 Pin OSSD (Output Signal Switching Device) GuardLink Enabled Tap - Power to Lock (PTL)
440S-GLTAPBRK1	GuardLink Enabled Tap Mounting Bracket - QTY 1
440S-GLTAPBRK5	GuardLink Enabled Tap Mounting Bracket - QTY 5
898D-41KU-DM2	GuardLink Shorting Plug for Passive and Passive Power Taps
