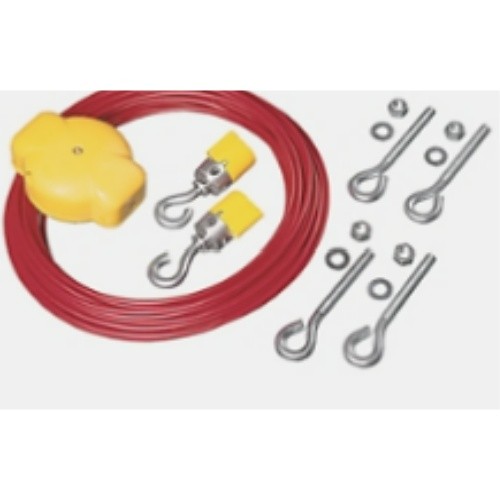

Lifeline Rope Tensioner System

Our 440E Lifeline Rope Tensioner System (LRTS) is a unique cable (rope) tensioning system which enables quicker installation of cable actuated systems. The LRTS can also be used for applications other than cable actuated emergency stop systems.

EMAIL

Overview

  • Unique cable grip system

  • Can be installed and commissioned in approximately three minutes

  • Ease of installation, no specialty tools required

  • Up to 300 mm (11.8 in.) of cable adjustment

  • Cable tidy incorporated into cable grips


Product Selection

<td role="gridcell" style="padding: 6px; border-top-width

Catalog NumberDescriptionAccessories
440E-L13228LRS4 75M 2NC 1N0 M20 W/O ESTOP
440A-A17101Lifeline Inside Corner Pulley
440A-A17102Lifeline Outside Corner Pulley
440A-A17122Indicator, 1/2in NPT Conduit Pilot Light-Amber Lens Bayonet Style Insert. Use LED Bulb (Sold Separately)
440A-A17123Indicator, 1/2in NPT Conduit Pilot Light-Red Lens Bayonet Style Insert. Use LED Bulb (Sold Separately)
440A-A17124Indicator, M20 Conduit Pilot Light-Amber Lens Bayonet Style Insert. Use LED Bulb (Sold Separately)
440A-A17125Indicator, M20 Conduit Pilot Light-Red Lens Bayonet Style Insert. Use LED Bulb (Sold Separately)
440E-A13054Lifeline 4 Replacement Cover with blue reset knob and E-Stop button
440E-A13078Lifeline Tensioner Spring
440E-A13079Lifeline Rope Tensioning System Installation Kit 5m (16.4 ft)
440E-A13080Lifeline Rope Tensioning System Installation Kit 10m (32.8 ft)
440E-A13081Lifeline Rope Tensioning System Installation Kit 15m (49.2 ft)
440E-A13082Lifeline Rope Tensioning System Installation Kit 20m (65.6 ft)
440E-A13083Lifeline Rope Tensioning System Installation Kit 30m (98.4 ft)
440E-A13084Lifeline Rope Tensioning System Installation Kit 50m (164 ft)
440E-A13085Lifeline Rope Tensioning System Installation Kit 75m (246 ft)
440E-A13194Lifeline Stainless Steel Installation Kit 5m (16.4 ft) - Polypropylene
440E-A13195Lifeline Stainless Steel Installation Kit 10m (32.8 ft) - Polypropylene
440E-A13196Lifeline Stainless Steel Installation Kit 15m (49.2 ft) - Polypropylene
440E-A13197Lifeline Stainless Steel Installation Kit 20m (65.6 ft) - Polypropylene
440E-A13198Lifeline Stainless Steel Installation Kit 30m (98.4 ft) - Polypropylene
440E-A13199Lifeline Stainless Steel Installation Kit 50m (164 ft) - Polypropylene
440E-A13200Lifeline Stainless Steel Installation Kit 75m (246 ft) - UV Resistant Polypropylene
440E-A13201Lifeline 4 Stainless SteelEye bolt, M8 x 1.25 Thread Size, 58mm ( 2.28in)nThreaded Length, 12mm (0.47in) Dia. Eye, 75mm (2.95in) Overall Length Stainless Steel eyebolt style"
440E-A13202Stainless Steel Tensioner spring 19mm (0.75in) Diameter, 210mm (8.27in) Overall Length
440E-A13203Lifeline 4 Stainless Steel Replacement Cover with blue reset knob and E-Stop button
440E-A13205Stainless Steel inside corner pulley
440E-A13206Stainless Steel outside corner pulley
440E-A13220Lifeline Stainless Steel Installation Kit 5m (16.4 ft) - UV Resistant Polypropylene
440E-A13221Lifeline Stainless Steel Installation Kit 10m (32.8 ft) - UV Resistant Polypropylene
440E-A13222Lifeline Stainless Steel Installation Kit 15m (49.2 ft) - UV Resistant Polypropylene
440E-A13223Lifeline Stainless Steel Installation Kit 20m (65.6 ft) - UV Resistant Polypropylene
440E-A13224Lifeline Stainless Steel Installation Kit 30m (98.4 ft) UV Resistant Polypropylene
440E-A13225Lifeline Stainless Steel Installation Kit 50m (164 ft) - UV Resistant Polypropylene
440E-A13226Lifeline Stainless Steel Installation Kit 75m (246 ft) - UV Resistant Polypropylene
440E-A13227Stainless steel turn buckle kit (no cable)
440E-A14739100m UV resistant polypropylene covered steel cable
440E-A14740300m UV resistant polypropylene covered steel cable
440E-A17003Lifeline Eye Bolt M8 x 1.25 Thread Size, 58mm (2.28in) Threaded Length, 12mm (0.47in) Dia. Eye, 75mm (2.95in) Overall Length Mild Steel eye bolt style
440E-A1702615m Polypropylene covered steel cable
440E-A1702730m Polypropylene covered steel cable
440E-A17028100m Polypropylene covered steel cable
440E-A17032500m Polypropylene covered steel cable
440E-A17095300m Polypropylene covered steel cable
440E-A17105Tensioner and Allen wrench only
440E-A1710610 packs of 2 grippers for a total of 20 individual grippers
440E-A17107Gripper 2 pack
440E-A17112Tensioner, 2 Grippers and Allen wrench
440E-A17115Lifeline 4 Replacement Cover with blue reset knob, without E-Stop
440E-A17129125m Polypropylene covered steel cable
440E-A17130Lifeline 4 Dual Head Mounting Bracket
440E-A171402 Tensioners, 2 Grippers and Allen wrench
