Mat Controllers

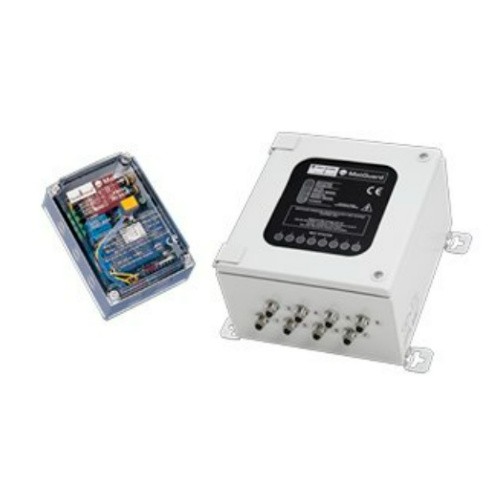

Our MatGuard Control Unit monitors all of the mats that are connected together to form a safeguarded zone. The safeguarded zone can be up to a total of 100 m2 and made from any number of mats. The controller interfaces with the control circuit of the machine and includes two safety relays to help provide control redundancy.

Overview

Monitors multiple safety mats connected together to form a safeguarded zone up to a total of 100 m2
Offers selectable voltage supply
Includes auto/manual reset
Includes four-wire system to detect opens and shorts
Provides third-party approval — cULus Listed, TÜV Certified

Product Selection

440F and 440R Controll

Catalog Number	Description	Accessories
440F-C4000P	MatGuard Control Unit, IP65 Polycarbonate Enclosure, 230/110V AC, 24V AC/DC
440R-P23071	Logic Interface, Muting Module, 24V DC, 2 N.O. Safety, 1 N.C. Aux, 45mm Case

440F Mat Manager

Catalog Number	Description	Accessories
440F-C28011	440F Mat Manager, Controller, 24V DC Power, M12 Micro QD 4-Pin Mat Connector, 2 N.O. Safety Outputs , 1 N.C. Aux. Output, Brad Harrison 12-Pin Power Connector , No Reset Button
440F-C28012	440F Mat Manager, Controller, 115/230V AC Power, M12 Micro QD 4-Pin Mat Connector, 2 N.O. Safety Outputs , 1 N.C. Aux. Output, Brad Harrison 12-Pin Power Connector , No Reset Button
440F-C28013	440F Mat Manager, Controller, 24V DC and 115/230V AC Power, M12 Micro QD 4-Pin Mat Connector, 2 N.O. Safety Outputs , 1 N.C. Aux. Output, Terminal Strip Power Connector , Reset Button Included
440F-C28023	440F Mat Manager, Controller, 115/230V AC Power, M12 Micro QD 4-Pin Mat Connector, 6 N.O. Safety Outputs , 1 N.C. Aux. Output, Harting 24-Pin Power Connector , No Reset Button
440F-C28024	440F Mat Manager, Controller, 24V DC Power, Cord Grips Mat Connector, 2 N.O. Safety Outputs , 1 N.C. Aux. Output, M12 QD 8-Pin Power Connector , Reset Button Included
440F-C28025	440F Mat Manager, Controller, 24V DC Power, Cord Grips Mat Connector, 2 N.O. Safety Outputs , 1 N.C. Aux. Output, M12 QD 8-Pin Power Connector , No Reset Button
440F-C28026	440F Mat Manager, Controller, 24V DC Power, M12 Micro QD 4-Pin Mat Connector, 2 N.O. Safety Outputs , 1 N.C. Aux. Output, M23 QD 12-Pin Power Connector , No Reset Button
