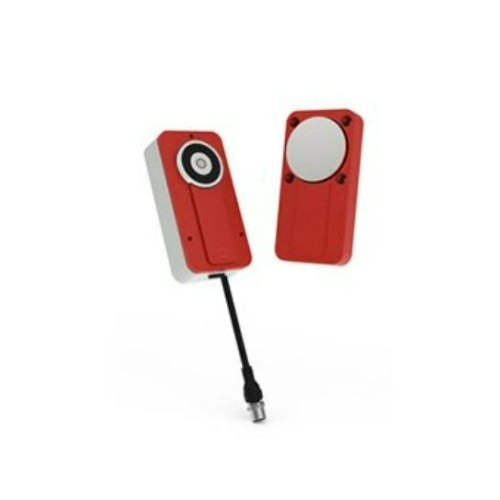

440G-EZ Electromagnetic Interlocking Switch

Our 440G-EZ Interlocking switch is designed to enhance machine safety as well as reliably help protect a working process from unplanned downtime, which will help improve productivity and increase efficiency. This safety switch combines a Power to Lock (PTL) magnetic locking function with a 500 N holding force and generous 5 mm tolerance to misalignment.

Overview

Provide process and machine protection per ISO EN 14119
Includes non-contact guard locking device with a Power to Lock (PTL) locking function
Offers PLe, Cat 4, SIL 3 safety ratings
Offers switches that can be connected in series
Provides 500 N holding force and 5 mm alignment tolerance
Includes IP67 enclosure: Anodized aluminum sensor housing; Fiberglass/PVC actuator housing
Offers 5-pin and 8-pin M12 Micro QD connection options

Product Selection

Catalog Number	Description	Accessories
440G-EZS21STL05J	Guard Locking Switch - 440G-EZ: Power to Lock, Solenoid Voltage: N/A, Solenoid Contacts: None, Contacts(Safety and Aux): 2 x PNP, (0.2 max.) - Door Position (Safety and Aux both provide the door position), Actuator: Magnetic Actuator,500N Holding Force, Conduit Entry: 6-in. (150mm) Pigtail with M12 male 5-Pin QD
440G-EZS21STL05H	Guard Locking Switch - 440G-EZ: Power to Lock, Solenoid Voltage: N/A, Solenoid Contacts: None, Contacts(Safety and Aux): 2 x PNP, (0.2 max.) - Door Position (Safety and Aux both provide the door position), Actuator: Magnetic Actuator,500N Holding Force, Conduit Entry: 6-in. (150mm) Pigtail with M12 male 8-Pin QD
