ControlLogix 5580 Controllers

A modern control system is more than its name implies. It delivers the fast system performance, high capacity and optimized productivity that you need from a control system today.

Our5580 family of controllers use the Studio 5000® design environment as the standard framework that optimizes productivity, reducing time to commission. This framework manages Integrated Motion over EtherNet/IP for high-speed motion applications and SIL2/PLd and SIL3/PLe safety solutions. It can also help you create more competitive operations with:
Common plant-wide control

5580 controllers provide multi-discipline control for discrete, motion, process and safety applications.

A simplified architecture

Our Logix offerings work together in what we call our Integrated Architecture offering. It helps you keep costs down and reduce system complexity.

Enhanced security
The 5580 controller incorporates security mechanisms like centralized authentication and access control to help keep your systems secure. We have also received ISO 27001 certification to help protect intellectual property – both ours and yours. And our vulnerability-management process aligns to IEC 29147 and 30111.

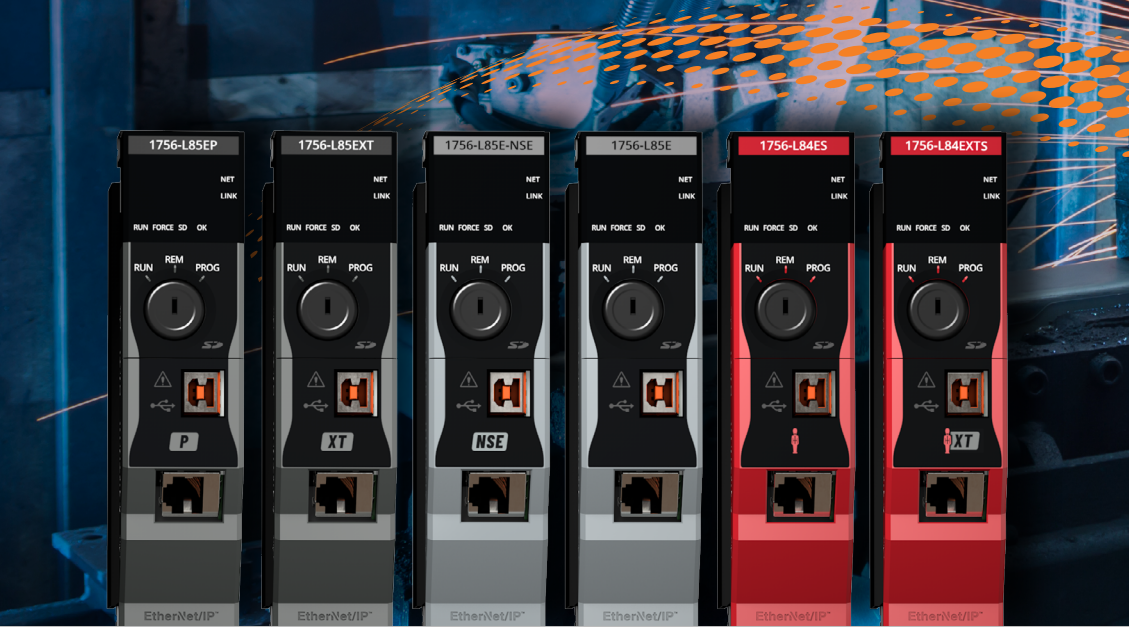

The 5580 portfolio expansion is enabled through the Studio 5000 Logix Designer version 33 software release, and it

showcases our commitment to meet customer performance needs and industry applications by introducing the 5580

controller redundant capability and the following new controllers: process, extreme temperature, and no stored energy.

Key features and benefits:

Redundant Capability

Enables benefits of a 5580 controller architecture

Access to next generation I/O

Provides the basis for our Process controllers

Enhanced productivity features such as onboard display, 2GB Secure Digital (SD) card

One firmware for all solutions, standard and redundant

Never experience a memory penalty for enabling redundancy

Process Controller

For industries such as Food & Beverage, Oil & Gas, Chemical, Plastics, Life Sciences, Metals & Mining

Incorporates the functionality of standard controller including motion and conformal coating

Tight integration with PlantPAx 5.0 system reduces the need to import Add-On Instruction

Subscribe and receive diagnostic information through FactoryTalk View Site Edition without additional programming

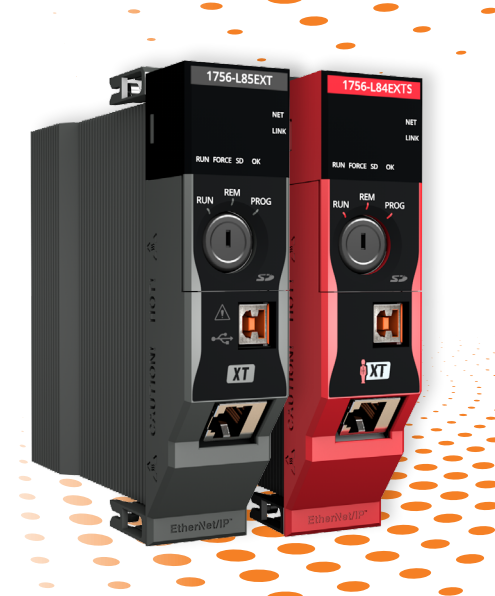

Extreme Temperature Controller

Operation from -25…+ 70 °C (-4…+158 °F)

Convection cooled design

Maintains same product certifications as the standard product

Tested to ANSI/ISA-S71.04-1985; Class G3 standards

No Stored Energy controller

For use in hazardous zone applications such as underground mining and refineries requiring energy discharge to less than 200uJoules

Catalog Number	Description
1756-L8XTSP	GuardLogix 5580 Harsh Environment Safety Partner Controller
1756-L81E	5580 Controller with 3 MB User Memory, USB Port, 1 gigabit (Gb) Ethernet port, 100 EtherNet/IP Devices, 4 Character Alpha/Numeric Display.
1756-L81EP	5580E Process Controller with 3 MB User Memory, USB Port, 1 gigabit (Gb) Ethernet port, 100 EtherNet/IP Devices, 4 Character Alpha/Numeric Display.
1756-L81EP	5580E Process Controller with 3 MB User Memory, USB Port, 1 gigabit (Gb) Ethernet port, 100 EtherNet/IP Devices, 4 Character Alpha/Numeric Display.
1756-L81EK	5580 Controller with 3 MB User Memory, USB Port, 1GB Ethernet port, 60 EtherNet/IP Devices, 4 Character Alpha/Numeric Display - Conformally Coated
1756-L81ES	5580, Safety Controller with 3MB Standard Memory & 1.5MB Safety Memory, USB Port, 1 gigabit (Gb) embedded Ethernet port, 100 EtherNet/IP Devices, 4 Character Alpha/Numeric Display
1756-L81ESK	5580, Safety Controller with 3MB Standard Memory & 1.5MB Safety Memory, USB Port, 1 gigabit (Gb) embedded Ethernet port, 100 EtherNet/IP Devices, 4 Character Alpha/Numeric Display - Conformaly Coated
1756-L81EXTS	5580, Harsh Environment Safety Controller with 3MB Standard Memory & 1.5MB Safety Memory, USB Port, 1 gigabit (Gb) embedded Ethernet port, 100 EtherNet/IP Devices, 4 Character Alpha/Numeric Display
1756-L81E-NSE	5580, No Stored Energy (NSE) Controller with 3 MB User Memory, 100 EtherNet/IP Devices, Conformally Coated
1756-L82E	5580 Controller with 5 MB User Memory, USB Port, 1 gigabit (Gb) Ethernet port, 175 EtherNet/IP Devices, 4 Character Alpha/Numeric Display.
1756-L82EK	5580 Controller with 5 MB User Memory,USB Port,1GB Ethernet port, 80 EtherNet/IP Devices,4 Character Alpha/Numeric Display - Conformally Coated
1756-L82ESK	5580, Safety Controller with 5MB Standard Memory & 2.5MB Safety Memory, USB Port, 1 gigabit (Gb) embedded Ethernet port, 175 EtherNet/IP Devices, 4 Character Alpha/Numeric Display - Conformaly Coated
1756-L82ESK
1756-L82EXTS	5580, Harsh Environment Safety Controller with 5MB Standard Memory & 2.5MB Safety Memory, USB Port, 1 gigabit (Gb) embedded Ethernet port, 175 EtherNet/IP Devices, 4 Character Alpha/Numeric Display
1756-L82ES	5580, Safety Controller with 5MB Standard Memory & 2.5MB Safety Memory, USB Port, 1 gigabit (Gb) embedded Ethernet port, 175 EtherNet/IP Devices, 4 Character Alpha/Numeric Display
1756-L82E-NSE	5580, No Stored Energy (NSE) Controller with 5 MB User Memory, 175 EtherNet/IP Devices, Conformally Coated
1756-L83E	5580 Controller with 10 MB User Memory, USB Port, 1 gigabit (Gb) Ethernet port, 250 EtherNet/IP Devices, 4 Character Alpha/Numeric Display.
1756-L83EP	5580E Process Controller with 10 MB User Memory, USB Port, 1 gigabit (Gb) Ethernet port, 250 EtherNet/IP Devices, 4 Character Alpha/Numeric Display.
1756-L83EK	5580 Controller with 10 MB User Memory,USB Port,1 gigabit (Gb) embedded Ethernet port, 100 EtherNet/IP Devices,4 Character Alpha/Numeric Display - Conformally Coated
1756-L83ES	5580, Safety Controller with 10MB Standard Memory & 5MB Safety Memory, USB Port, 1 gigabit (Gb) embedded Ethernet port, 250 EtherNet/IP Devices, 4 Character Alpha/Numeric Display
1756-L83ESK	5580, Safety Controller with 10MB Standard Memory & 5MB Safety Memory, USB Port, 1 gigabit (Gb) embedded Ethernet port, 250 EtherNet/IP Devices, 4 Character Alpha/Numeric Display - Conformaly Coated
1756-L83EXTS	5580, Harsh Environment Safety Controller with 10MB Standard Memory & 5MB Safety Memory, USB Port, 1 gigabit (Gb) embedded Ethernet port, 250 EtherNet/IP Devices, 4 Character Alpha/Numeric Display
1756-L83E-NSE	5580, No Stored Energy (NSE) Controller with 10 MB User Memory, 250 EtherNet/IP Devices, Conformally Coated
1756-L84E	5580 Controller with 20 MB User Memory, USB Port, 1 gigabit (Gb) Ethernet port, 250 EtherNet/IP Devices, 4 Character Alpha/Numeric Display.
1756-L84EK	5580 Controller with 20 MB User Memory,USB Port,1GB Ethernet port, 150 EtherNet/IP Devices,4 Character Alpha/Numeric Display - Conformally Coated

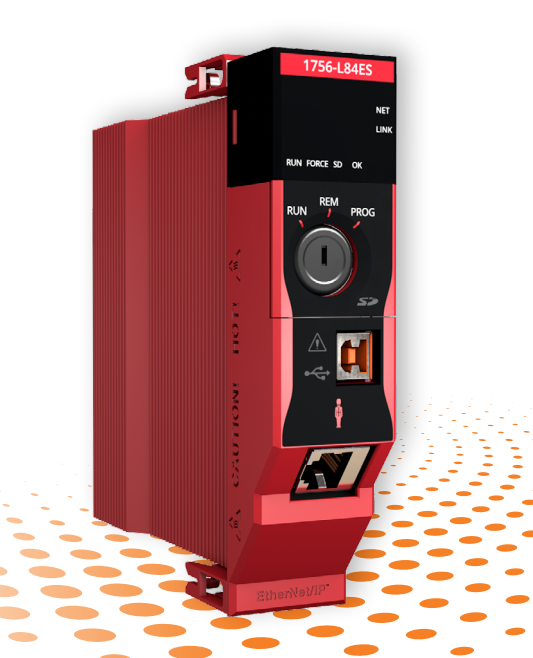

1756-L84ES	5580, Safety Controller with 20MB Standard Memory & 6MB Safety Memory, USB Port, 1 gigabit (Gb) embedded Ethernet port, 250 EtherNet/IP Devices, 4 Character Alpha/Numeric Display
1756-L84ESK	5580, Safety Controller with 20MB Standard Memory & 6MB Safety Memory, USB Port, 1 gigabit (Gb) embedded Ethernet port, 250 EtherNet/IP Devices, 4 Character Alpha/Numeric Display - Conformaly Coated
1756-L84EXTS	5580, Harsh Environment Safety Controller with 20MB Standard Memory & 6MB Safety Memory, USB Port, 1 gigabit (Gb) embedded Ethernet port, 250 EtherNet/IP Devices, 4 Character Alpha/Numeric Display
1756-L84E-NSE	5580, No Stored Energy (NSE) Controller with 20 MB User Memory, 250 EtherNet/IP Devices, Conformally Coated

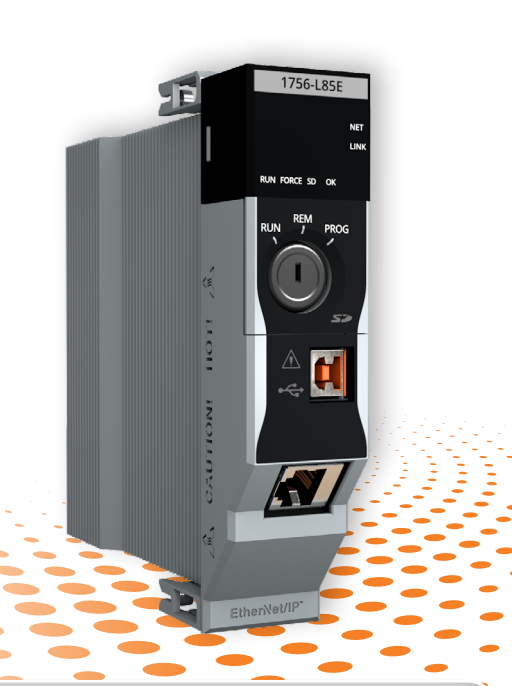

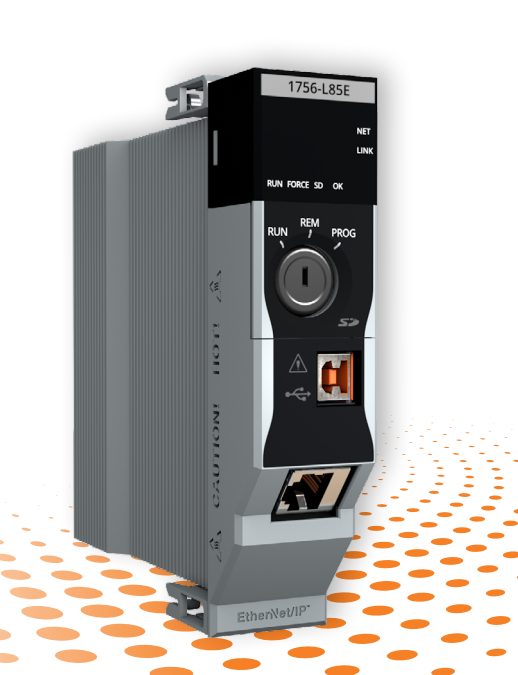

1756-L85E	5580 Controller with 40 MB User Memory, USB Port, 1 gigabit (Gb) Ethernet port, 300 EtherNet/IP Devices, 4 Character Alpha/Numeric Display.

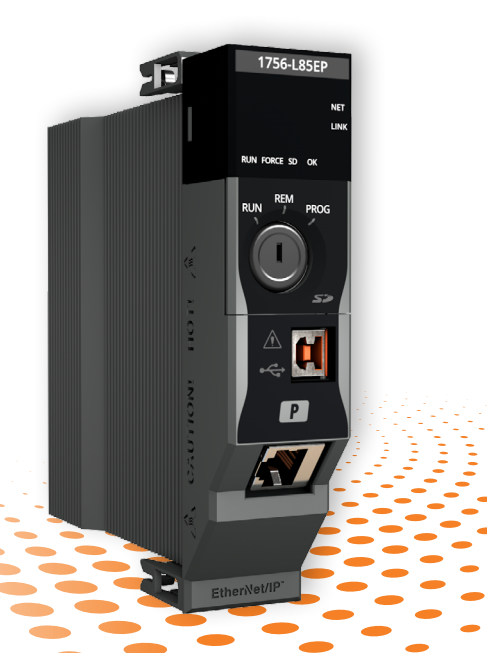

1756-L85EP	5580E Process Controller with 40 MB User Memory, USB Port, 1 gigabit (Gb) Ethernet port, 300 EtherNet/IP Devices, 4 Character Alpha/Numeric Display.
1756-L85EK	5580 Controller with 40 MB User Memory,USB Port,1 gigabit (Gb) embedded Ethernet port, 300 EtherNet/IP Devices,4 Character Alpha/Numeric Display - Conformally Coated
1756-L85E-NSE	5580, No Stored Energy (NSE) Controller with 40 MB User Memory, 300+ EtherNet/IP Devices, Conformally Coated
1756-L8SP	5580, Safety Partner Controller
1756-L8SPK	5580, Safety Partner Controller - Conformally Coated
